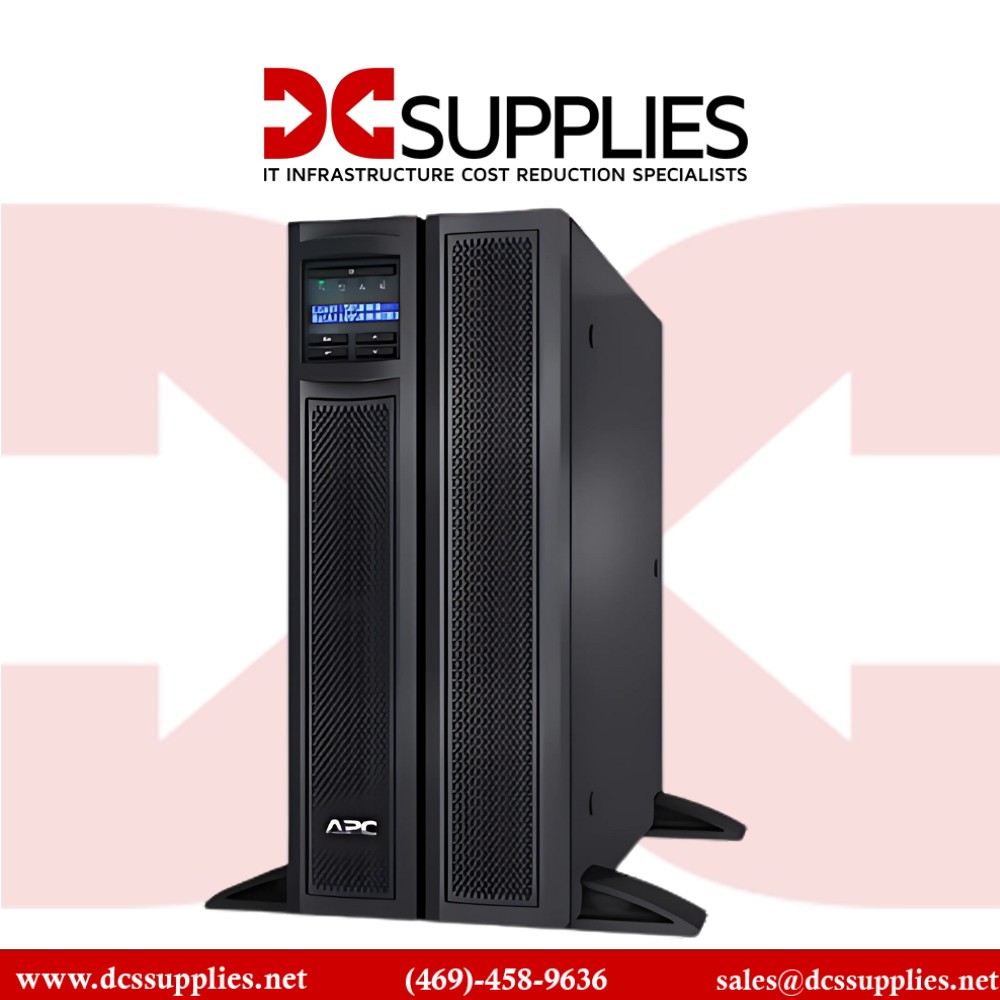

APC SMX2000RMLV2UNC Smart-UPS X, Line Interactive, 2000VA

New

In Stock

Reliable 2000VA UPS with extended runtime, network management, and pure sine wave
×




$2,689.90

  • New

Detailed Specifications

APC

SMX2000RMLV2UNC

Smart‑UPS X 2000 VA Line‑Interactive UPS

Designed for robust protection of servers, storage arrays, network hardware, and virtual environments, the APC SMX2000RMLV2UNC Smart‑UPS X delivers 2000 VA / 1800 W of pure sine wave backup power. Its line‑interactive design includes Automatic Voltage Regulation (AVR) to stabilize output voltage without resorting to battery usage, ensuring power continuity and prolonging battery life under fluctuating conditions.

Features

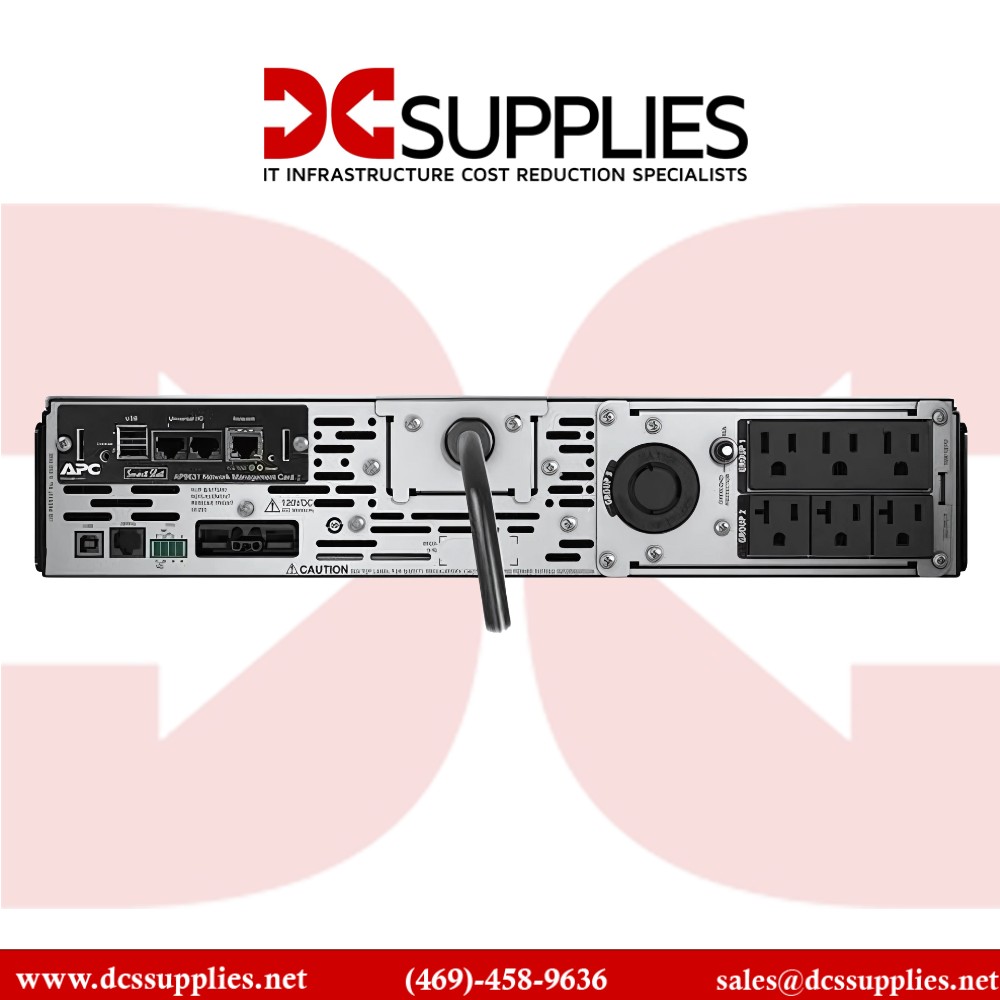

This rack/tower-convertible 2U Smart‑UPS comes equipped with a suite of seven outlets—three NEMA 5–15R, three NEMA 5–20R, and one NEMA L5–20R—allowing simultaneous connections for critical and non-critical equipment . It features user-selectable input ranging from 100 V to 127 V and includes a pre-installed Network Management Card (NMC) for remote UPS monitoring and control via Ethernet . The unit supports up to ten external battery packs, enabling runtime scaling for extended outages .

Advanced Options

An intuitive multi-function LCD provides real-time data on load, runtime, and system status. Integrated PowerChute software enables orderly shutdown for physical servers and VMs, safeguarding data integrity. Hot-swappable sealed lead‑acid batteries with approximately three-hour recharge simplify maintenance while maintaining system availability .

Product Key Features

  • 2000 VA / 1800 W pure sine wave output

  • Line‑interactive topology with AVR

  • User-selectable input range: 100–127 V

  • Seven NEMA outlets: 3×5–15R, 3×5–20R, 1×L5–20R

  • Pre-installed Network Management Card for remote management

  • Hot-swappable sealed lead-acid batteries; ~3-hour recharge

Reliability & Performance

Engineered for mission-critical deployments, the SMX2000RMLV2UNC offers enterprise-grade resilience and flexibility. The AVR feature maintains output stability, reducing unnecessary battery cycling. With its modular support for ten external battery packs, it delivers scalable runtime tailored to emergency protocols. The SmartSlot-equipped UPS ensures continuous power to essential systems while providing $150,000 worth of connected-equipment protection when properly registered .

Key Features (Bullet List)

  • 2000 VA / 1800 W output capacity

  • Pure sine wave inverter

  • Line‑interactive with AVR

  • 7 NEMA receptacles with mixed outputs

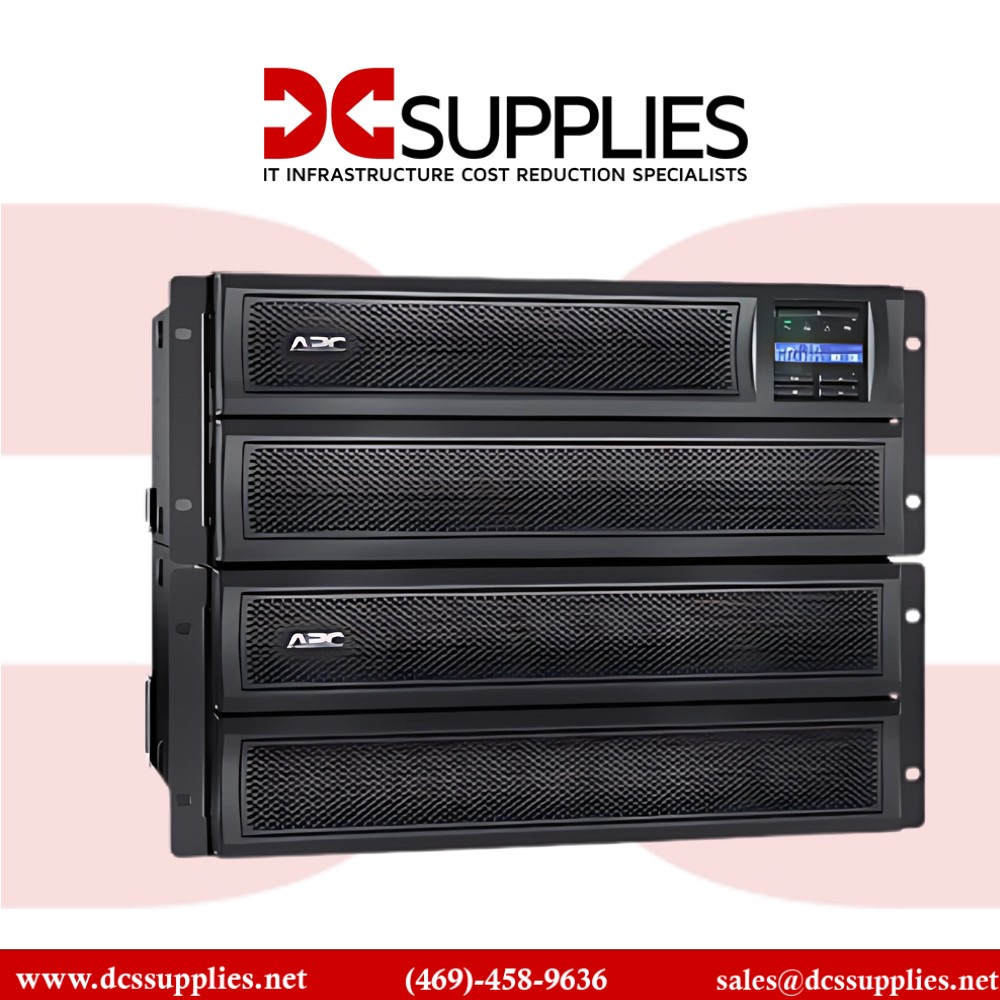

  • 2U rack/tower convertible

  • SmartSlot network management

  • Hot-swappable battery module

  • External battery support

  • LCD status interface

  • $150,000 equipment protection policy

Specifications :

SpecificationDetails
Model Number SMX2000RMLV2UNC
Product Type Line‑Interactive Rack/Tower UPS
Capacity 2000 VA / 1800 W
Output Waveform Pure sine wave
Input Voltage Range 100–127 V selectable
Input Connection NEMA 5–20P
Output Outlets 3×5–15R, 3×5–20R, 1×L5–20R
AVR Built-in, ±5 % typical voltage correction
Management Card Pre-installed Ethernet NMC for remote management
Battery Type Sealed lead-acid, user-replaceable, hot-swappable
Recharge Time Approx. 3 hours
External Battery Support Up to 10 SMX120RMBP2U packs
Display Multi-function LCD
Interfaces USB, Serial (RJ-45), SmartSlot-Network
Surge Energy Rating 540 J
Form Factor 2U rack/tower convertible; rack rails included
Dimensions (H×W×D) 3.3″ × 17″ × 26.3″ (85 × 432 × 667 mm)
Weight 84.6 lb (38.4 kg) net
Warranty 3-year UPS; 2-year battery; optional extended warranties
Equipment Protection Policy $150,000 lifetime
