Detailed Specifications

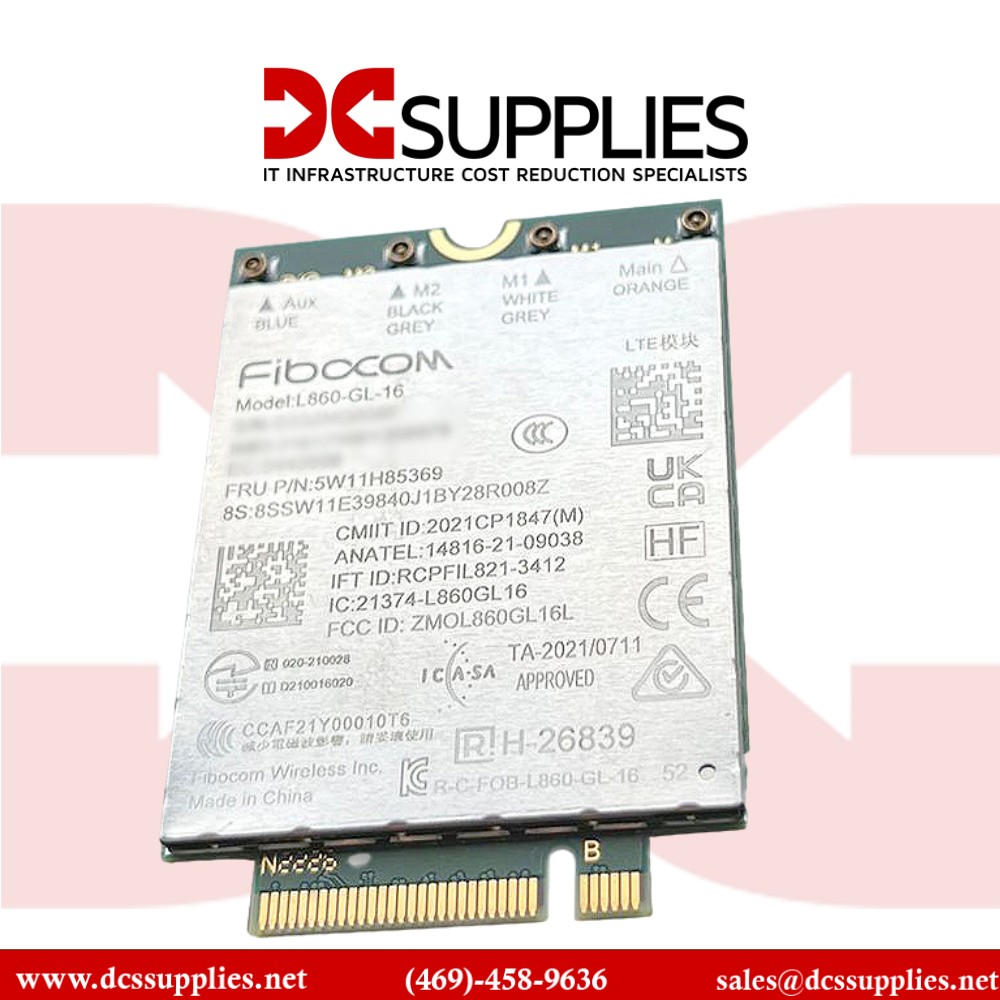

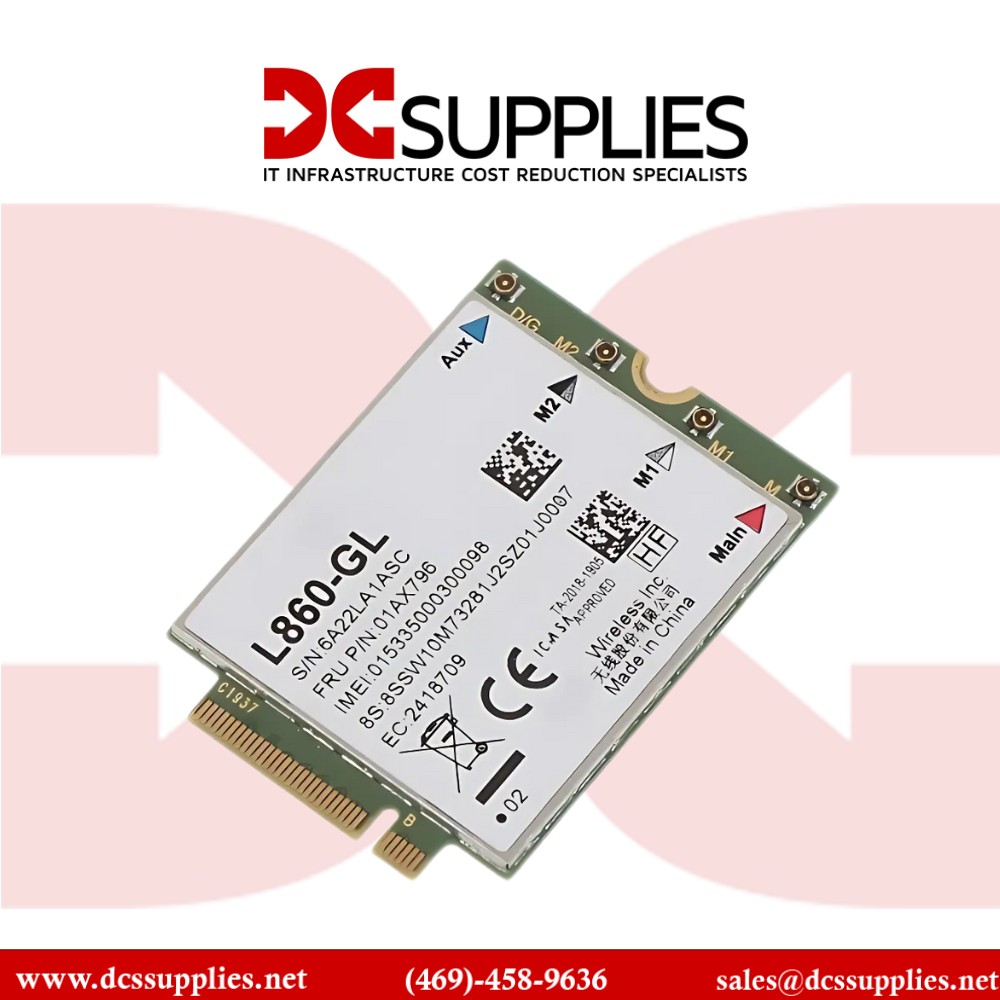

Lenovo 4XC1K20992 Net_Bo Fibocom L860 CAT16 4G WWAN A
Overview:
ThinkPad Fibocom L860 CAT16 4G LTE WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With a downlink speed of up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
WWAN |
| Host interface |
M.2 |
| Connectivity technology |
Wireless |
| Bandwidth |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Compatible products |
ThinkPad X1 Nano Gen 2 & X1 Yoga Gen 7 |
| Network |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| MU-MIMO |
Yes |
| Mobile network generation |
4G |
| Design |
|---|
| Compatible products |
ThinkPad X1 Nano Gen 2 & X1 Yoga Gen 7 |
| Certification |
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan. |
| Internal |
Yes |
| Component for |
PC/notebook |
| Antenna design |
Internal |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
1.18" (30 mm) |
| Depth |
1.65" (42 mm) |
| Height |
0.0906" (2.3 mm) |
| Weight |
0.219 oz (6.2 g) |
| Package width |
2.09" (53 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
6.97" (177 mm) |
| Package weight |
1.06 oz (30 g) |
| Packaging data |
|---|
| Package width |
2.09" (53 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
6.97" (177 mm) |
| Package weight |
1.06 oz (30 g) |
| Performance |
|---|
| Compatible products |
ThinkPad X1 Nano Gen 2 & X1 Yoga Gen 7 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Certificates |
|---|
| Certification |
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan. |
