Detailed Specifications
Lenovo 4XC1K20993 network card Internal WWAN 1000 Mbit/s
Description

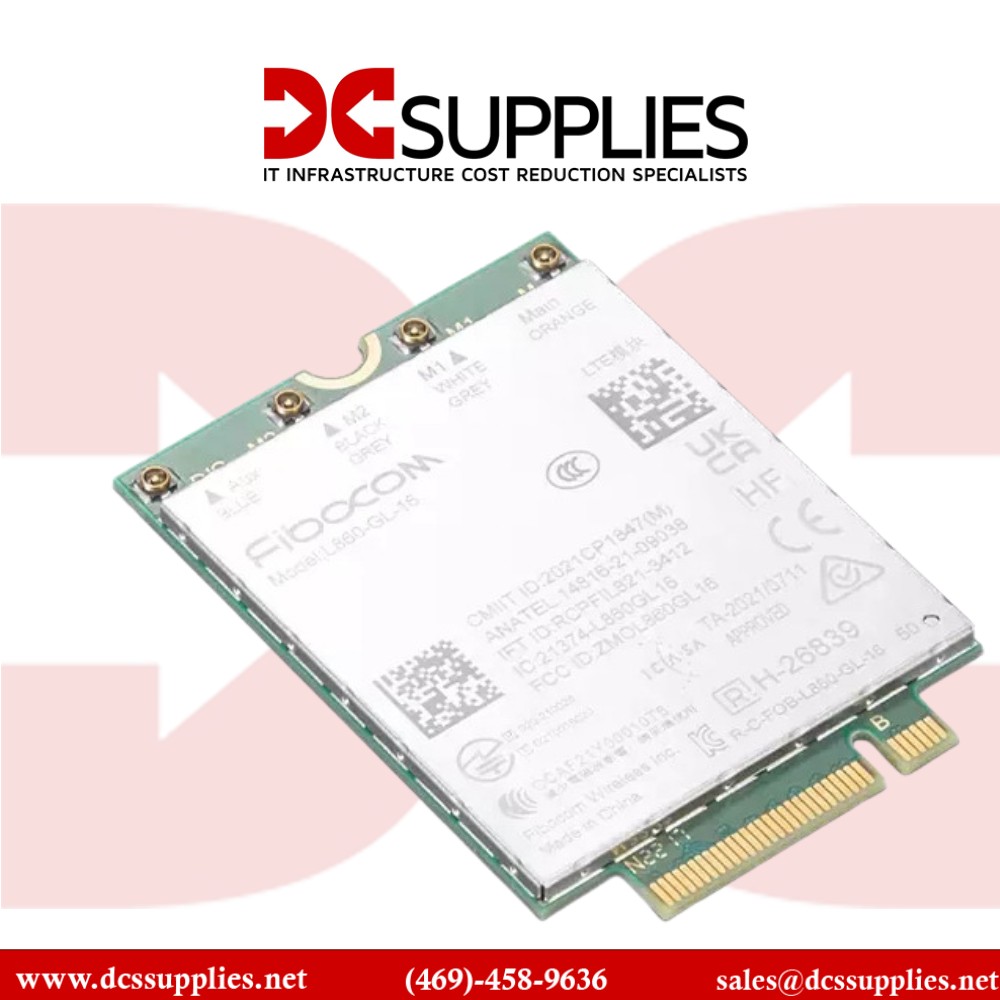

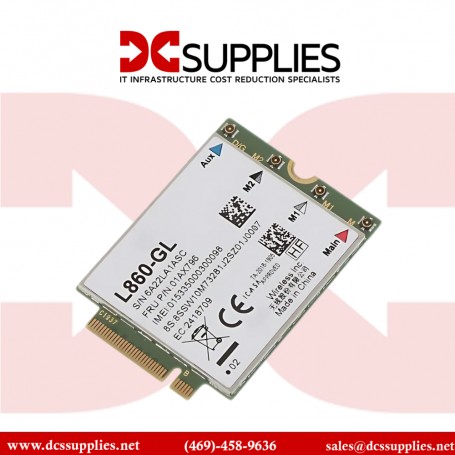

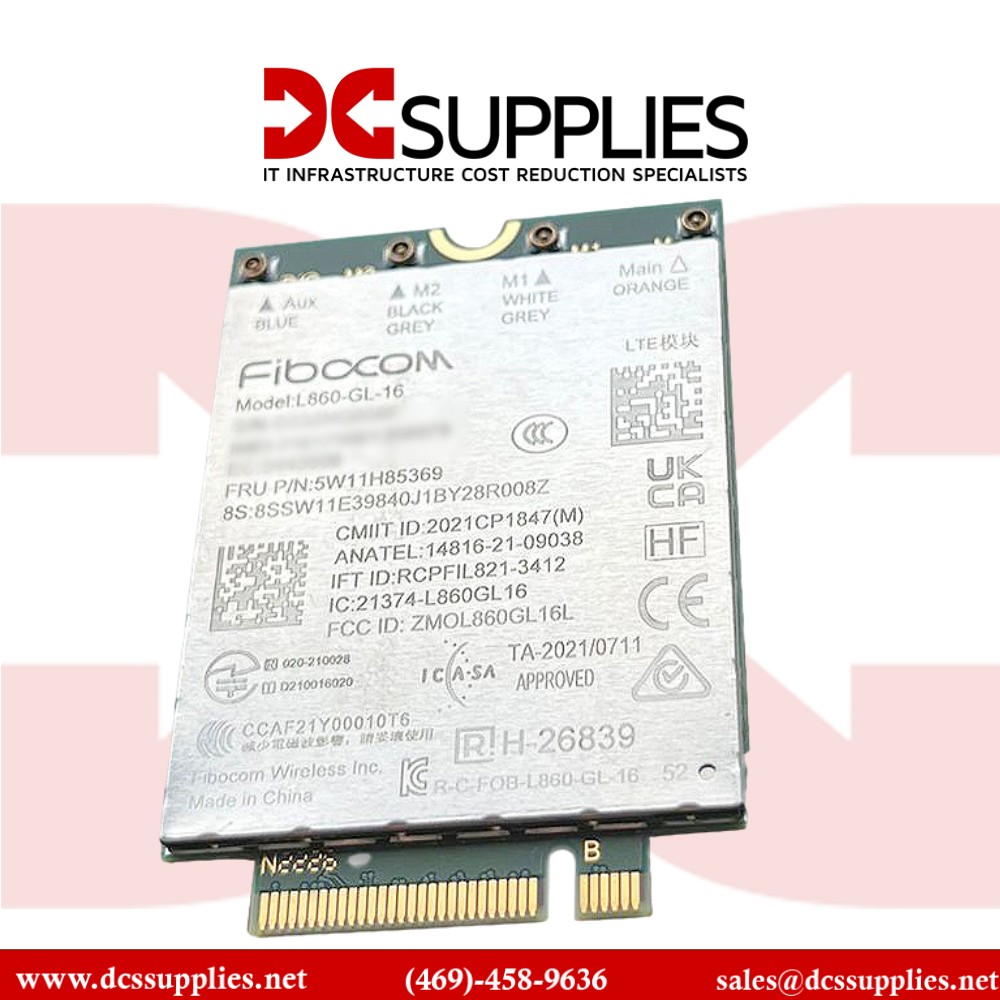

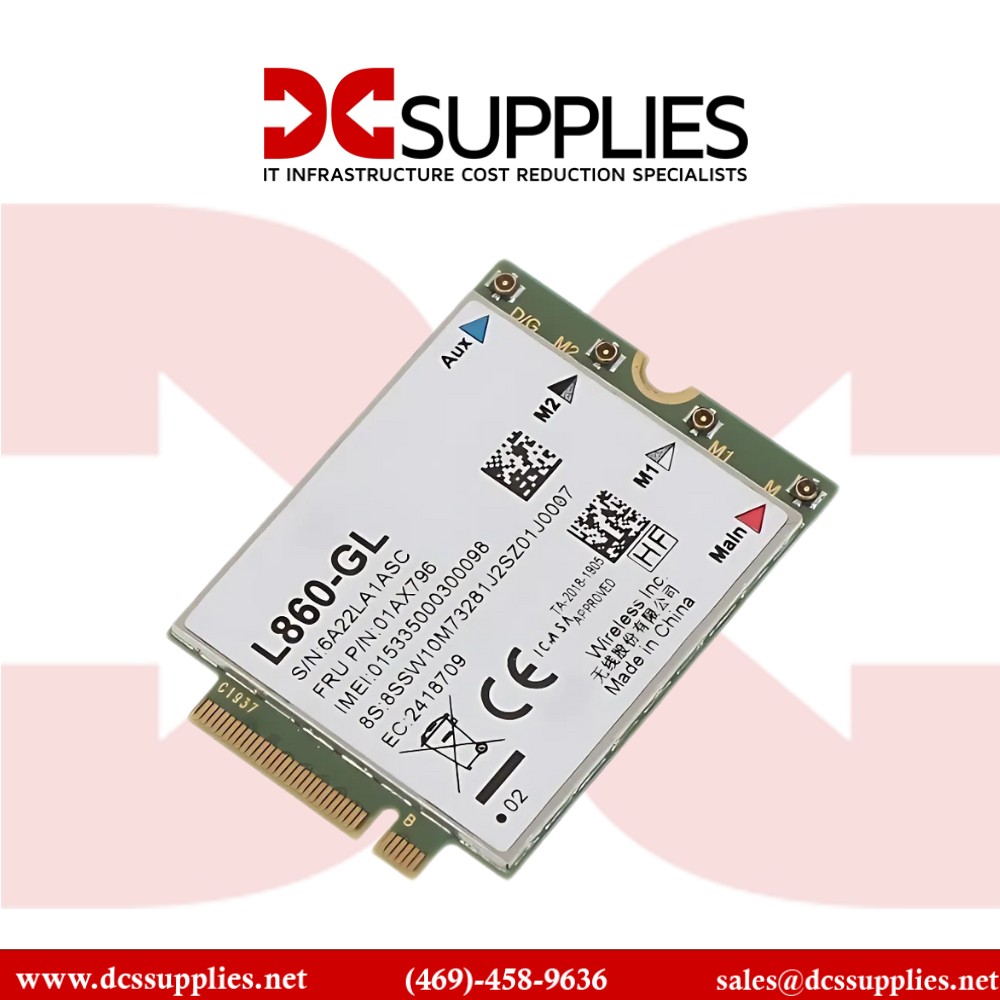

ThinkPad Fibocom L860 CAT16 4G LTE WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With a downlink speed of up to 1Gbps and uplink speed of up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
WWAN |
| Host interface |
M.2 |
| Connectivity technology |
Wireless |
| Bandwidth |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Wireless LAN features |
|---|
| 3G standards |
WCDMA |
| 4G standard |
LTE-TDD & LTE-FDD |
| Technical details |
|---|
| Compatible products |
ThinkPad X1 Carbon Gen 10 |
| Network |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| 3G standards |
WCDMA |
| 4G standard |
LTE-TDD & LTE-FDD |
| MU-MIMO |
Yes |
| Mobile network generation |
4G |
| Design |
|---|
| Compatible products |
ThinkPad X1 Carbon Gen 10 |
| Certification |
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan. |
| Internal |
Yes |
| Component for |
PC/notebook |
| Antenna design |
Internal |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 65 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Width |
1.18" (30 mm) |
| Depth |
1.65" (42 mm) |
| Height |
0.0906" (2.3 mm) |
| Weight |
0.219 oz (6.2 g) |
| Package width |
2.09" (53 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
6.97" (177 mm) |
| Package weight |
1.06 oz (30 g) |
| Packaging data |
|---|
| Package width |
2.09" (53 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
6.97" (177 mm) |
| Package weight |
1.06 oz (30 g) |
| Performance |
|---|
| Compatible products |
ThinkPad X1 Carbon Gen 10 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Certificates |
|---|
| Certification |
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan. |
