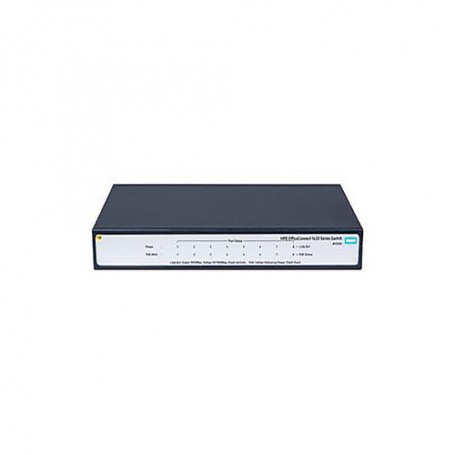

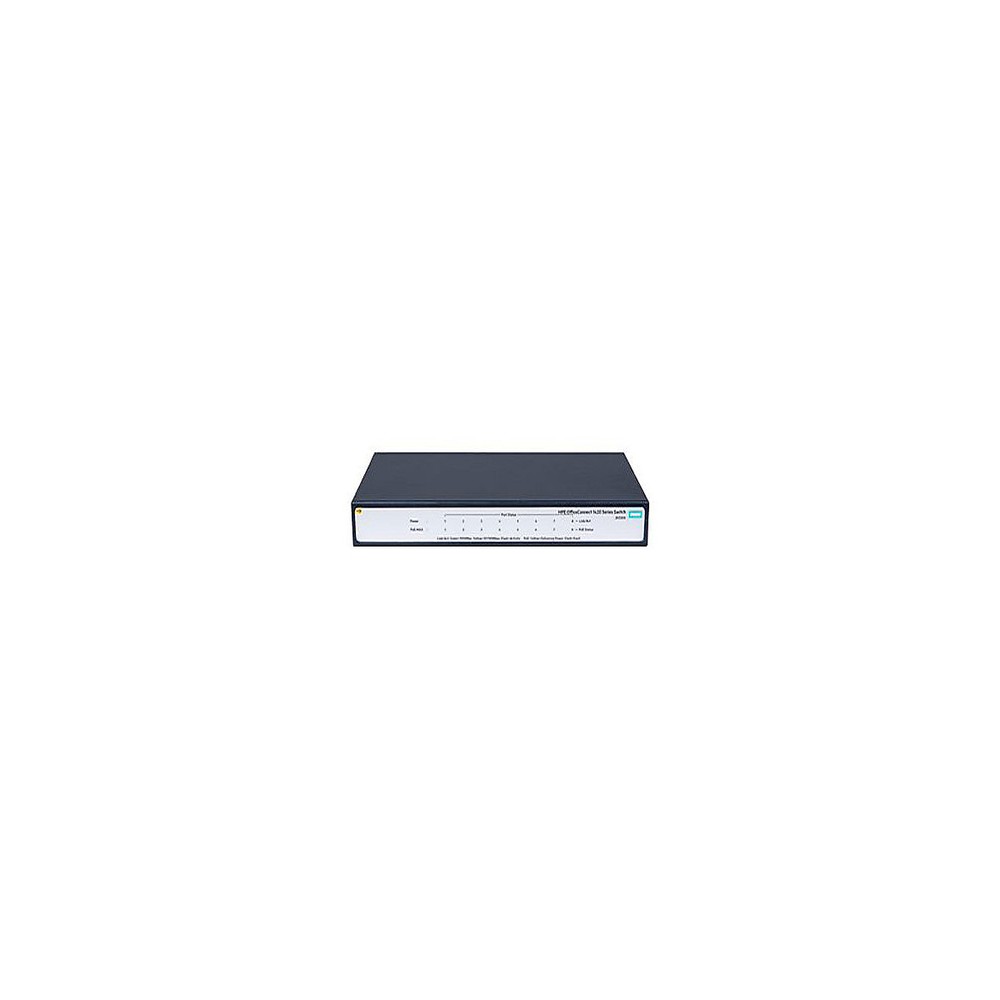

HPE OfficeConnect 1420 8G PoE+ - switch - 8 ports - unmanaged View larger

HPE OfficeConnect 1420 8G PoE+ - switch - 8 ports - unmanaged

JH330A#ABA

New

In Stock

HPE OfficeConnect 1420 8G PoE+ - switch - 8 ports - unmanaged
×




HP, HPE, HPE OfficeConnect 1420 8G, HPE OfficeConnect 1420 8G switch, HPE OfficeConnect 1420 8 ports s, HP JH330A ABA, HPE JH330A ABA, JH330A ABA

$129.00

Detailed Specifications

HPE OfficeConnect 1420 8G PoE+ - switch - 8 ports - unmanaged

The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage. All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days.

Technical Specifications

Main Features
  • Switch
  • unmanaged
  • 8 x 10/100/1000
  • desktop
  • PoE+ (64 W)

  • Dimensions & Weight
  • 4.1 in
  • 1.1 in
  • 24.69 oz
  • 9.2 in

  • Environmental Parameters
  • 15 - 95% (non-condensing)
  • 15 - 95% (non-condensing)
  • 104 °F
  • 158 °F
  • 32 °F
  • -40 °F

  • Flash Memory
  • 1.5 MB

  • Header
  • HPE
  • PC
  • United States
  • English
  • Aruba Instant AP
  • 1420 8G PoE+
  • 1
  • HPE OfficeConnect

  • Interface Provided
  • RJ-45
  • 8
  • 1000Base-T

  • Miscellaneous
  • Gray, White
  • CISPR 22, CISPR 24, CSA 22.2 No. 60950, EN 60950, EN55022, EN55024, FCC Part 15 B Class A, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, Plug and Play, UL 60950-1

  • Networking
  • IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DiffServ Code Point (DSCP) support, Fanless, Flow control, Full duplex capability, Half duplex mode, Power-saving mode, Quality of Service (QoS)
  • Desktop
  • 9216 bytes
  • 4096 entries
  • No
  • 64 W
  • 8
  • PoE+
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch

  • Performance
  • Latency (100 Mbps)
  • 3 µs
  • Latency (1000Base-T)
  • 2.6 µs
  • Switching capacity
  • 16 Gbps
  • Throughput (64-byte packet size)
  • 11.8 Mpps

  • Ports
  • 8
  • 10/100/1000

  • Power Device
  • 50/60 Hz
  • AC 120/230 V
  • 80 Watt
  • Internal power supply

  • Service
  • Lifetime
  • Limited warranty

  • Service & Support
  • Limited lifetime warranty
