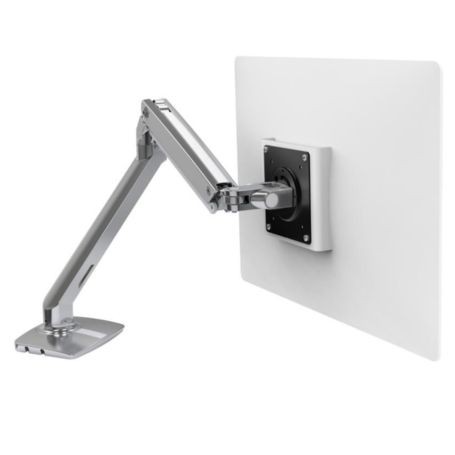

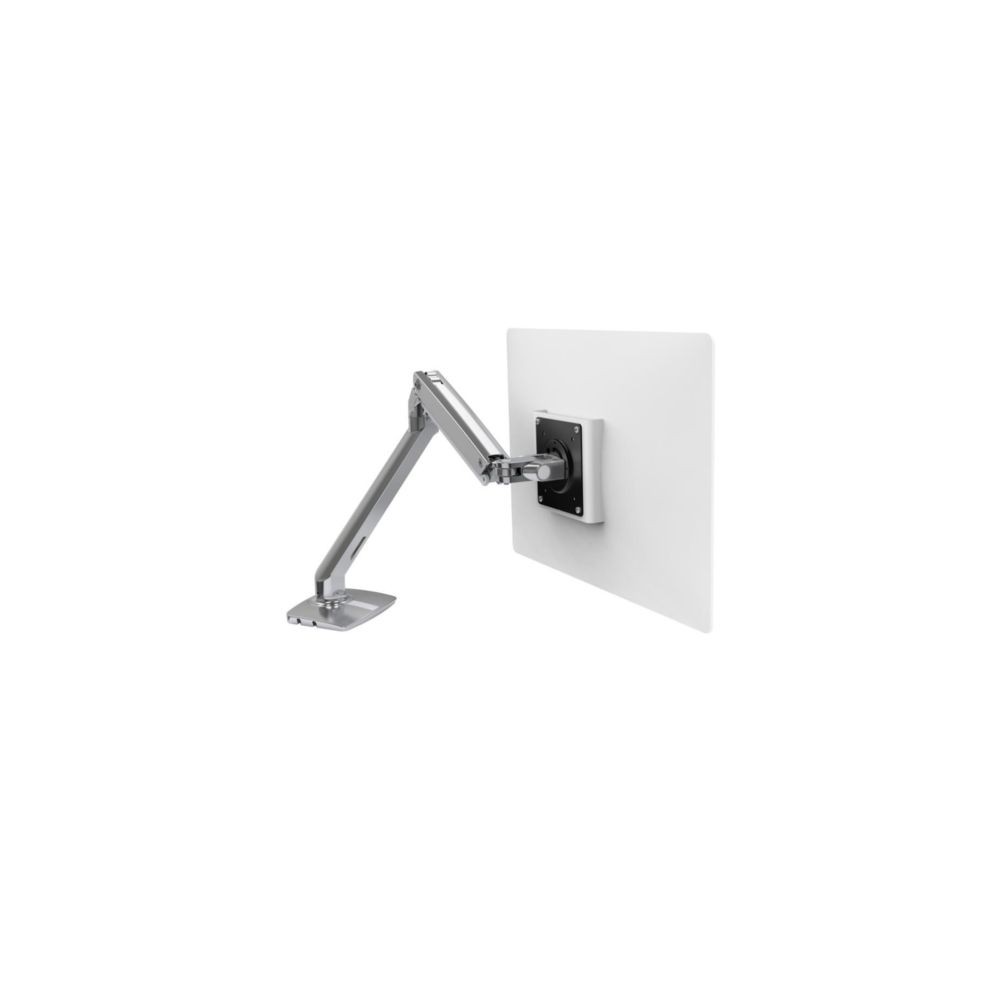

The Ergotron 45-486-026 MXV Desk Monitor Arm combines a slim, modern design with flexible monitor positioning for a more organized and comfortable workstation. Finished in polished aluminum, this single-monitor desk mount supports compatible displays weighing 7–20 lb (3.2–9.1 kg) and provides 13 inches of height adjustment.
Designed for office desks, professional workstations, and space-conscious environments, the MXV features Constant Force™ technology for smooth adjustments, integrated cable management, and a compact desk-clamp design.
Key Features
- Flexible monitor positioning: Adjust screen height, tilt, pan, and rotation to suit your workstation and viewing preferences.
- 13-inch height adjustment: Raise or lower a compatible monitor to help achieve a comfortable viewing position.
- Supports displays up to 34 inches: Designed for monitors weighing between 7 and 20 lb (3.2–9.1 kg).
- Compact polished aluminum design: The streamlined arm helps maintain a tidy desk setup and folds back toward its base when not in use.
- Integrated cable management: Helps organize monitor cables along the arm for a cleaner workstation.
Adjustable and Space-Saving Design
The MXV monitor arm provides up to 13 inches (33 cm) of height adjustment and extends the display up to 22.2 inches (56 cm) from the back of the base to the VESA mounting plate. Its articulated design makes it easier to reposition the screen for different tasks, while the base rotation stop can help prevent the arm from contacting nearby walls or desks.
Desk Mounting and Monitor Compatibility
The included two-piece desk clamp attaches to a desk surface measuring approximately 0.47–1.25 inches (12–32 mm) thick. The monitor attachment supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm. Check your monitor's weight, dimensions, VESA pattern, and desk thickness before installation.
An optional grommet mount is available for compatible through-hole desk installations. The MXV can also be configured to support a laptop using the separately purchased Ergotron Notebook Tray 50-193-200.
What's Included
- Ergotron MXV monitor arm assembly
- Base and two-piece desk clamp
- Mounting hardware
DC Supplies Product Note
The Ergotron MXV Desk Monitor Arm is a practical option for users seeking a polished aluminum monitor mount with adjustable positioning and a compact footprint. Confirm display compatibility and desk mounting requirements before ordering to ensure the arm suits your setup.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-486-026 |
|---|
| Product Type | Single Desk Monitor Arm |
|---|
| Product Family | MXV |
|---|
| Color / Finish | Polished Aluminum |
|---|
| Supported Screen Size | Up to 34 inches |
|---|
| Monitor Weight Capacity | 7–20 lb (3.2–9.1 kg) |
|---|
| Height Adjustment | 13 inches (33 cm) |
|---|
| Tilt Range | 180° total range |
|---|
| Pan Range | 360° between extension and arm; 180° at the base with the rotation stop engaged |
|---|
| Display Rotation | 360° |
|---|
| Maximum Extension Reach | 22.2 inches (56 cm), from the back of the base to the VESA mounting plate |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Desk Clamp Thickness | 0.47–1.25 inches (12–32 mm) |
|---|
| Cable Management | Integrated |
|---|
| Adjustment Technology | Constant Force™ |
|---|
| Warranty | 10 years |
|---|
Frequently Asked Questions
1. Which monitors are compatible with the Ergotron 45-486-026?
The arm is designed for displays up to 34 inches that weigh between 7 and 20 lb (3.2–9.1 kg) and use a VESA MIS-D 75 × 75 mm or 100 × 100 mm mounting pattern.
2. How much height adjustment does this monitor arm provide?
The MXV provides up to 13 inches (33 cm) of height adjustment.
3. Can the monitor be rotated?
Yes. The arm supports 360° display rotation. Its pan movement and base rotation are also adjustable, with a rotation stop available to help limit movement at the base.
4. What desk thickness does the included clamp support?
The included two-piece desk clamp fits desk surfaces approximately 0.47–1.25 inches (12–32 mm) thick. Verify the thickness and mounting suitability of your desk before installation.
5. Can I use this arm with a laptop?
Yes. The MXV can be configured for laptop use with the separately purchased Ergotron Notebook Tray, part number 50-193-200.
