Detailed Specifications

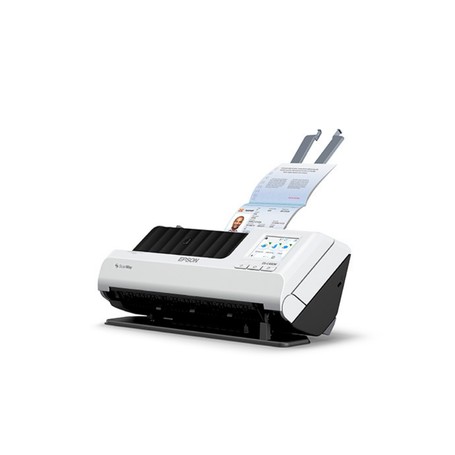

Epson B11B269202 DS-C480W Wireless Compact Desktop Document Scanner
Overview :
The Epson B11B269202 (DS-C480W) is a commercial-grade, wireless sheet-fed desktop document scanner engineered for corporate branch offices, clinical registration desks, financial consulting groups, and distributed workforces. Designed to optimize high-density office configurations, this hardware features a vertical paper feed loop path that reduces total physical desktop footprint by up to 60 percent compared to conventional flatbed or tray-extended scanners. It enables operators to perform real-time data ingestion directly at customer-facing terminals without occupying critical counter real estate.
The device integrates a dual-sensor Contact Image Sensor (CIS) engine paired with a 3-color RGB LED array, yielding a 600 dpi optical capture resolution. Operating via its single-pass duplex architecture, the mechanical path scans double-sided documents simultaneously at speeds up to 30 pages per minute (ppm) or 60 images per minute (ipm). The layout features a 20-sheet automatic document feeder (ADF) alongside a reclining straight-through selector switch, allowing the physical path to accept thick rigid passports, driver's licenses, and laminated identity cards without jamming.
For agile enterprise integration, the DS-C480W incorporates native dual-band Wi-Fi (2.4 GHz and 5 GHz) and standard high-speed USB Type-C connectivity. Built on Epson's ScanWay technology, the device enables PC-free standalone operation, allowing staff to route secure digital files directly to network emails, local SFTP servers, or validated cloud repositories via the integrated 2.4-inch color LCD touchscreen interface. It is driven by industry-standard TWAIN and ISIS protocols for compliance with enterprise electronic health records (EHR) and document management systems.
Key Features :
Vertical paper loop assembly preserves 60% of active desk workspace.
Built-in ScanWay tech drives PC-free scanning directly to cloud networks.
Customizable 2.4-inch color touchscreen streamlines multi-department jobs.
Dual-band Wi-Fi connectivity supports seamless mobile and terminal data sharing.
Single-pass duplex alignment processes 2-sided files at a rapid 60 ipm.
Specifications :
| Specification | Details |
| Brand | Epson |
| Part Number | B11B269202 |
| Product Type | Wireless Compact Desktop Sheet-Fed Scanner |
| Scan Sensor Type | Dual Contact Image Sensor (CIS) |
| Optical Resolution | 600 dpi |
| Interpolated Resolution | 1200 dpi |
| Simplex Scan Speed | 30 ppm (Color / Monochrome / Grayscale at 300 dpi) |
| Duplex Scan Speed | 60 ipm (Color / Monochrome / Grayscale at 300 dpi) |
| ADF Capacity | 20 Sheets |
| Flexible Feed Path | Vertical Loop (Standard Paper) / Straight Path (Cards & Passports) |
| Media Sizes Supported | Max: 8.5 x 220 Inches; Min: 2 x 2 Inches |
| Network Connectivity | Wi-Fi 5 (Dual-Band 802.11ac), Wi-Fi Direct |
| Local Interface Port | 1x USB 2.0 Type-C |
| Operator Interface | 2.4 Inch Color LCD Touchscreen Display |
| Daily Volumetric Rating | 3,500 Sheets Peak Daily Duty Cycle |
| Software Driver Stack | TWAIN, ISIS, WIA, SANE, ICA |
| External Storage Feed | Direct Scan to USB Flash Drive (Up to 2TB Capacity) |
