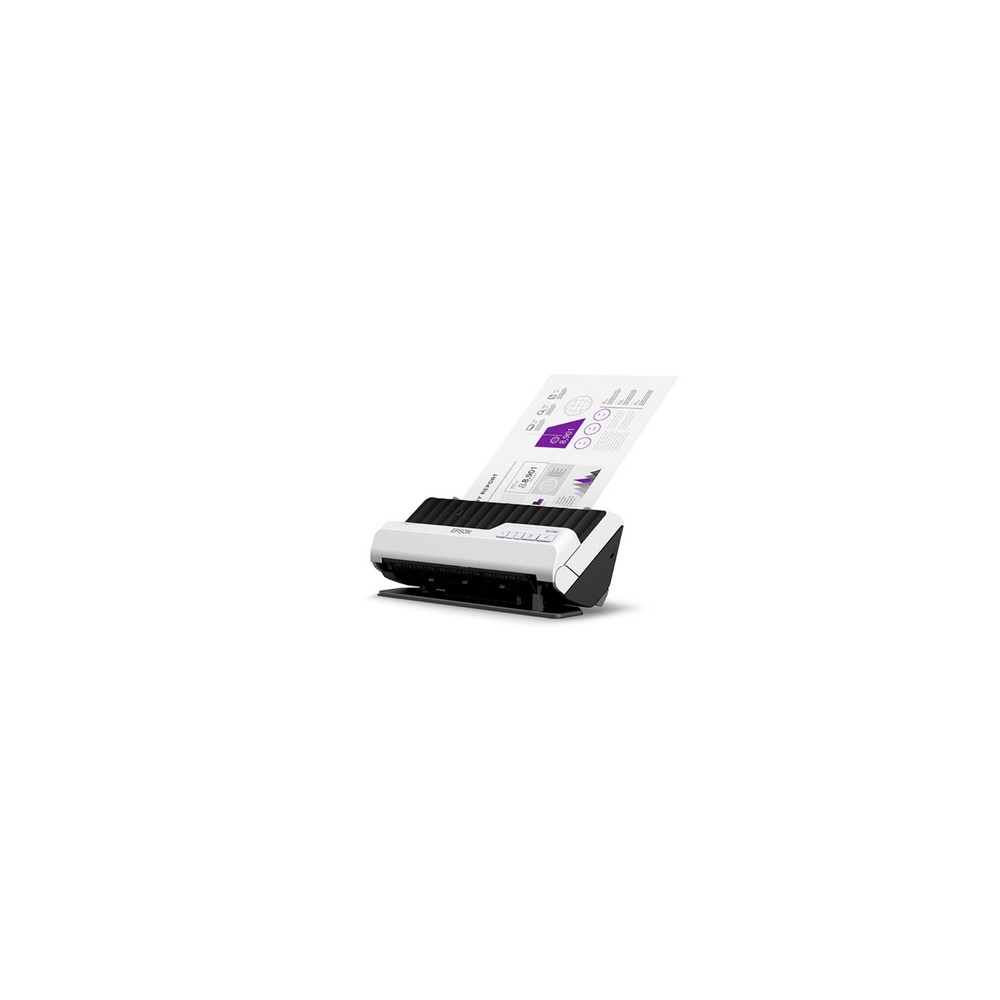

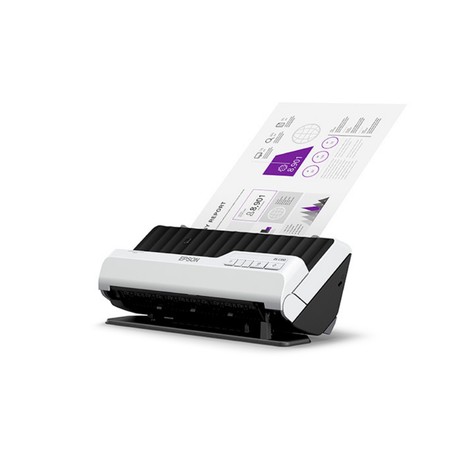

Epson B11B272201 DS-C330 Compact Desktop Document Scanner

Overview :

The Epson B11B272201 (DS-C330) is a high-performance commercial desktop sheet-fed document scanner engineered for corporate workspaces, financial institutions, healthcare administration, and legal reception desks. Designed to resolve severe desktop real estate constraints, this unit implements a vertical paper feed loop system that saves up to 60 percent of usable space compared to traditional flatbed or extended-tray document scanners. It provides data entry operators with a fast, non-disruptive method to digitize varied incoming media without disrupting adjacent terminal hardware.

The imaging core integrates dual Contact Image Sensors (CIS) with a 3-color RGB LED array, enabling single-pass duplex scanning at speeds up to 30 pages per minute (ppm) or 60 images per minute (ipm) at 300 dpi. A built-in 20-sheet automatic document feeder (ADF) handles mixed-media batches, supported by intelligent imaging technology that executes automatic cropping, blank page deletion, background removal, and paper skew correction. For rigid substrates, the physical chassis reclines back into a straight-through optical alignment path, enabling trouble-free capturing of laminated ID cards, corporate badges, and thick passports.

The scanner connects natively via a high-speed USB Type-C interface and relies on robust TWAIN and ISIS software drivers to integrate with existing electronic document management systems (EDMS). The hardware is built for continuous enterprise operation, supporting a peak daily duty cycle of up to 5,000 sheets. Note that this scanner relies on host-based or network processing systems via USB and does not feature a standalone mechanical touchscreen interface or built-in standalone Ethernet networking ports.

Key Features :

• Vertical feed alignment system saves up to 60% of physical desk space.

• Single-pass duplex engine digitizes double-sided paperwork at 60 ipm.

• Reclining straight-through feed path accepts rigid plastic IDs and passports.

• Built-in ultrasonic sensor prevents multi-sheet misfeeds and document damage.

• Dual TWAIN and ISIS drivers ensure plug-and-play network software matching.

Specifications :
