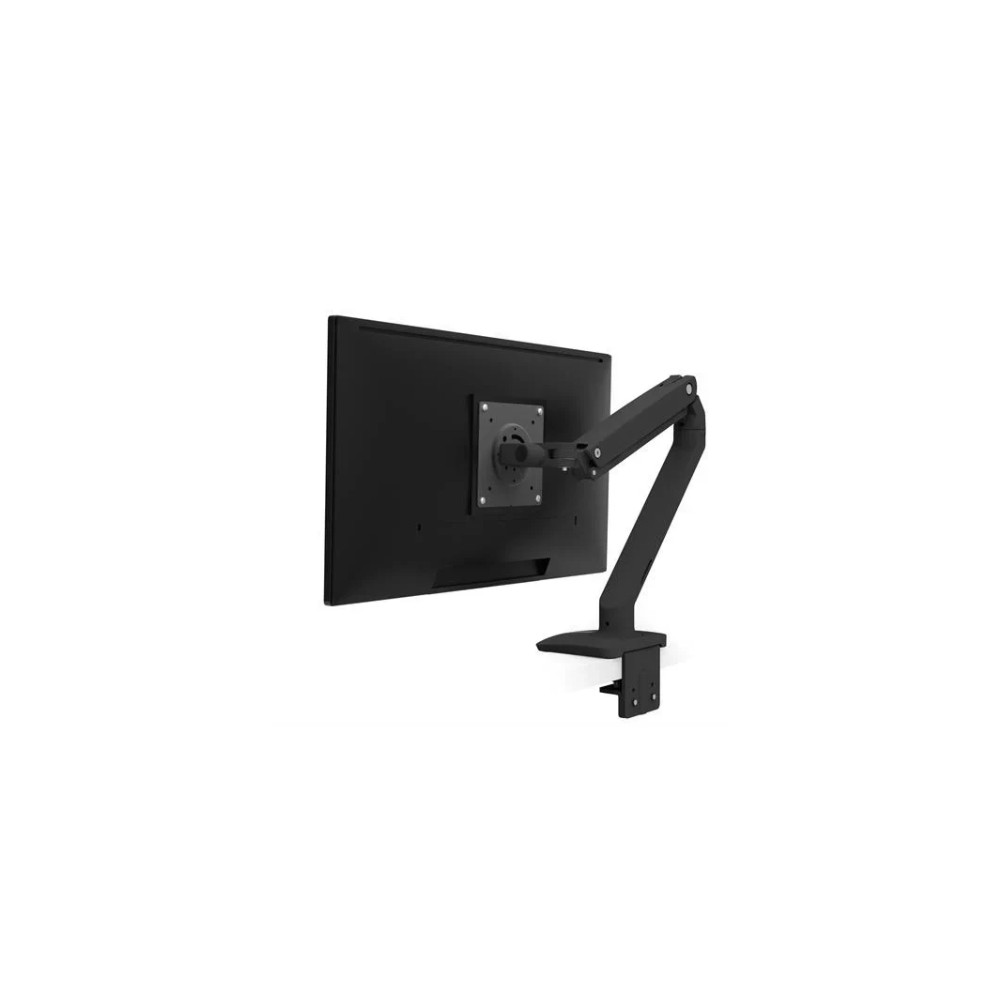

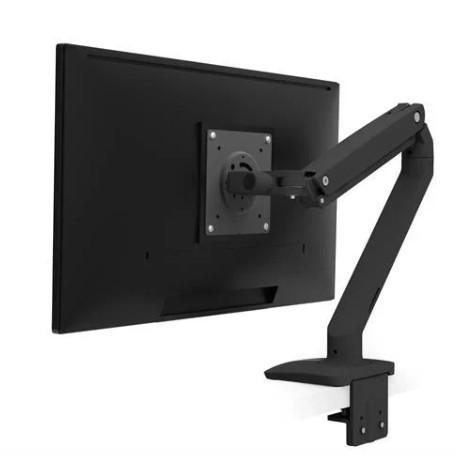

Ergotron 45-486-224 – MXV Desk Monitor Arm, Matte Black
Overview
The Ergotron 45-486-224 MXV Desk Monitor Arm is a single-monitor desk mounting solution with a slim V-shaped design and matte black finish. It provides adjustable positioning for professional workstations while maintaining a compact desktop footprint.
Technical Information
The MXV Desk Monitor Arm supports displays from 7–20 lb (3.2–9.1 kg) and provides 13 inches (33 cm) of height adjustment. The arm supports 180° tilt, 360° pan and 360° rotation. It uses VESA MIS-D mounting with 75 × 75 mm and 100 × 100 mm display patterns.
Compatibility
The 45-486-224 is designed for a single display up to 34 inches and mounts to a desktop using the included two-piece clamp. The clamp accommodates desktop surfaces from 0.47 to 1.25 inches (12–32 mm) thick. An optional Ergotron 98-110 Grommet Mount can be used for through-desk installation.
Key Features
- Supports one display up to 34 inches.
- Supports monitor weights from 7–20 lb (3.2–9.1 kg).
- Provides 13 inches (33 cm) of vertical height adjustment.
- Offers 180° tilt, 360° pan and 360° rotation.
- Includes a two-piece desk clamp for 12–32 mm thick desktop surfaces.
Applications
The MXV Desk Monitor Arm is suited to office workstations, engineering desks, professional work environments and other desktop applications requiring flexible single-monitor positioning. Its compact design is useful where workspace and desk clearance are limited.
DC Supplies Product Note
Before deployment, verify the display weight, VESA mounting pattern and desktop thickness against the arm's specifications. The supported display weight is 7–20 lb, and the 34-inch rating represents the specified maximum display size. An optional grommet mounting configuration is available using Ergotron 98-110.
Specifications
| Brand | Ergotron |
|---|
| MPN | 45-486-224 |
|---|
| Product Type | Single Monitor Desk Arm |
|---|
| Series | MXV |
|---|
| Finish | Matte Black |
|---|
| Monitor Capacity | 1 display |
|---|
| Maximum Display Size | 34 in |
|---|
| Display Capacity | 7–20 lb (3.2–9.1 kg) |
|---|
| Vertical Adjustment | 13 in (33 cm) |
|---|
| Tilt | 180° |
|---|
| Pan | 360° |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Extension Range | 17.8 in (45 cm) |
|---|
| Maximum Extension Reach | 22.2 in (56 cm) |
|---|
| Desk Clamp Thickness | 0.47–1.25 in (12–32 mm) |
|---|
| Optional Grommet Mount | 98-110 |
|---|
| Product Weight | 5.7 lb |
|---|
| Shipping Weight | 8.6 lb |
|---|
| Shipping Dimensions | 34.4 × 9.3 × 7.3 in (87.5 × 23.5 × 18.5 cm) |
|---|
| Included | Fully assembled arm, two-piece desk clamp and mounting hardware |
|---|
| Warranty | 10 years |
|---|
FAQs
How many monitors does the Ergotron 45-486-224 support?
The 45-486-224 is designed for one monitor.
What monitor size is supported?
The specified maximum display size is 34 inches.
What monitor weight can it support?
The arm supports displays weighing 7–20 lb (3.2–9.1 kg).
What VESA patterns are supported?
The arm supports VESA MIS-D patterns of 75 × 75 mm and 100 × 100 mm.
What desktop thickness does the included clamp support?
The two-piece desk clamp supports desktop surfaces from 0.47 to 1.25 inches (12–32 mm) thick.
Can the arm be mounted through a grommet hole?
Yes. Ergotron specifies the optional 98-110 Grommet Mount for through-desk installation.
What is the height adjustment range?
The MXV Desk Monitor Arm provides 13 inches (33 cm) of vertical adjustment.
What is the warranty?
Ergotron specifies a 10-year warranty for the 45-486-224.
