Overview

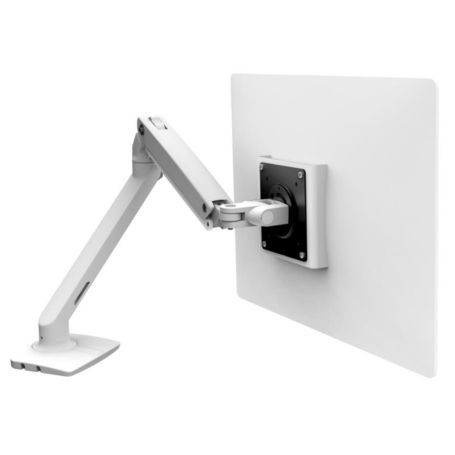

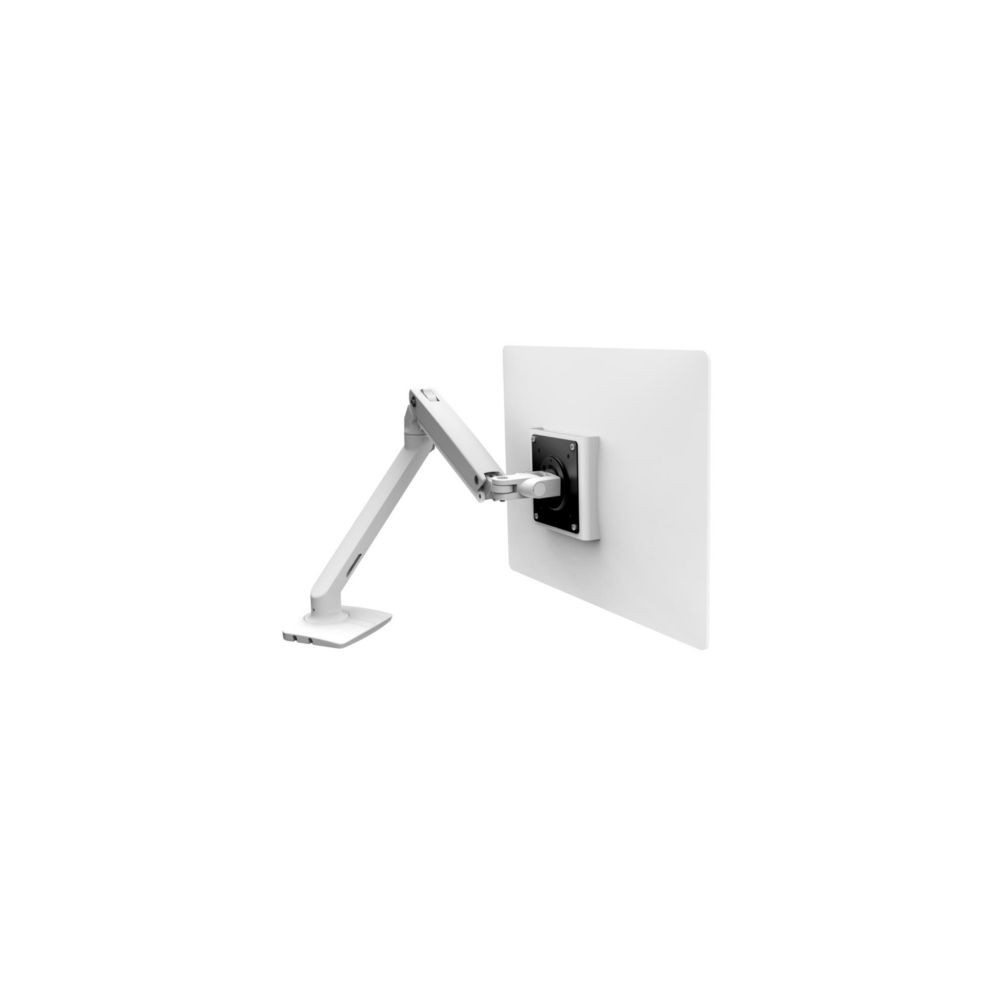

The Ergotron 45-486-216 MXV Desk Monitor Arm is a white single-monitor desk mount with a slim V-shaped design. It supports displays up to 34 inches and weighing 7–20 lb (3.2–9.1 kg), combining height adjustment, tilt, pan, and rotation in a compact desktop mounting system.
Monitor Support
The arm is designed for one display up to 34 inches with a supported monitor weight range of 7–20 lb (3.2–9.1 kg). The VESA interface supports 75 x 75 mm and 100 x 100 mm mounting patterns.
Adjustment and Movement
The MXV provides 13 inches (33 cm) of height adjustment. The monitor can tilt through 180°, pan through 360°, and rotate through 360°. The base incorporates a rotation stop that can limit movement to help prevent the arm from contacting nearby desks or walls.
Desk Mounting
The standard two-piece desk clamp mounts to work surfaces from 0.47 to 1.25 inches (12–32 mm) thick. The arm can extend the display up to 22.2 inches (56 cm) from the back of the base to the VESA mounting plate, with an arm extension range of approximately 17.8 inches (45 cm).
Cable Management
The MXV incorporates cable management within the arm to help route monitor cables while maintaining the slim profile of the mounting system.
Key Features
- Supports one display up to 34 inches and 20 lb
- 13-inch (33 cm) height adjustment range
- 180° tilt with 360° pan and 360° rotation
- VESA 75 x 75 mm and 100 x 100 mm compatibility
- Two-piece desk clamp with integrated cable management
Applications
The 45-486-216 is designed for single-monitor desktop workstations where a compact arm with substantial display adjustment is required. Its slim profile and desk-clamp mounting make it suitable for workspaces where desk area and monitor positioning are important considerations.
DC Supplies Product Note
The exact 45-486-216 is the white MXV Desk Monitor Arm with the standard two-piece desk clamp. It should not be confused with the 45-625-216 MXV configuration, which uses a low-profile top-mount C-clamp.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-486-216 |
| Product Type | MXV Desk Monitor Arm |
| Product Family | MXV |
| Color | White |
| Display Configuration | Single monitor |
| Maximum Display Size | 34 inches |
| Display Capacity | 7–20 lb (3.2–9.1 kg) |
| Height Adjustment | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | 360° |
| Rotation | 360° |
| VESA Standard | FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Arm Extension | 17.8 inches (45 cm) |
| Maximum Extension Reach | 22.2 inches (56 cm) |
| Desk Surface Thickness | 0.47–1.25 inches (12–32 mm) |
| Mounting Type | Two-piece desk clamp |
| Cable Management | Integrated |
| Product Weight | 6.4 lb (2.9 kg) |
| Shipping Weight | 7.5 lb (3.4 kg) |
| Shipping Dimensions | 34.4 x 9.3 x 7.3 inches (87.5 x 23.5 x 18.5 cm) |
| Warranty | 10 years |
| UPC | 698833061987 |
Package Contents
- MXV Desk Monitor Arm
- Two-piece desk clamp
- Monitor mounting hardware
Frequently Asked Questions
What is the Ergotron 45-486-216?
It is a white MXV Desk Monitor Arm designed to mount one VESA-compatible display to a desktop.
What monitor size and weight does it support?
The arm supports displays up to 34 inches with a weight capacity of 7–20 lb (3.2–9.1 kg).
How much height adjustment is available?
The 45-486-216 provides 13 inches (33 cm) of vertical height adjustment.
Which VESA patterns are supported?
The monitor interface supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
What desk thickness can the clamp accommodate?
The standard two-piece desk clamp is specified for work surfaces from 0.47 to 1.25 inches (12–32 mm) thick.
Is the 45-486-216 the low-profile C-clamp version?
No. The 45-486-216 uses the standard two-piece desk clamp. The low-profile top-mount C-clamp versions are separately identified by their own Ergotron part numbers.
