Product Overview

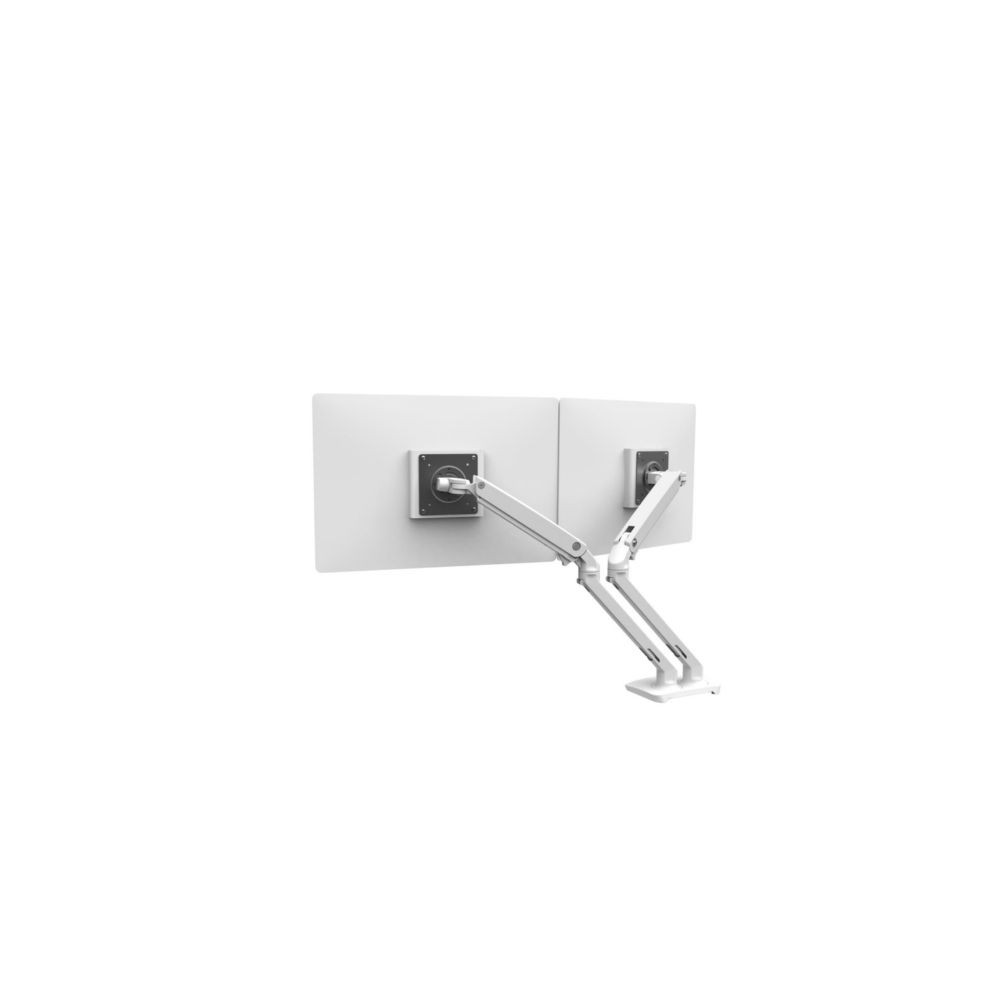

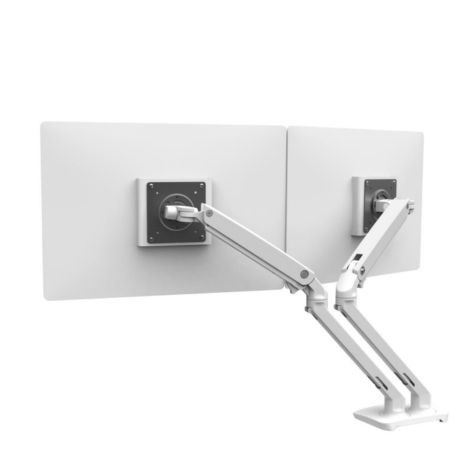

The Ergotron 45-496-216 MXV Desk Dual Monitor Arm is a white desk-mounted monitor support system designed for two compatible LCD displays arranged side by side. Its streamlined V-shaped design provides adjustable screen positioning while keeping the mounting structure compact and organized.
Part of Ergotron's MXV monitor arm series, this model uses Constant Force motion technology to make display repositioning easier. The dual-arm configuration supports independent adjustment of each monitor, helping users arrange their screens for different workstation tasks.
Display Positioning and Adjustability
The MXV dual monitor arm provides integrated height adjustment, articulated movement, and screen rotation. Monitors can be repositioned horizontally, tilted for a suitable viewing angle, or rotated between landscape and portrait orientations.
- Height adjustment: Up to 13 inches (33 cm).
- Tilt: Up to 180 degrees of total forward and backward movement.
- Pan: Up to 360 degrees of movement, depending on the joint and installation configuration.
- Screen rotation: 360 degrees for landscape or portrait positioning.
- Extension: The arms extend to provide flexible monitor positioning and can fold back toward the base when not required.
Monitor Compatibility
This mounting system supports two compatible LCD monitors, each weighing between 7 and 20 lb (3.2–9.1 kg), with a maximum combined display weight of 40 lb (18.1 kg). Displays up to 24 inches are the recommended size for normal adjustment capability; larger screens may be accommodated with reduced adjustment depending on their dimensions and configuration.
The arm supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm. Confirm the mounting pattern, weight, depth, and physical dimensions of both monitors before installation.
Desk Installation
The included two-piece desk clamp attaches to a compatible desk edge measuring 0.47–1.25 inches (12–32 mm) thick. Anti-rotation screws help prevent the base from slipping during normal adjustment.
A separate grommet mounting accessory, part number 98-111, is available for compatible through-desk installations. This accessory is not part of the standard desk-clamp configuration.
Cable Management and Design
Integrated cable management routes monitor cables beneath the arms, helping keep the desk surface organized. The slim design occupies less visual space than the LX arm profile and supports a clean dual-screen workstation arrangement.
Key Features
- Dual-monitor support for two compatible displays arranged side by side.
- Constant Force motion technology for convenient display repositioning.
- 13 inches (33 cm) of integrated height adjustment.
- 360-degree screen rotation and adjustable tilt for flexible viewing orientations.
- Integrated cable management and a compact desk-clamp mounting design.
Applications
The MXV dual monitor arm is suitable for office desks, home workstations, administrative environments, programming setups, and other work areas that use two displays simultaneously. Its adjustable arms allow users to position applications, documents, and reference material across separate screens.
DC Supplies Product Note
Check each monitor's weight separately before installation. Both displays must fall within the supported 7–20 lb range, and their combined weight must not exceed 40 lb. Also verify desk thickness and available clearance, especially when positioning larger displays side by side or rotating them into portrait orientation.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-496-216 |
|---|
| Product Type | Dual-monitor desk mount arm |
|---|
| Product Series | MXV |
|---|
| Model | MXV Desk Dual Monitor Arm |
|---|
| Color | White |
|---|
| Number of Displays | 2 |
|---|
| Recommended Display Size | Up to 24 inches per monitor for normal adjustment capability |
|---|
| Weight Capacity per Monitor | 7–20 lb (3.2–9.1 kg) |
|---|
| Maximum Combined Display Weight | 40 lb (18.1 kg) |
|---|
| Height Adjustment | 13 inches (33 cm) |
|---|
| Tilt Range | 180 degrees total |
|---|
| Pan | Up to 360 degrees, depending on joint and installation configuration |
|---|
| Screen Rotation | 360 degrees |
|---|
| Extension Range | 17.8 inches (45 cm) |
|---|
| Maximum Reach | Approximately 22.2 inches (56 cm) from the back of the base to the VESA mounting plate |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Mounting Type | Desk-edge clamp |
|---|
| Supported Desk Thickness | 0.47–1.25 inches (12–32 mm) |
|---|
| Motion Technology | Constant Force |
|---|
| Cable Management | Integrated cable routing beneath the arms |
|---|
| Included Components | Fully assembled dual monitor arm, two-piece desk clamp, and mounting hardware |
|---|
| Optional Mounting Accessory | Grommet Mount 98-111, sold separately |
|---|
| Warranty | 10 years |
|---|
Frequently Asked Questions
1. How many monitors does the Ergotron 45-496-216 support?
This model supports two compatible LCD monitors arranged side by side, with each display attached to its own arm.
2. What is the maximum supported monitor weight?
Each monitor must weigh between 7 and 20 lb (3.2–9.1 kg). The maximum combined weight of both displays is 40 lb (18.1 kg).
3. Can the monitors be rotated into portrait orientation?
Yes. The mounting system supports 360-degree screen rotation, allowing compatible displays to be positioned in portrait or landscape orientation.
4. Does the product include a grommet mounting accessory?
The standard configuration includes a two-piece desk clamp and mounting hardware. The Grommet Mount accessory, part number 98-111, is available separately.
5. Which VESA mounting patterns are supported?
The arm supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm. Verify that both monitors use a compatible mounting pattern before purchasing.
6. What desk thickness is supported by the included clamp?
The desk clamp is designed for desk edges measuring 0.47–1.25 inches (12–32 mm) thick. Check the thickness and shape of the intended mounting surface before installation.
