Product Overview

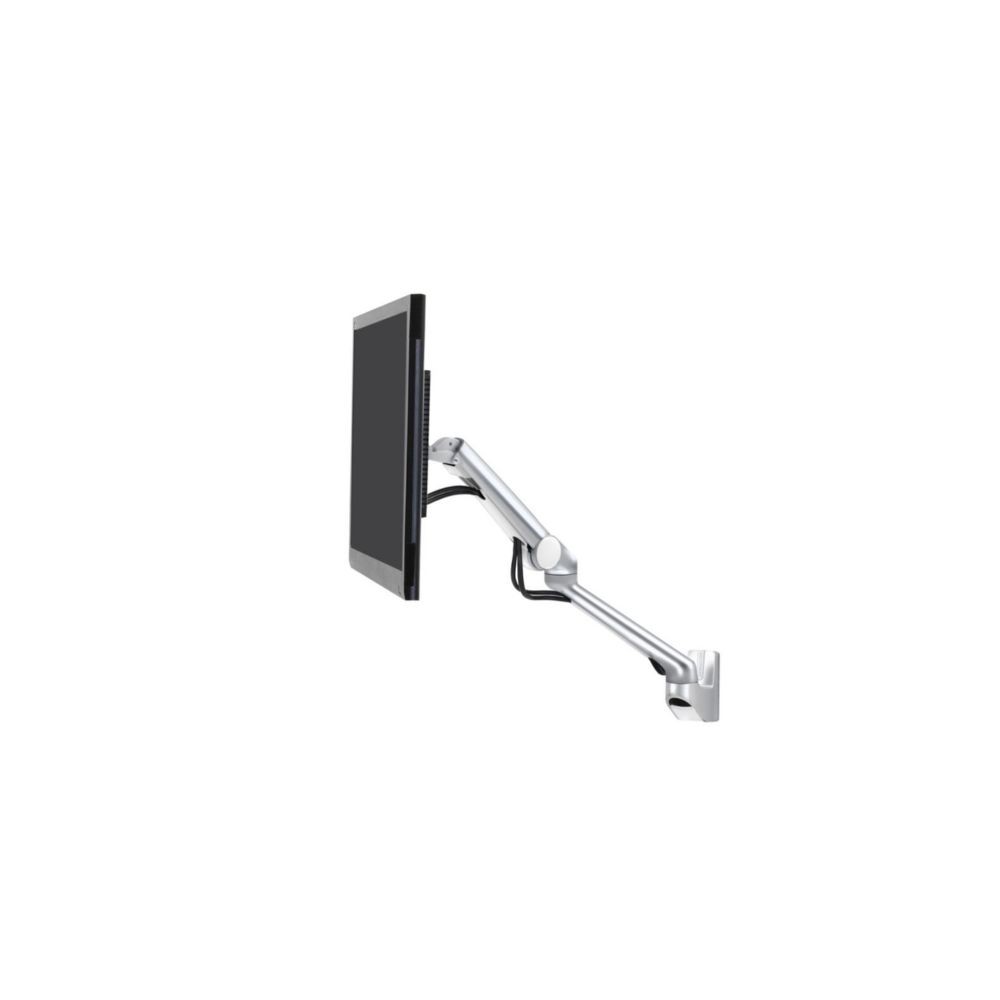

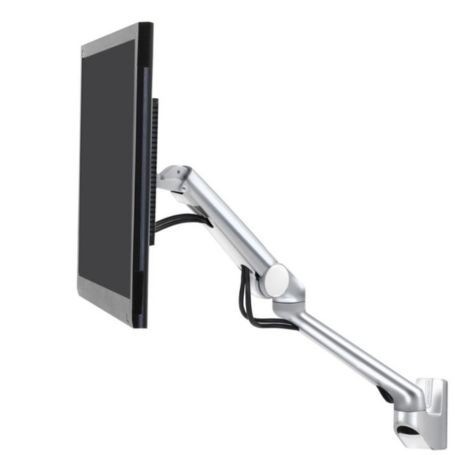

The Ergotron 45-437-026 MX Mini Wall Mount Arm is a polished aluminum mounting solution designed for lightweight LCD monitors and tablet displays. Its articulated arm provides adjustable positioning while freeing up desk space by mounting the display to a wall. The slim design and integrated cable management support a tidy workspace in offices, workstations, and specialized display environments.
Adjustability and Display Positioning
The MX Mini provides an adjustable display position with vertical lift, tilt, pan, and portrait-to-landscape rotation. Its extension arm allows the mounted screen to move away from the wall when needed and fold back when not in use.
- Vertical adjustment: Provides 13 inches (33 cm) of lift.
- Tilt: Offers 95 degrees of total tilt, from 90 degrees upward to 5 degrees downward.
- Pan: Provides 360-degree horizontal positioning.
- Screen rotation: Supports 360-degree rotation with a portrait/landscape position lockout.
- Extension: Extends up to 19.5 inches (49.5 cm).
Display Compatibility
This wall mount supports lightweight displays weighing up to 8 lb (3.6 kg). Ergotron identifies displays up to 24 inches as the typical screen size. Actual compatibility depends on the display's weight and mounting interface, not screen size alone.
The mounting interface supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm. Before purchasing, confirm that the display's mounting holes and total weight are within these limits.
Tablet Mounting
The MX Mini can also be used as part of a tablet mounting solution. For tablet installations, the Ergotron Lockable Tablet Mount, part number 45-460-026, is an accessory that must be obtained separately. The tablet's mounting requirements and the combined installation must be checked before deployment.
Cable Management
The arm incorporates cable management to route cables along the arm and extension, helping keep them organized and away from the main work surface.
Key Features
- Wall-mounted articulated arm for lightweight LCD monitors and compatible tablet mounting configurations.
- 13-inch vertical lift for flexible display positioning.
- 360-degree screen rotation with portrait/landscape position lockout.
- VESA MIS-D mounting compatibility with 75 x 75 mm and 100 x 100 mm hole patterns.
- Integrated cable management along the arm and extension.
Applications
The MX Mini is suitable for installations where a lightweight display needs flexible positioning without occupying desk space. Potential applications include office monitor stations, compact work areas, information displays, and compatible tablet-based workstations.
DC Supplies Product Note
Check both the display weight and VESA mounting pattern before ordering. A screen measuring less than 24 inches is not automatically compatible if it exceeds the 8 lb load limit or uses a different mounting pattern. For tablet installations, the separate Ergotron 45-460-026 Lockable Tablet Mount is an additional compatibility consideration.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-437-026 |
|---|
| Product Type | Wall mount monitor arm |
|---|
| Product Series | MX Mini |
|---|
| Color / Finish | Polished aluminum |
|---|
| Mounting Type | Wall mount |
|---|
| Typical Display Size | Up to 24 inches |
|---|
| Maximum Weight Capacity | 8 lb (3.6 kg) |
|---|
| Vertical Lift | 13 inches (33 cm) |
|---|
| Tilt Range | 95 degrees total; 90 degrees upward and 5 degrees downward |
|---|
| Pan | 360 degrees |
|---|
| Screen Rotation | 360 degrees with portrait/landscape position lockout |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Maximum Extension | 19.5 inches (49.5 cm) |
|---|
| Cable Management | Integrated cable routing along the arm and extension |
|---|
| Included Components | Arm, extension, wall mount, and monitor attachment hardware |
|---|
| Optional Tablet Accessory | Ergotron Lockable Tablet Mount, 45-460-026; sold separately |
|---|
| Warranty | 10 years |
|---|
| UPC | 698833057508 |
|---|
Frequently Asked Questions
1. Which monitors are compatible with the Ergotron 45-437-026?
The mount is designed for lightweight displays typically measuring up to 24 inches and weighing no more than 8 lb (3.6 kg). The display must also support a compatible 75 x 75 mm or 100 x 100 mm VESA mounting pattern.
2. Can the monitor be rotated between portrait and landscape orientations?
Yes. The arm supports 360-degree screen rotation and includes a portrait/landscape position lockout.
3. Can this arm be used with a tablet?
Yes, as part of a compatible tablet mounting configuration. The Ergotron Lockable Tablet Mount, part number 45-460-026, is a separate accessory and is not listed among the included components of this arm.
4. How far can the arm extend from its mounting position?
The arm extends up to 19.5 inches (49.5 cm), allowing the display to be repositioned away from the wall.
5. What mounting hardware is included?
The listed components include the arm, extension, wall mount, and monitor attachment hardware. Confirm that the mounting hardware and installation method are suitable for the intended wall construction and installation requirements.
