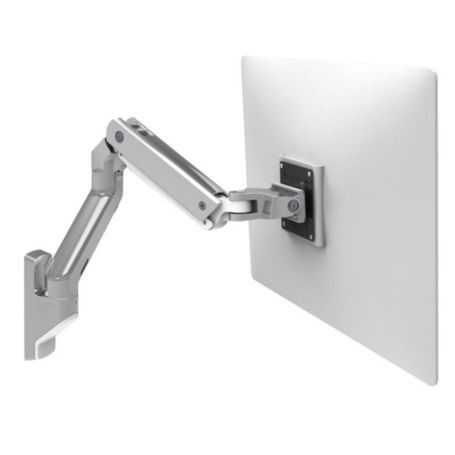

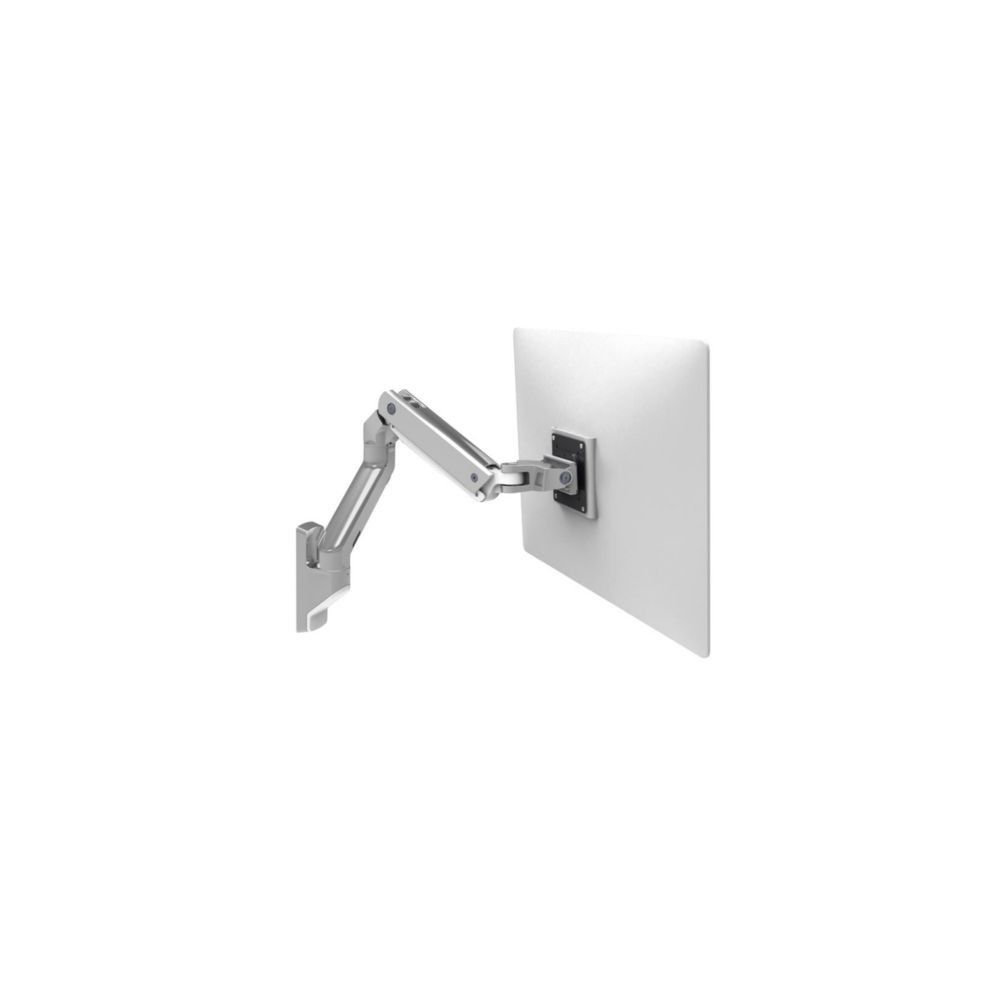

The Ergotron 45-478-026 HX Wall Monitor Arm is a polished aluminum wall-mounted monitor arm designed for large, heavy displays. It supports monitors weighing from 20 to 42 lb (9.1 to 19.1 kg) and provides 11.5 inches (29.2 cm) of vertical adjustment for ergonomic positioning.
Overview
The HX Wall Monitor Arm provides a flexible mounting solution for large displays while keeping the work surface clear. Its arm can extend up to 24.8 inches (63 cm) and folds back toward the wall when not in use, making it useful where available workspace is limited.
Display Support and Adjustment
The 45-478-026 is rated for displays from 20 to 42 lb. Ergotron lists a typical LCD size of up to 49 inches, with actual usable screen size dependent on the display's weight and physical characteristics. The arm provides 11.5 inches of lift, 70° backward tilt and 5° forward tilt, 180° base pan, and 360° monitor rotation.
VESA Compatibility
The monitor arm supports VESA FDMI MIS-D mounting patterns including 75 x 75 mm and 100 x 100 mm, with additional support for MIS-E 200 x 100 mm and MIS-F 200 x 200 mm patterns on the HX single-monitor configuration. An optional VESA bracket adaptor is available for larger 400 mm mounting patterns.
Wall Mounting
The HX Wall Monitor Arm attaches directly to sturdy vertical surfaces and can also be used with an Ergotron wall track when the appropriate bracket is selected separately. Installation should be made to a suitable structural mounting surface capable of supporting the display and arm.
Key Features
- Supports displays weighing 20–42 lb (9.1–19.1 kg)
- 11.5-inch (29.2 cm) vertical lift
- Up to 24.8-inch (63 cm) extension
- 70° backward and 5° forward tilt with 360° monitor rotation
- Polished aluminum finish with integrated cable routing
Applications
The 45-478-026 is suited to wall-mounted large-display installations in offices, work areas, studios, control environments, and other spaces where a heavy monitor requires adjustable positioning while preserving desk or work-surface space.
DC Supplies Product Note
For heavy displays, verify both the display weight and its VESA mounting pattern before installation. The 45-478-026 supports up to 42 lb and provides compatibility with several VESA interfaces, while larger 400 mm patterns require an optional adaptor.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-478-026 |
| Product Type | Wall Monitor Arm |
| Series | HX |
| Finish | Polished Aluminum |
| Supported Displays | 1 |
| Typical LCD Size | Up to 49 inches |
| Weight Capacity | 20–42 lb (9.1–19.1 kg) |
| Vertical Lift | 11.5 inches (29.2 cm) |
| Tilt | 70° backward / 5° forward |
| Base Pan | 180° |
| Monitor Rotation | 360° |
| Maximum Extension | 24.8 inches (63 cm) |
| VESA Compatibility | MIS-D 75/100; MIS-E 200 x 100 mm; MIS-F 200 x 200 mm |
| Optional Large VESA Support | 400 x 200, 400 x 300, and 400 x 400 mm with optional adaptor |
| Mounting Surface | Wall |
| Cable Management | Integrated cable routing beneath the arm and through the extension |
| Shipping Weight | 14 lb (6.3 kg) |
| Shipping Dimensions | 12.0 x 19.2 x 7.0 inches (30.5 x 48.8 x 17.8 cm) |
| Warranty | 10 years |
| UPC / GTIN | 00698833060980 |
Package Contents
- HX monitor arm
- Extension
- Monitor pivot
- Wall mount
- Monitor mounting hardware
FAQs
What size monitor does the Ergotron 45-478-026 support?
Ergotron lists a typical LCD size of up to 49 inches. The display must also remain within the arm's 20–42 lb weight capacity.
How much weight can the 45-478-026 hold?
The arm supports a display weighing from 20 to 42 lb (9.1 to 19.1 kg).
How far can the HX Wall Monitor Arm extend?
The arm provides up to 24.8 inches (63 cm) of extension.
What VESA patterns are supported?
The HX single-monitor configuration supports VESA MIS-D 75 x 75 mm and 100 x 100 mm, plus MIS-E 200 x 100 mm and MIS-F 200 x 200 mm mounting patterns. Larger 400 mm patterns require an optional adaptor.
Can the monitor rotate?
Yes. The monitor provides 360° rotation, while the base pan is limited to 180°.
What is the warranty?
Ergotron provides a 10-year warranty for the 45-478-026 HX Wall Monitor Arm.
