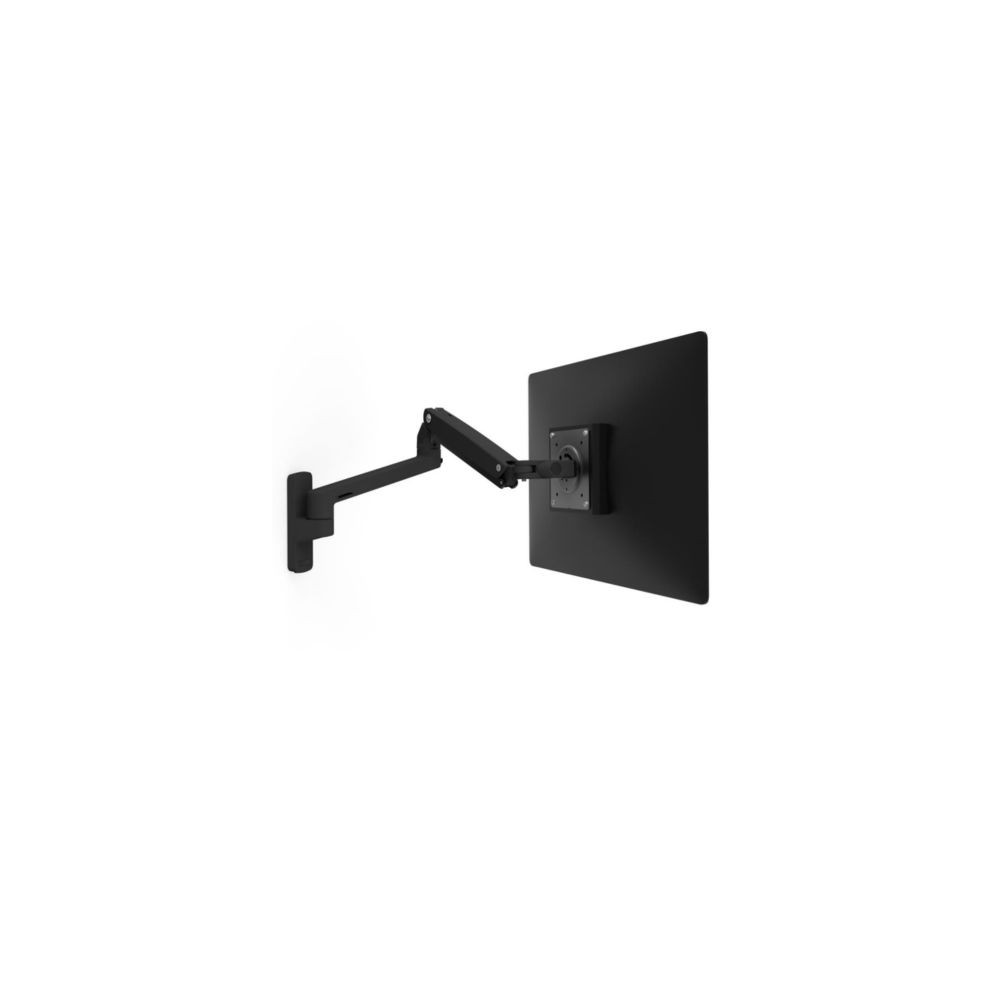

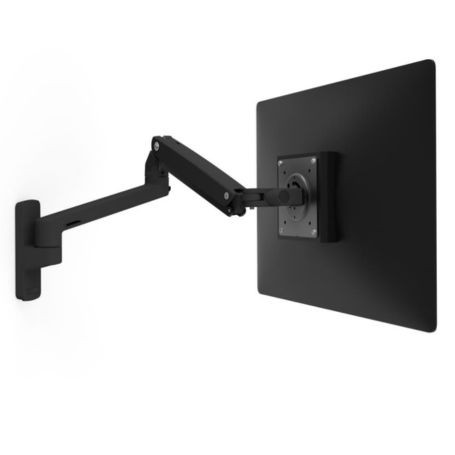

The Ergotron 45-505-224 MXV Wall Monitor Arm is a matte-black wall-mounted monitor arm for a single compatible display. Its compact V-shaped design provides adjustable positioning while keeping the mounting footprint close to the wall when the arm is retracted.
Overview
The MXV supports displays up to 34 inches with a specified weight range of 7–20 lb (3.2–9.1 kg). The arm is supplied fully assembled with a wall-mount base and monitor mounting hardware.
Display Adjustment
The arm provides 13 inches (33 cm) of vertical adjustment. The display can tilt through 180 degrees, pan through the specified 180° base and 360° arm ranges, and rotate 360 degrees for flexible viewing orientation.
Wall-Mount Design
The 45-505-224 attaches to a sturdy vertical surface using its wall-mount base. The arm can fold back toward the wall, with the VESA plate positioned approximately 4.4 inches (11 cm) from the wall when fully retracted.
VESA Compatibility
The mount uses VESA FDMI MIS-D with 75 x 75 mm and 100 x 100 mm mounting-hole patterns. Confirm the display's VESA interface and weight before installation.
Key Features
- Supports displays up to 34 inches and 20 lb (9.1 kg)
- 13-inch (33 cm) vertical adjustment
- 180° tilt and 360° display rotation
- Up to 24.6 inches (63 cm) maximum extension
- Matte-black finish with compact wall-mounted design
Applications
The 45-505-224 is suited to workstations and installations where a display needs adjustable positioning without occupying desk space. Its wall-mounted configuration is appropriate for compatible displays within the specified weight and VESA limits.
DC Supplies Product Note
Before installation, verify both the display's weight and VESA mounting pattern. The exact 45-505-224 is the matte-black MXV variant and supports displays from 7 to 20 lb.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-505-224 |
| Product Type | Wall Monitor Arm |
| Product Family | MXV |
| Color / Finish | Matte Black |
| Display Size | Up to 34 inches |
| Display Weight Capacity | 7–20 lb (3.2–9.1 kg) |
| Vertical Adjustment | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | 180° at base / 360° between extension and arm |
| Rotation | 360° |
| Maximum Extension | 24.6 inches (63 cm) |
| VESA Standard | FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm / 100 x 100 mm |
| Mounting Type | Wall mount |
| Product Weight | 6.4 lb (2.9 kg) |
| Warranty | 10 years |
| UPC | 698833076189 |
Package Contents
The 45-505-224 includes the fully assembled MXV arm, wall-mount base, and monitor mounting hardware.
FAQs
What display size does the Ergotron 45-505-224 support?
The mount is specified for displays up to 34 inches, provided the display remains within the 7–20 lb weight range.
How much vertical adjustment does it provide?
The MXV provides 13 inches (33 cm) of vertical adjustment.
Can the monitor rotate?
Yes. The monitor supports 360-degree rotation, along with 180-degree tilt and the specified pan adjustment.
Which VESA patterns are supported?
The 45-505-224 supports VESA FDMI MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
Is the 45-505-224 desk mounted?
No. This exact MPN is a wall-mounted monitor arm designed for attachment to a sturdy vertical surface.
What finish does this MPN have?
The exact 45-505-224 is the matte-black version of the Ergotron MXV Wall Monitor Arm.
