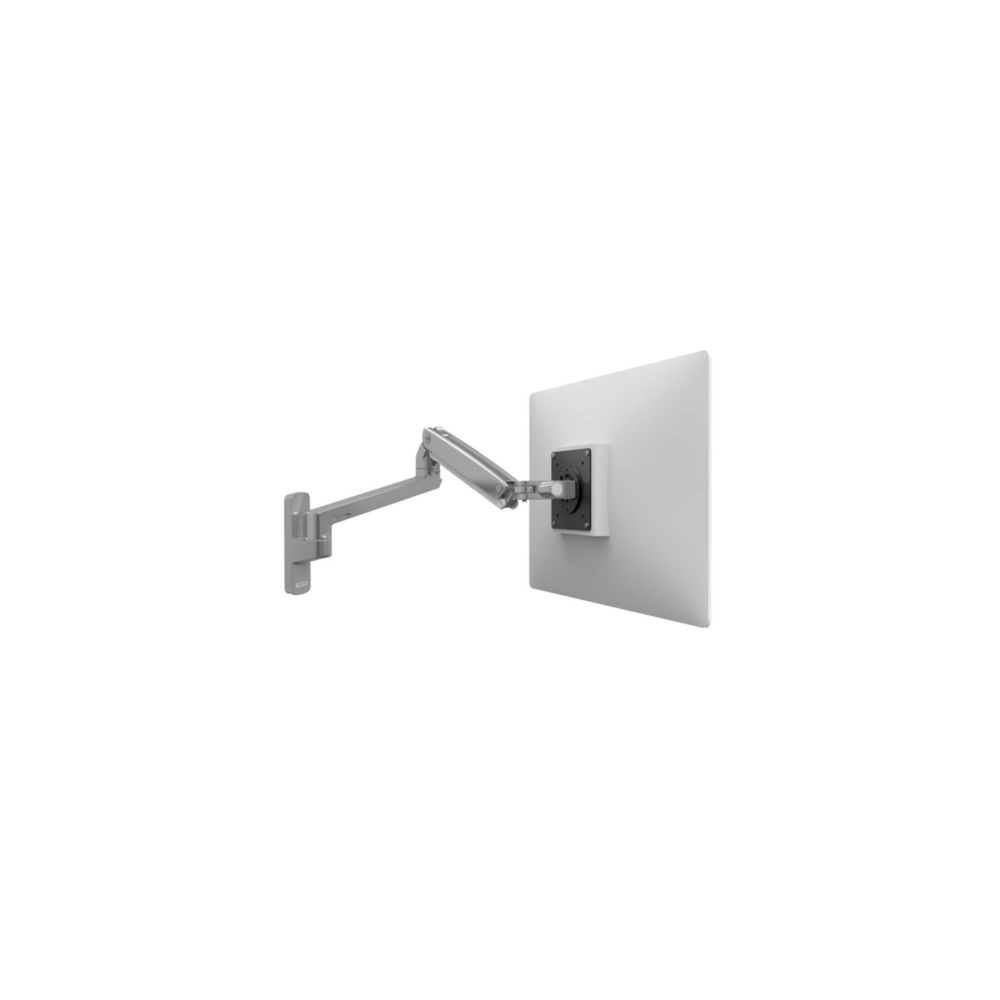

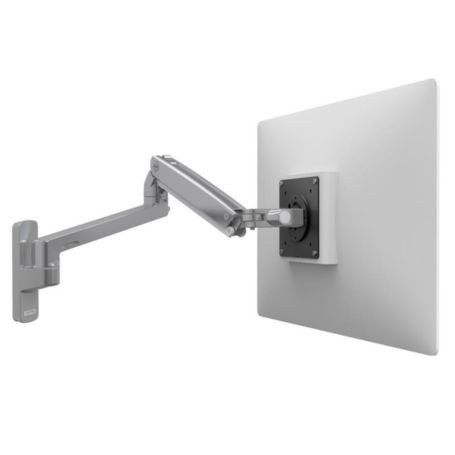

The Ergotron 45-505-026 MXV Wall Monitor Arm is a polished aluminum wall-mounted monitor arm designed for displays up to 34 inches and weighing 7–20 lb (3.2–9.1 kg). Its compact wall-mounted configuration provides adjustable height, tilt, pan, and rotation while keeping the desk surface clear.
Overview
The MXV Wall Monitor Arm uses a fully assembled arm with a wall mounting bracket and monitor mounting hardware. The polished aluminum finish gives this exact MPN a distinct appearance from the white and matte-black MXV variants.
Display Support
The 45-505-026 supports a typical LCD display size of up to 34 inches, with a specified weight range of 7–20 lb (3.2–9.1 kg). Screen size is a guideline; the display must remain within the mount's weight capacity.
Adjustability
The arm provides 13 inches (33 cm) of vertical lift. The display can tilt through 180 degrees, pan through the arm's specified 180°/360° ranges, and rotate 360 degrees. Maximum extension is 24.6 inches (63 cm).
Wall-Mount Design
The wall-mounted configuration eliminates the need for a desk clamp and allows the display to fold close to the wall when stored. Ergotron documentation specifies that the arm can fold to approximately 4.4 inches from the wall.
VESA Compatibility
The MXV uses the VESA MIS-D mounting standard. The supported mounting-hole patterns are 75 x 75 mm and 100 x 100 mm.
Key Features
- Supports displays up to 34 inches and 20 lb (9.1 kg)
- 13-inch (33 cm) vertical adjustment
- 180° tilt with 360° display rotation
- Up to 24.6 inches (63 cm) of extension
- Polished aluminum finish with wall-mounted installation
Applications
The 45-505-026 is suited to workspaces and installations where a display needs adjustable positioning while preserving desk space. Its wall-mounted design is appropriate for compatible LCD displays within the specified size, weight, and VESA requirements.
DC Supplies Product Note
For installation planning, verify the display weight and VESA mounting pattern before selecting the arm. The exact 45-505-026 is the polished aluminum MXV version and supports displays from 7 to 20 lb.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-505-026 |
| Product Type | Wall Monitor Arm |
| Product Family | MXV |
| Finish | Polished Aluminum |
| Typical Display Size | Up to 34 inches |
| Display Weight Capacity | 7–20 lb (3.2–9.1 kg) |
| Vertical Adjustment | 13 inches (33 cm) |
| Tilt | 180° (90° forward / 90° backward) |
| Pan | 180° / 360° |
| Rotation | 360° |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm / 100 x 100 mm |
| Maximum Extension | 24.6 inches (63 cm) |
| Mounting Type | Wall mount |
| Product Weight | 6.4 lb (2.9 kg) |
| Warranty | 10 years |
| UPC | 00698833061239 |
Package Contents
The 45-505-026 includes the fully assembled MXV arm, wall mounting bracket, and monitor mounting hardware.
FAQs
What display size does the Ergotron 45-505-026 support?
The typical supported display size is up to 34 inches, provided the display remains within the specified 7–20 lb weight range.
How much vertical adjustment does the MXV provide?
The arm provides 13 inches (33 cm) of vertical lift.
Can the monitor rotate?
Yes. The display provides 360-degree rotation, along with 180-degree tilt and the specified pan adjustment.
What VESA mounting pattern does it support?
The MXV uses VESA MIS-D mounting and supports 75 x 75 mm and 100 x 100 mm mounting patterns.
Is the 45-505-026 desk mounted?
No. This exact MPN is a wall-mounted monitor arm with a wall mounting bracket.
What finish does the 45-505-026 have?
The exact 45-505-026 is finished in polished aluminum. The white and matte-black MXV versions use different MPNs.
