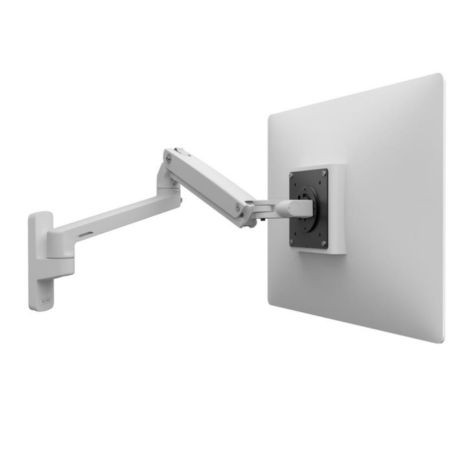

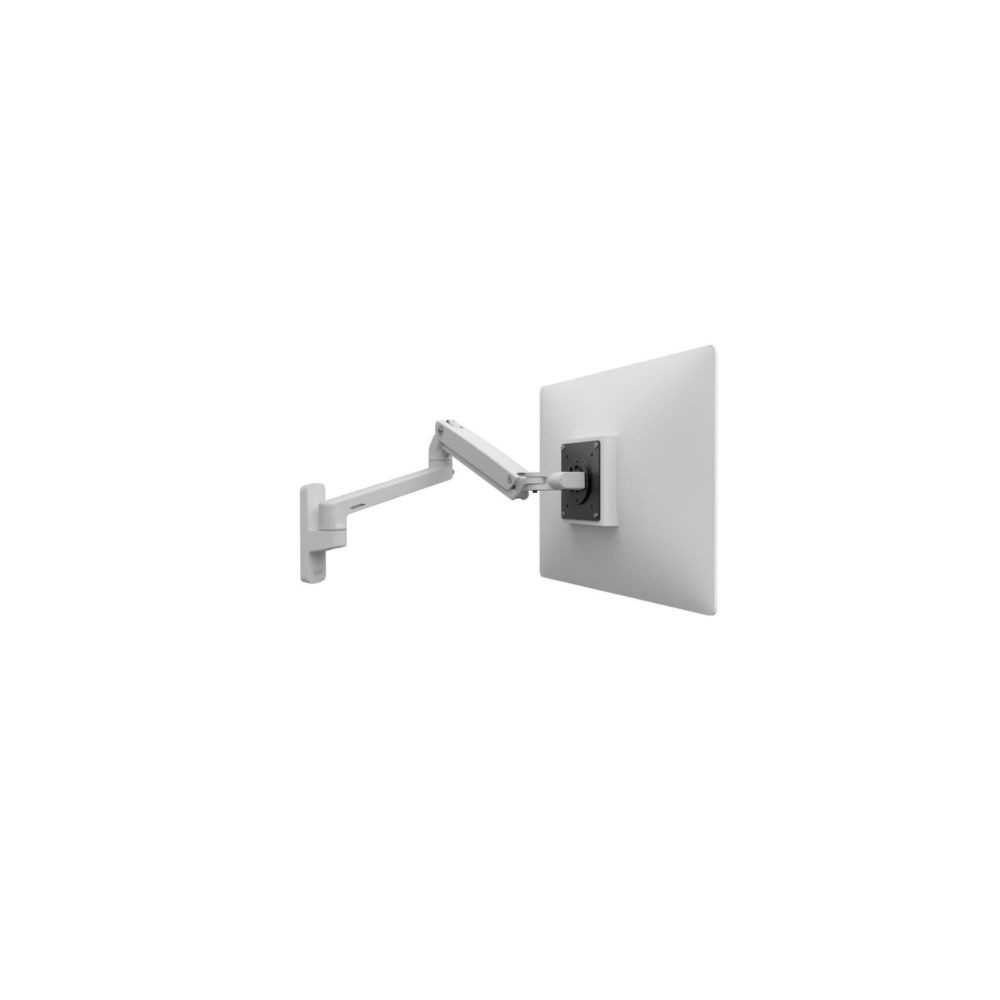

The Ergotron 45-505-216 MXV Wall Mount Monitor Arm is a white wall-mounted display arm designed for flexible positioning of LCD monitors or TVs. Its slim V-shaped design combines a wall-mounted pivoting base with integrated display adjustment, providing up to 13 inches of vertical movement and broad positioning flexibility.
Overview
The MXV provides a compact wall-mounted solution for displays weighing from 7 to 20 lb (3.2 to 9.1 kg). The fully assembled arm is supplied with a wall-mount base and monitor mounting hardware, simplifying installation.
Display Support and Adjustment
The arm supports typical displays up to 34 inches, subject to the maximum supported weight. The display can be adjusted vertically through a 13-inch range, tilted through 180 degrees, panned up to 360 degrees, and rotated 360 degrees for flexible viewing orientation.
Wall-Mount Configuration
The MXV uses a wall-mounted base and provides up to 25 inches (63 cm) of extension. Its pivoting wall-mount design allows the monitor to be positioned away from the wall and repositioned as needed.
VESA Compatibility
The 45-505-216 uses the VESA MIS-D mounting standard for compatible displays. Confirm the monitor's VESA interface and weight before installation.
Key Features
- Supports displays up to 34 inches and 20 lb (9.1 kg)
- 13-inch (33 cm) vertical adjustment range
- 180-degree tilt and 360-degree display rotation
- Up to 25 inches (63 cm) of arm extension
- Fully assembled wall-mount arm with monitor mounting hardware
Applications
The MXV wall-mounted configuration is suited to workspaces and installations where a display needs adjustable positioning without using desk space. Its wall-mounted design can also be used with compatible LCD displays or TVs within the specified size and weight limits.
DC Supplies Product Note
For installation planning, the key selection points are the display's weight, VESA interface, and the available wall-mount location. The 45-505-216 is rated for 7–20 lb displays and provides up to 13 inches of vertical adjustment.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-505-216 |
| Product Type | Wall Mount Monitor Arm |
| Product Family | MXV |
| Color | White |
| Typical Display Size | Up to 34 inches |
| Display Weight Capacity | 7–20 lb (3.2–9.1 kg) |
| Vertical Adjustment | 13 inches (33 cm) |
| Tilt | 180° |
| Pan | Up to 360° |
| Rotation | 360° |
| Maximum Extension | 25 inches (63 cm) |
| VESA Standard | MIS-D |
| Mounting Type | Wall mount |
| Product Weight | 2.2 kg |
| Warranty | 10 years |
| GTIN | 00698833063622 |
Package Contents
The 45-505-216 includes the fully assembled MXV arm, wall-mount base, and mounting hardware for the monitor.
FAQs
What size display does the Ergotron 45-505-216 support?
The typical supported display size is up to 34 inches, provided the display remains within the 20 lb (9.1 kg) maximum load rating.
How much vertical adjustment does it provide?
The MXV provides 13 inches (33 cm) of vertical adjustment.
Can the monitor be rotated?
Yes. The display supports 360-degree rotation, along with up to 360 degrees of pan adjustment and 180 degrees of tilt.
What VESA standard does it use?
The arm uses the VESA MIS-D mounting standard.
Is the 45-505-216 desk mounted?
No. This exact model is a wall-mounted monitor arm with a wall-mount base.
What color is this MPN?
Ergotron 45-505-216 is the white version of the MXV Wall Mount Monitor Arm. The matte-black variant uses a different MPN.
