Overview

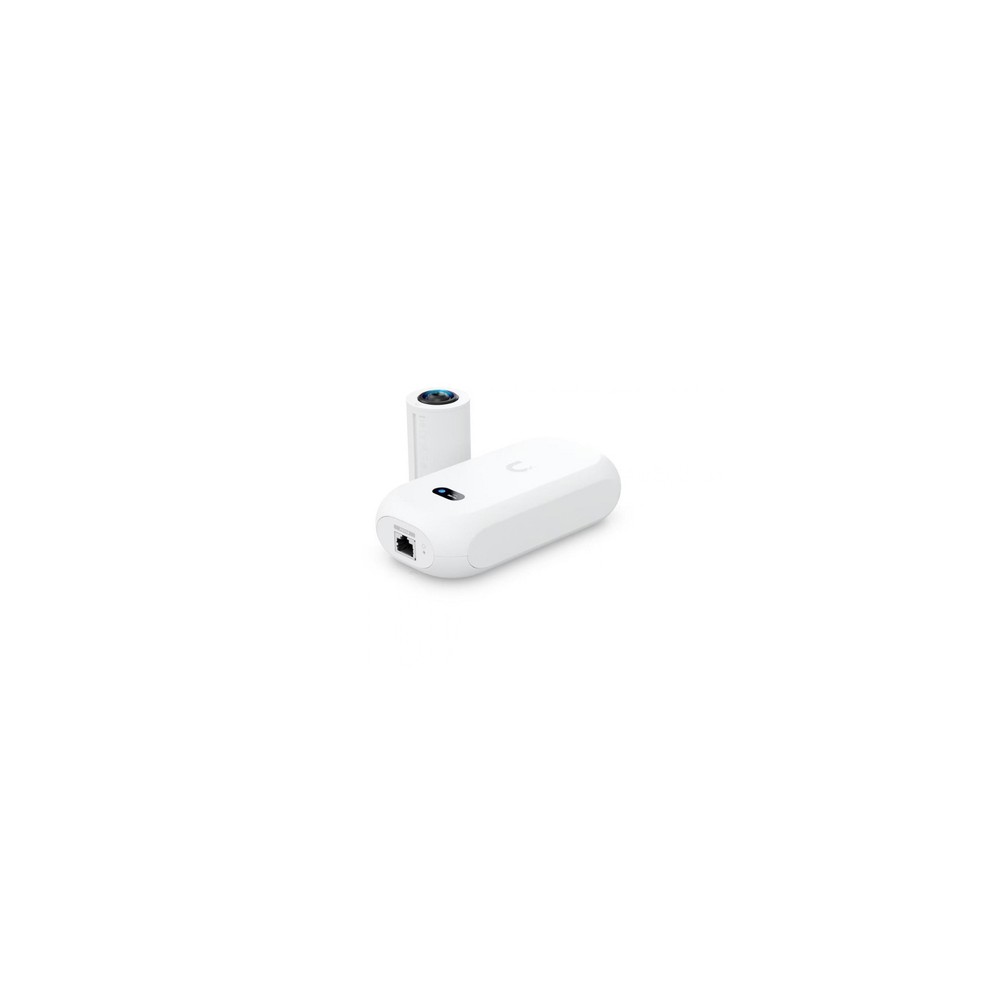

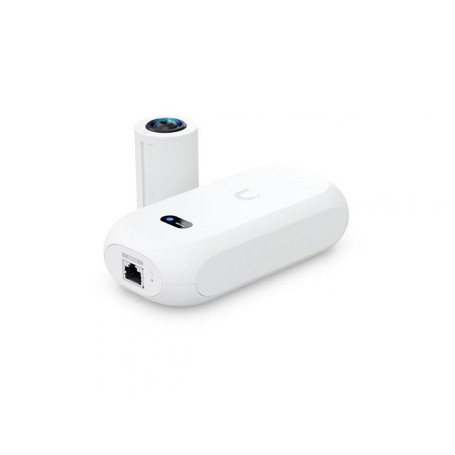

The Ubiquiti UVC-AI-THETA-PROLENS110 is the AI Theta Pro Wide-Angle Lens, a compact camera lens module designed to connect to an AI Theta Hub. It provides 4K 8MP video at 3840 × 2160 resolution and combines a wide 110.4° horizontal field of view with enhanced low-light performance and dynamic range.
The lens is intended for indoor surveillance and is suited to larger, busy areas such as entrances and lobbies where broad scene coverage is required. A Standard Flush Mount is included for flat ceiling or wall installation, while compatible AI Theta Pro Angle Mounts can be used for alternative mounting configurations.
Imaging and Optics
The UVC-AI-THETA-PROLENS110 uses an 8MP 1/1.8-inch sensor and fixed focal-length optics. It provides a 110.4° horizontal, 62.1° vertical, and 126.6° diagonal field of view. Maximum frame rate is 24 FPS at 3840 × 2160 resolution.
Image controls include color, brightness, sharpness, contrast, white balance, exposure control, 2D noise reduction, 3D noise reduction, motion-based noise reduction, masking, and text overlay.
Compatibility and Mounting
The lens uses Ubiquiti's proprietary Theta connection and is designed to connect to an AI Theta Hub. It supports wall and ceiling mounting, with the Standard Flush Mount included. An AI Theta Pro Angle Mount is available separately for installations requiring angled positioning.
Key Features
- 4K 8MP video resolution at 3840 × 2160.
- 110.4° horizontal, 62.1° vertical, and 126.6° diagonal field of view.
- 8MP 1/1.8-inch sensor with fixed focal-length optics.
- Enhanced low-light performance and dynamic range.
- Includes Standard Flush Mount and supports optional AI Theta Pro Mounts.
Applications
The AI Theta Pro Wide-Angle Lens is designed for indoor surveillance locations that benefit from broad visual coverage. Ubiquiti identifies large, busy spaces such as entrances and lobbies as suitable applications, where the wide field of view can cover a substantial area from a compact installation point.
Power and Operating Environment
The lens uses the proprietary Theta power method and requires 5V DC at 0.5A, with maximum power consumption of 2.5W. It is specified for indoor operation at 0°C to 40°C (32°F to 104°F) and 10% to 90% non-condensing humidity.
DC Supplies Product Note
The UVC-AI-THETA-PROLENS110 is a lens module for the AI Theta ecosystem rather than a standalone network camera. A compatible AI Theta Hub is required for the lens to operate as part of an AI Theta camera system.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-THETA-PROLENS110 |
| Product Type | AI Theta Pro Wide-Angle Lens |
| Product Family | UniFi AI Theta Pro |
| Resolution | 4K / 8MP |
| Image Resolution | 3840 × 2160 (16:9) |
| Sensor | 8MP 1/1.8-inch |
| Lens | Fixed focal length |
| Horizontal Field of View | 110.4° |
| Vertical Field of View | 62.1° |
| Diagonal Field of View | 126.6° |
| Maximum Frame Rate | 24 FPS |
| Video Compression | H.264 |
| Connection / Power Method | Theta proprietary |
| Power Supply | 5V DC, 0.5A |
| Maximum Power Consumption | 2.5W |
| Mounting | Wall, ceiling |
| Included Mount | Standard Flush Mount |
| Optional Mount | AI Theta Pro Angle Mount |
| Operating Environment | Indoor only |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Polycarbonate |
| Dimensions | Ø36.6 × 58.9 mm (Ø1.4 × 2.3 in) |
| Weight | 50 g (1.8 oz) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Certifications | FCC, IC, CE |
FAQs
What is the UVC-AI-THETA-PROLENS110?
It is Ubiquiti's AI Theta Pro Wide-Angle Lens, an 8MP lens module designed to connect to an AI Theta Hub for indoor surveillance applications.
What is the field of view?
The lens provides a 110.4° horizontal, 62.1° vertical, and 126.6° diagonal field of view.
Does the lens support 4K video?
Yes. It supports 8MP 4K video at 3840 × 2160 resolution, with a maximum frame rate of 24 FPS.
Is this a standalone IP camera?
No. The UVC-AI-THETA-PROLENS110 is a lens module that connects to an AI Theta Hub. The compatible hub is required for operation within an AI Theta system.
What mounting hardware is included?
A Standard Flush Mount is included for flat ceiling or wall mounting. An AI Theta Pro Angle Mount is available separately.
