Detailed Specifications

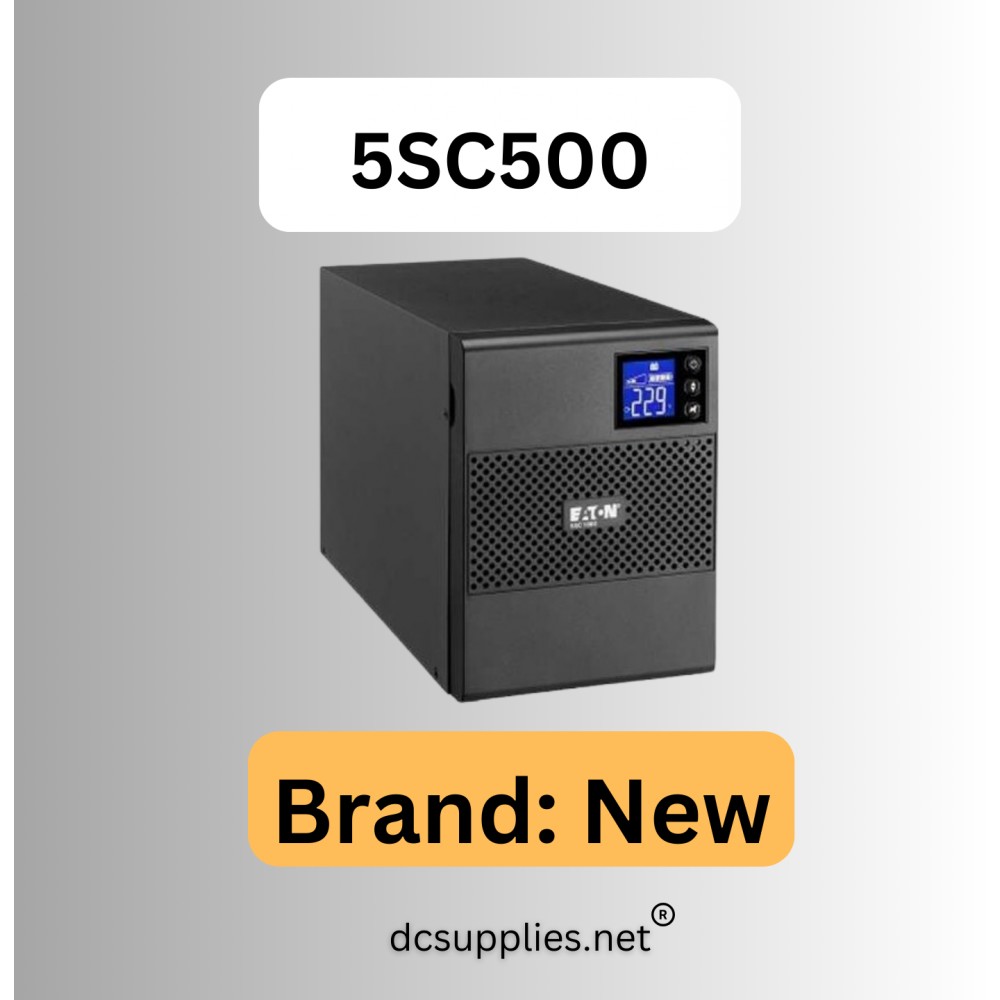

Eaton 5SC500 UPS 500VA 350W 120V Line-Interactive Sine Wave Battery Backup
Overview:
The flexible Eaton UPS delivers affordable and reliable protection for small business servers, storage, and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm, and power input sensitivity. By using Eaton's Intelligent Power Manager software with the UPS you get up-to-the-minute information on the status of power in your network. The offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
About This Item:
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Integrates with Intelligent Power Manager (IPM) for point-to-point power management (USB/serial) or network-based using the server as a proxy. View Demo
- Offers user-replaceable batteries
- Extends battery service life by 50% with ABM technology
- Protects you with a three-year warranty, which includes the battery
- Corrects a wide range of input voltage variations through buck and boost operation
- Provides high-quality pure-sinewave output capability, protecting any sensitive equipment connected ensuring consistent input voltage to the loads protected
Specifications:
| Product Name |
Eaton 5SC UPS 500VA 350W 120V Line-Interactive Sine Wave Battery Backup |
| Manufacturer Part Number |
5SC500 |
| Product Type |
Line-interactive UPS |
| Receptacle Type |
NEMA 5-15R |
| Network (RJ-45) |
Yes |
| Product Family |
5SC |
| Load Capacity (VA) |
500 VA |
| Product Color |
Black |
| Load Capacity (W) |
350 W |
| Plug / Connector Type |
NEMA 5-15P |
| Form Factor |
Tower |
| Hot Swappable |
No |
| Input Voltage |
120 V AC |
| Battery Chemistry |
Lead Acid |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| USB |
Yes |
| Maximum Operating Temperature |
95°F (35°C) |
| Serial Port |
Yes |
| Battery Characteristics |
Maintenance-free, Sealed |
| Receptacle Detail |
4 x NEMA 5-15R |
| Country of Origin |
Philippines |
| Height |
8.2" |
| Width |
5.9" |
| Depth |
9.4" |
| Product Series |
5SC |
| Load Capacity |
500 VA/350 W |
| Sound Emission |
55 dB |
| Limited Warranty |
1 Year |
| Software Included |
Eaton Intelligent Power Software |
| Output Voltage |
120 V AC |
| Battery Management |
ABM Technology |
| Cord Length |
5.91 ft |
| Protection Type |
Surge |
