HP 416669-B21 ProLiant Bl480c G1 2p Intel Xeon 5160 DC 3GHz 4GB Ram View larger
Previous Next

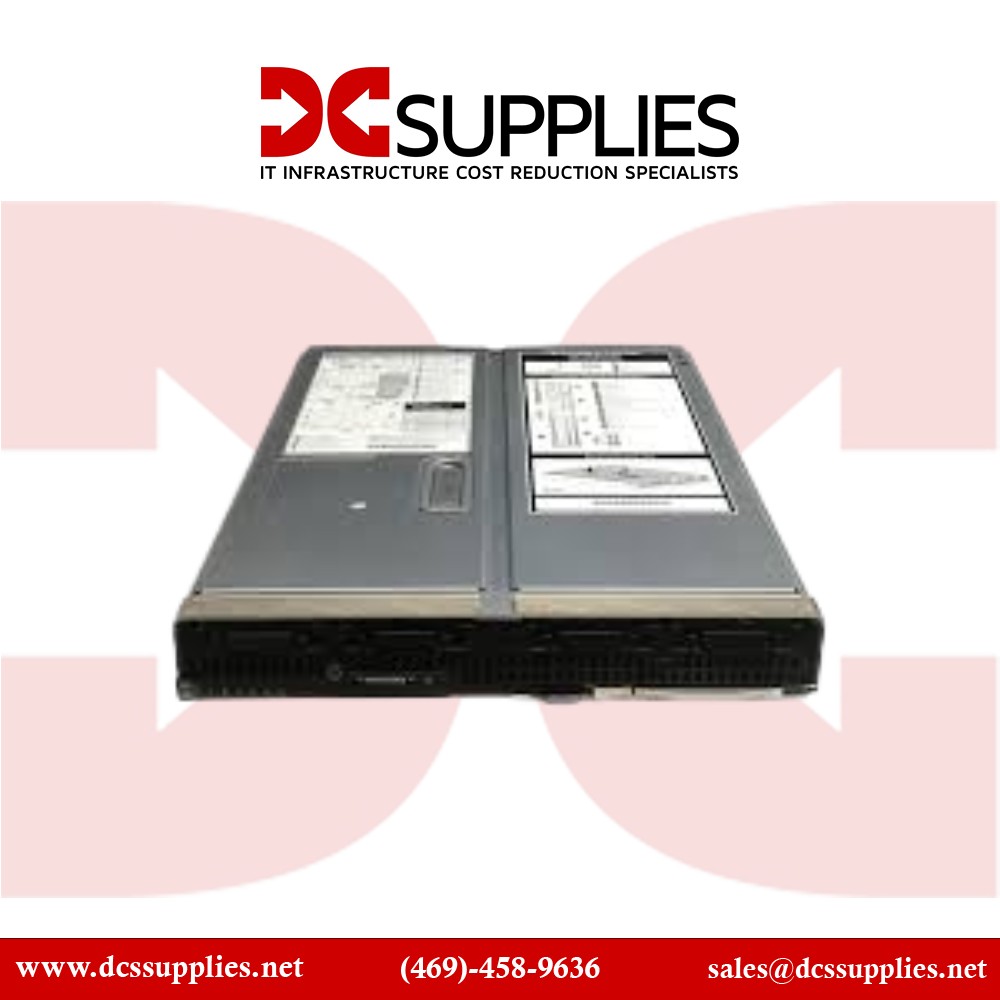

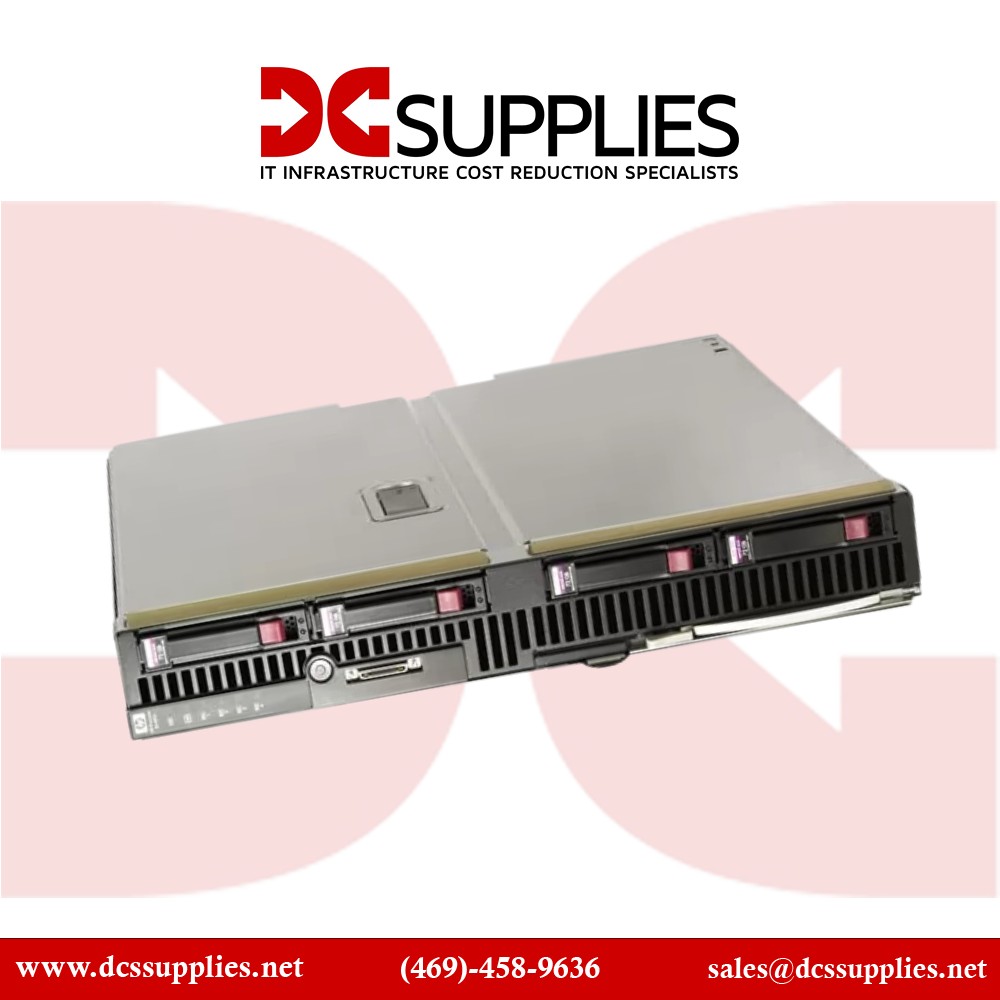

HP 416669-B21 ProLiant BL480c Server Blade

New

In Stock

HP 4TB SAS Hard Drive - 10K RPM for high-speed, reliable enterprise storage
×




$242.90

  • Refurbished

Detailed Specifications

HP 416669-B21

ProLiant BL480c Server Blade

The HP 416669-B21 ProLiant BL480c is a high-performance server blade equipped with twin Intel Xeon 5160 CPUs at 3.00 GHz and 4 GB of fully buffered memory. Tailored for virtualization, database, and enterprise workloads, it delivers powerful compute capability in a compact blade format, ideal for densely populated server environments.

Features :

Designed for infrastructure-intensive applications, this blade manages up to four hot‑plug SAS or SATA drives with onboard P400i RAID support, offering flexible storage configurations. The presence of iLO 2 simplifies remote management, while four high-speed NICs provide robust network connectivity without additional hardware.

Advanced Options :

With three mezzanine slots, the BL480c scales with optional 10 GbE, Fibre Channel, or InfiniBand adapters for enhanced I/O and interconnect performance. It supports up to 48 GB of memory across 12 FBDIMM slots, making it capable of handling virtual machines, databases, and transaction-heavy services.

Product Key Features

  • Dual Intel Xeon 5160 3.00 GHz processors (1333 MHz FSB, 4 MB L2 cache per CPU)

  • 4 GB DDR2‑667 Fully Buffered Registered Memory, expandable to 48 GB

  • Four embedded Gigabit NIC ports + iLO 2 management

  • Up to 4 SFF hot‑plug SAS/SATA drive bays & P400i smart array with RAID 0/1/5

  • Up to 3 mezzanine slots for I/O expansion (10GbE, Fibre Channel, InfiniBand)

  • Fits HP BladeSystem c3000/c7000 enclosures with scalable, hot‑swap architecture

Reliability & Performance :

Engineered for HP’s c‑Class blade enclosures, the server blade supports hot‑swappable components—CPUs, memory, drives, and I/O modules—for zero-downtime servicing. Its Intel 5000P chipset, energy‑saving mechanisms, redundant embedded NICs, and management features ensure enterprise-grade uptime and security.

Key Features :

  • Dual Intel Xeon 5160 processors (3.00 GHz, 4 MB L2 cache, 1333 MHz FSB)

  • 4 GB DDR2‑667 FBDIMM memory (supports up to 48 GB)

  • Four embedded Gigabit Ethernet NICs + iLO 2 management port

  • P400i RAID controller with 4 SFF hot‑plug drive bays

  • Up to three mezzanine expansion slots

  • Fits HP c3000 and c7000 BladeSystem enclosures

Specifications :

SpecificationDetails
Model Number 416669-B21
Form Factor Full-height Blade (c3000/c7000)
Processors 2× Intel Xeon 5160 (3.00 GHz, 4 MB L2, 1333 MHz FSB)
Memory (Std/Max) 4 GB (4×1 GB) / Expandable to 48 GB DDR2‑667 FBDIMM
Chipset Intel 5000P
Storage Bays 4× SFF hot-plug SAS/SATA
RAID Controller Smart Array P400i with 256 MB cache, RAID 0/1/5 (optional RAID 6)
Embedded Networking 2× NC373i Multifunction GbE (TCP/IP, iSCSI); 1× NC326i Dual GbE; 1× iLO2
Mezzanine Slots 3× (two ×8, one ×4 electrical) for expansion
Management Integrated Lights-Out 2 (iLO 2)
Max Internal Storage Up to 584 GB SAS or 480 GB SATA (4× SFF)
Blade Dimensions 7.15″ × 2.03″ × 20.06″ (full-height)
Weight 18.7–21.0 lb depending on configuration
Compatibility HP BladeSystem c3000 & c7000
