RB2011UiAS-RM View larger

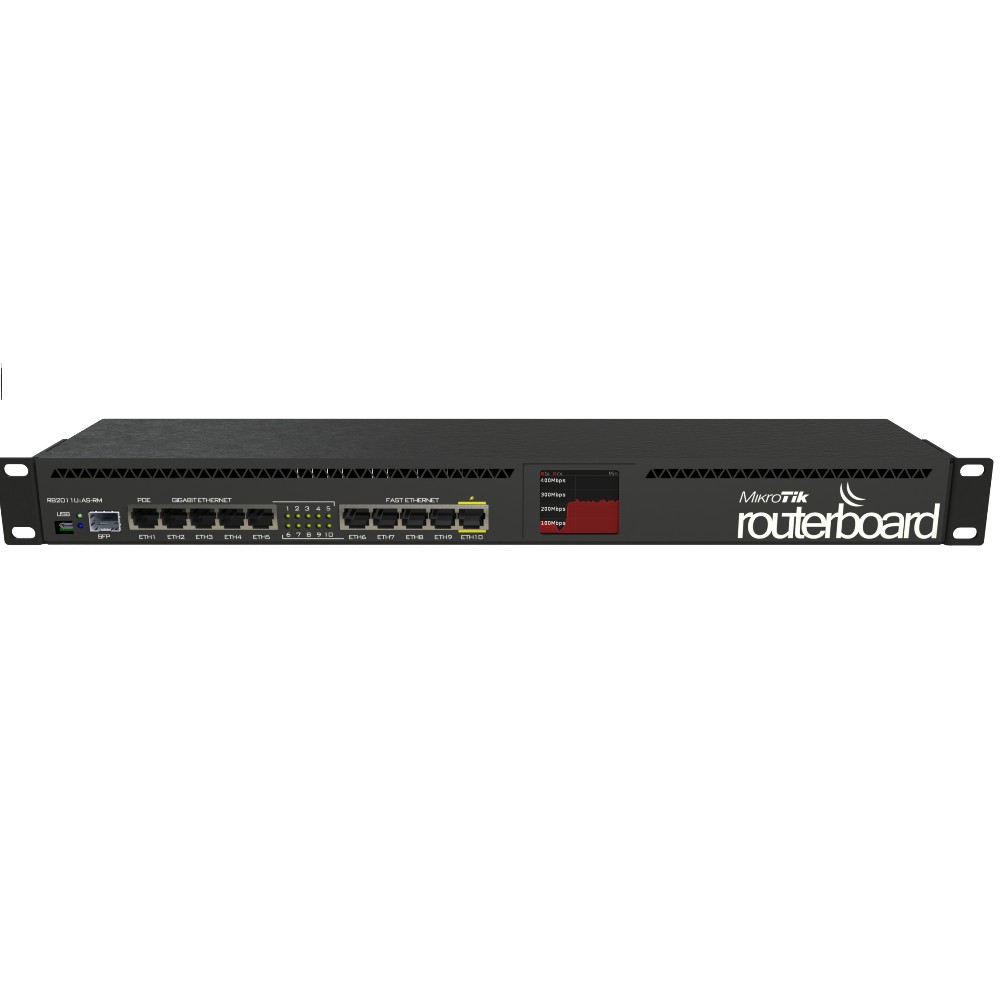

MikroTik RB2011UiAS-RM Routerboard 5xLAN 5xGigabit

RB2011UiAS-RM

New

MikroTik RB2011UiAS-RM Routerboard  5xLAN 5xGigabit

×




Routerboard, Router, Rackmount Router, MikroTik RouterBOARD, RB2011UiAS-RM, RB2011UiAS-RM datasheet, MikroTik RB2011UiAS-RM, RB2011UiAS-RM Routerboard, rb2011uias-rm manual, mikrotik rb2011uias rm reset

Detailed Specifications

MikroTik RB2011UiAS-RM Routerboard  5xLAN 5xGigabit

Overview :

The outboard RB2011UiAS-RM, in comparison with the RB2011UiAS-RMseries, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has a RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is a RB2011UiAS-RM PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

About this item :

  • The RB2011UiAS-RMis a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
  • RouterBOARD 2011UiAS-RM, in comparison with RB2011UiAS-RMseries, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB).
  • Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
  • There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
  • RouterBOARD RB2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.

Specifications :

Details RB2011UiAS-RM
Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 443 x 92 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C
MTBF Approximately 200'000 hours at 25C
