APC AP9571A Rack PDU Basic 1U 30A 208V 10 C13 Outlets View larger
Previous Next

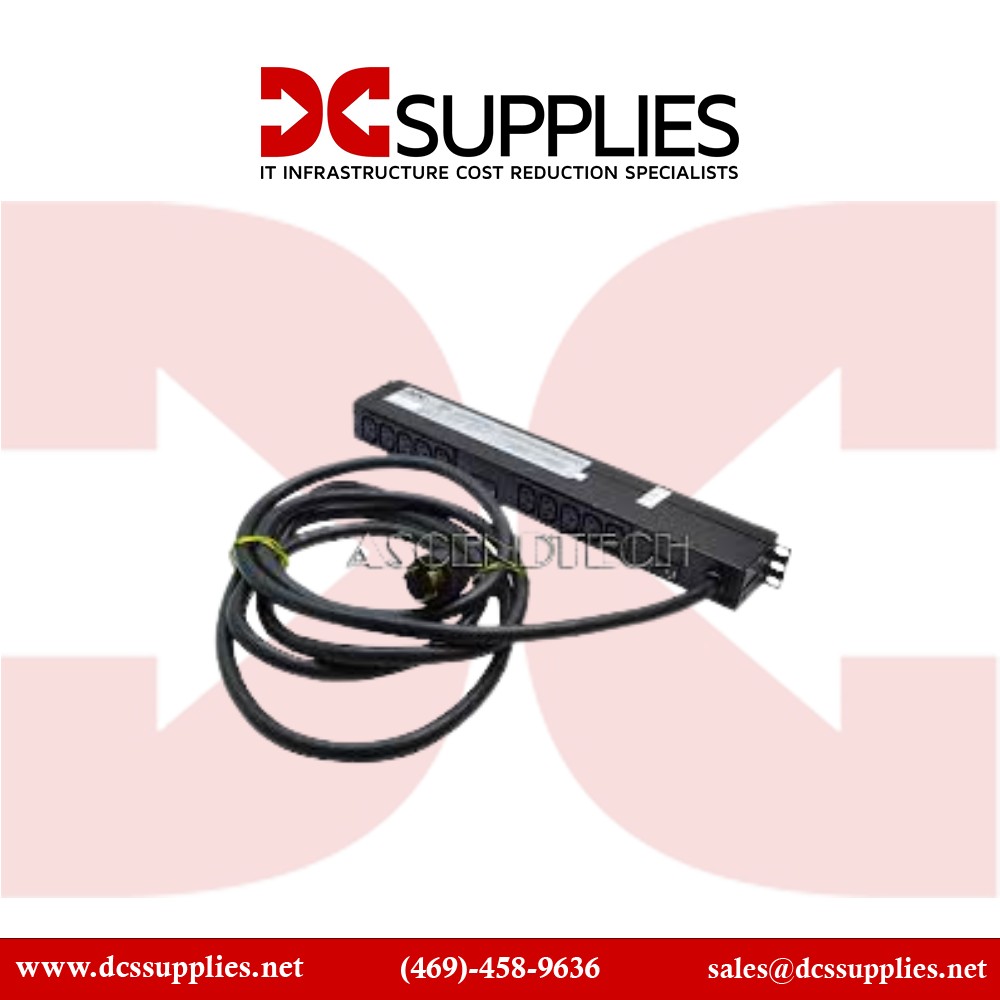

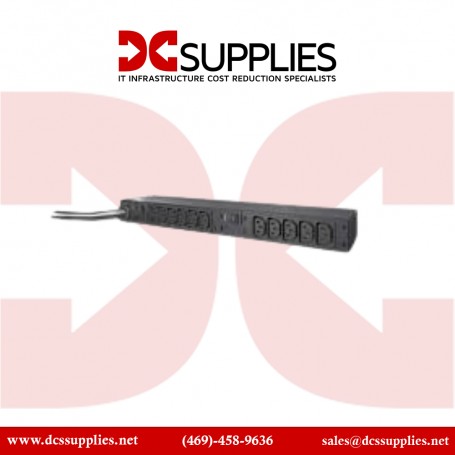

APC AP9571A Rack PDU Basic 1U 30A 208V 10 C13 Outlets

New

In Stock

APC 1U basic rack PDU with 30A, 208V, and 10 C13 outlets for power distribution
×




$334.90

  • New

Detailed Specifications

APC

AP9571A

Basic Rack PDU – 1U 30A 208V with 10 C13 Outlets

The APC AP9571A Basic Rack PDU is a robust 1U power distribution unit delivering 30 A at 208 V through ten hot-swappable C13 outlets. Perfect for data centers, telecom closets, and network racks, it simplifies power delivery with a single NEMA L6‑30P input.

Features

Built for simplicity and durability, this PDU provides cost-effective power distribution without remote monitoring. It's ideal where clean, reliable AC power is needed without added complexity—supporting servers, switches, routers, and other rack-mounted equipment efficiently.

Advanced Options

Its horizontal 1U form factor fits standard racks and enclosures, with included brackets for flexible mounting. Two internal 20 A breakers allow quick restoration after overloads, minimizing downtime.

Product Key Features

  • 10 × IEC C13 outlets delivering 4992 VA total

  • Single-phase input via NEMA L6‑30P (30 A)

  • Dual 20 A resettable breakers for overload protection

  • Horizontal 1U rack-mount with included hardware

  • 12 ft (3.7 m) power cord

  • Durable black chassis, UL/cUL/PSE certified

Reliability & Performance

Designed to handle up to 4992 VA (30 A at 208 V), the AP9571A is built from high-quality materials to withstand rigors of 24/7 operation. It operates quietly across a wide range of environmental conditions and meets key safety standards including UL 60950. Energy-efficient and eco-conscious, its packaging includes recycled materials and APC’s take-back program.

Key Features (Bullet List)

  • 10 x IEC C13 outlets

  • NEMA L6‑30P input, 30 A

  • Dual internal resettable breakers

  • Horizontal 1U rack-mount design

  • 12 ft (3.7 m) power cord

  • UL/cUL/PSE safety certifications

Specifications :

SpecificationDetails
Model Number AP9571A
Product Type Basic Rack PDU
Form Factor Horizontal 1U
Input Voltage 200–240 VAC (nominal 208 VAC)
Input Plug NEMA L6‑30P (30 A, 3‑wire)
Maximum Current 30 A (24 A derated per UL in NA)
Total Power Capacity 4992 VA
Outlets 10 × IEC 60320 C13
Circuit Protection Dual internal 20 A resettable breakers
Power Cord Length 12 ft (3.7 m)
Dimensions (H×W×D) 1.73″ × 17.52″ × 3.03″ (44 × 445 × 77 mm)
Net Weight 5.62 lb (2.55 kg)
Operating Temperature –5 °C to 45 °C (23 °F to 113 °F)
Humidity 5%–95% non-condensing
Certifications UL, cUL, PSE, RoHS
Warranty 2-Year Repair or Replace
