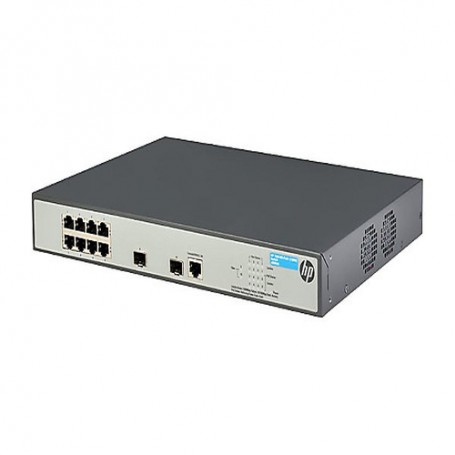

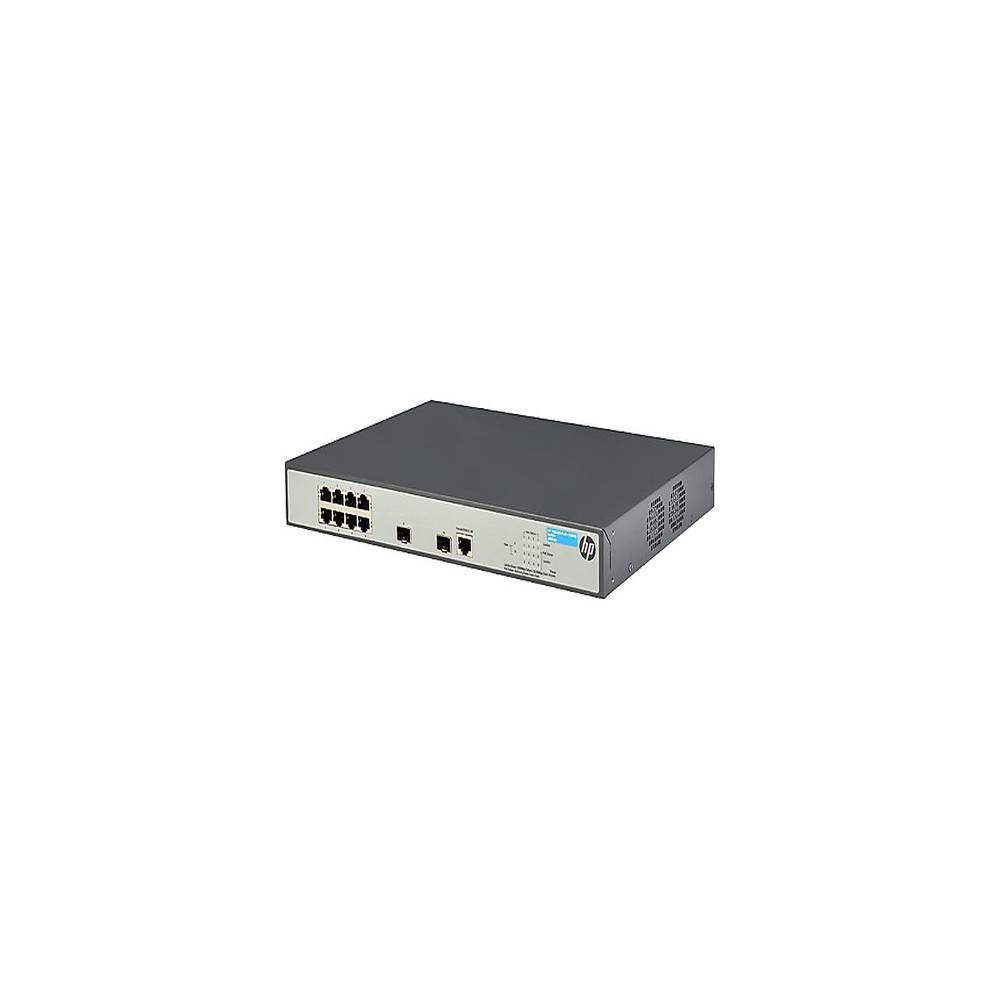

The HPE 1920 Switch Series, part of the HPE OfficeConnect portfolio, is designed for smaller organizations dealing with bandwidth-demanding applications. The switches are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches deliver advanced smart-managed fixed configuration Gigabit switches that build on the marketing-leading price/performance of the HPE 1910 Switch Series. They feature a new 48-port PoE+ model, IPv6 support and advanced silicon technology.
Technical Specifications
Main Features
Switch
L3
managed
8 x 10/100/1000 (8 PoE+) + 2 x Gigabit SFP
rack-mountable
PoE+ (180 W)
Capacity
IPv4 routing table entries
32
IPv6 routing table entries
Dimensions & Weight
11.8 in
1.7 in
7.05 lbs
10.2 in
Environmental Parameters
10 - 90% (non-condensing)
10 - 95% (non-condensing)
104 °F
158 °F
32 °F
-40 °F
Flash Memory
32 MB
Header
HPE
PC
United States
English
Aruba Instant AP
1920-8G-PoE+
1
HPE
Interface Provided
Management
1
Console
PoE+
RJ-45
8
1000Base-T
SFP
2
1000Base-X
Miscellaneous
RADIUS, Secure Shell (SSH)
Gray
CAN/CSA C22.2 No. 60950-1-03, CISPR 22 Class A, EN 60950-1, EN 61000-3-2:2000, EN 61000-3-3, EN55022 Class A, EN55024, FCC Class A certified, FCC Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950, VCCI Class A, WEEE
Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, Class of Service (CoS), DHCP client, DHCP relay, Dual firmware images, Flow control, IGMP snooping, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port isolation, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Single IP Management (SIM), Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority Queuing (SPQ), Syslog support, VLAN support, Weighted Round Robin (WRR) queuing
