HPE Aruba R8R46A Instant On 1430 8G Class 4 PoE 64W Switch View larger
Previous Next

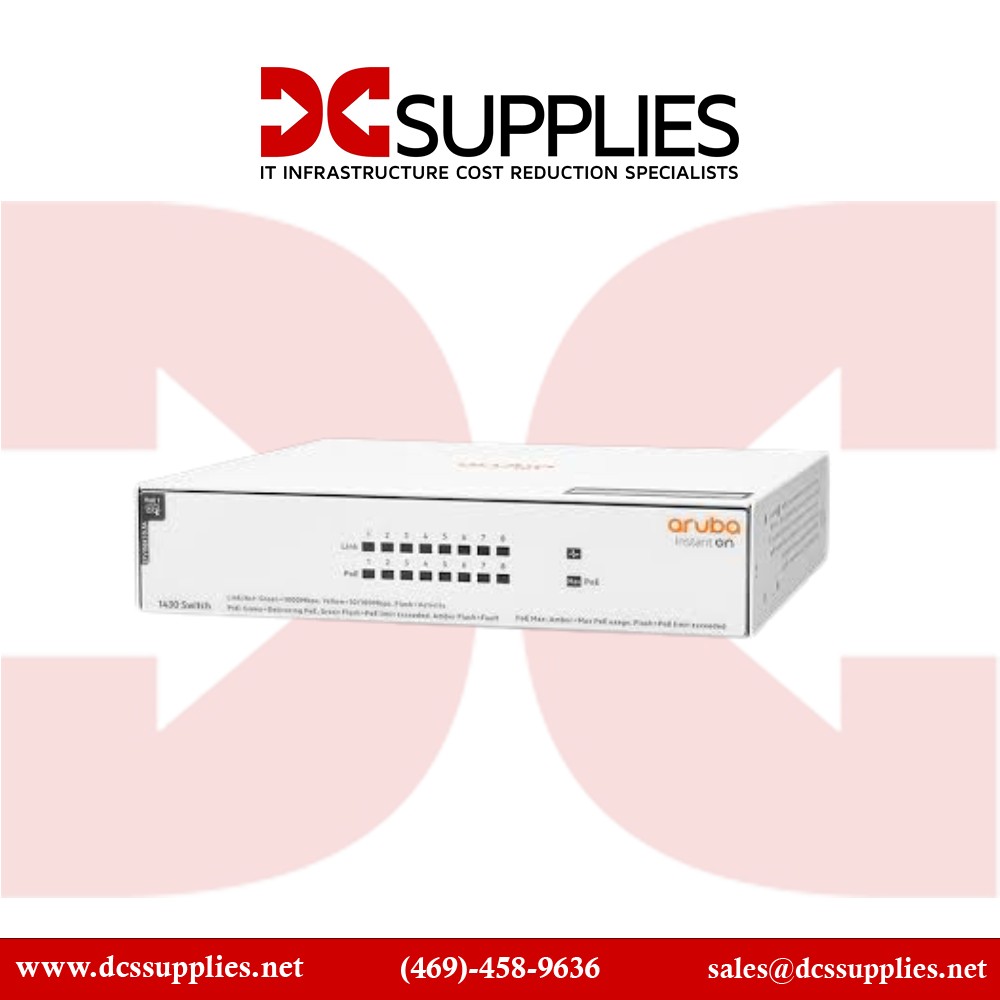

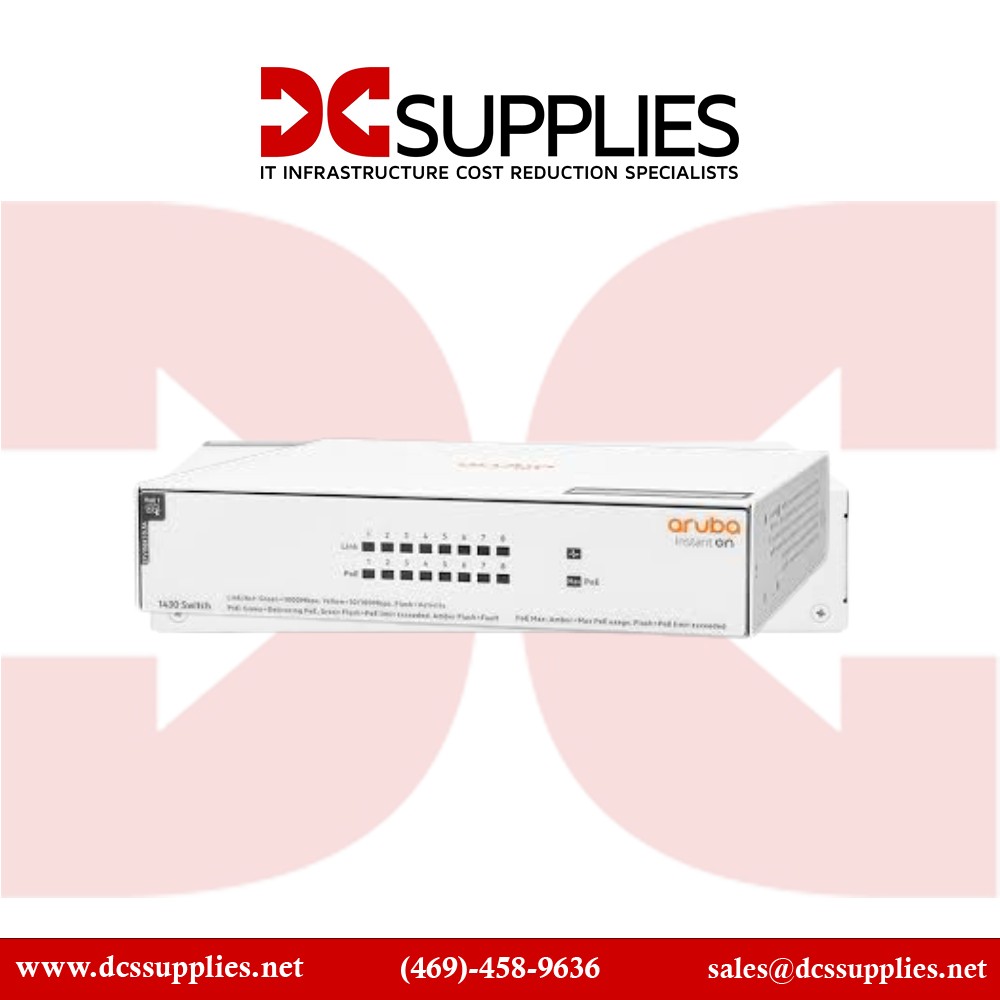

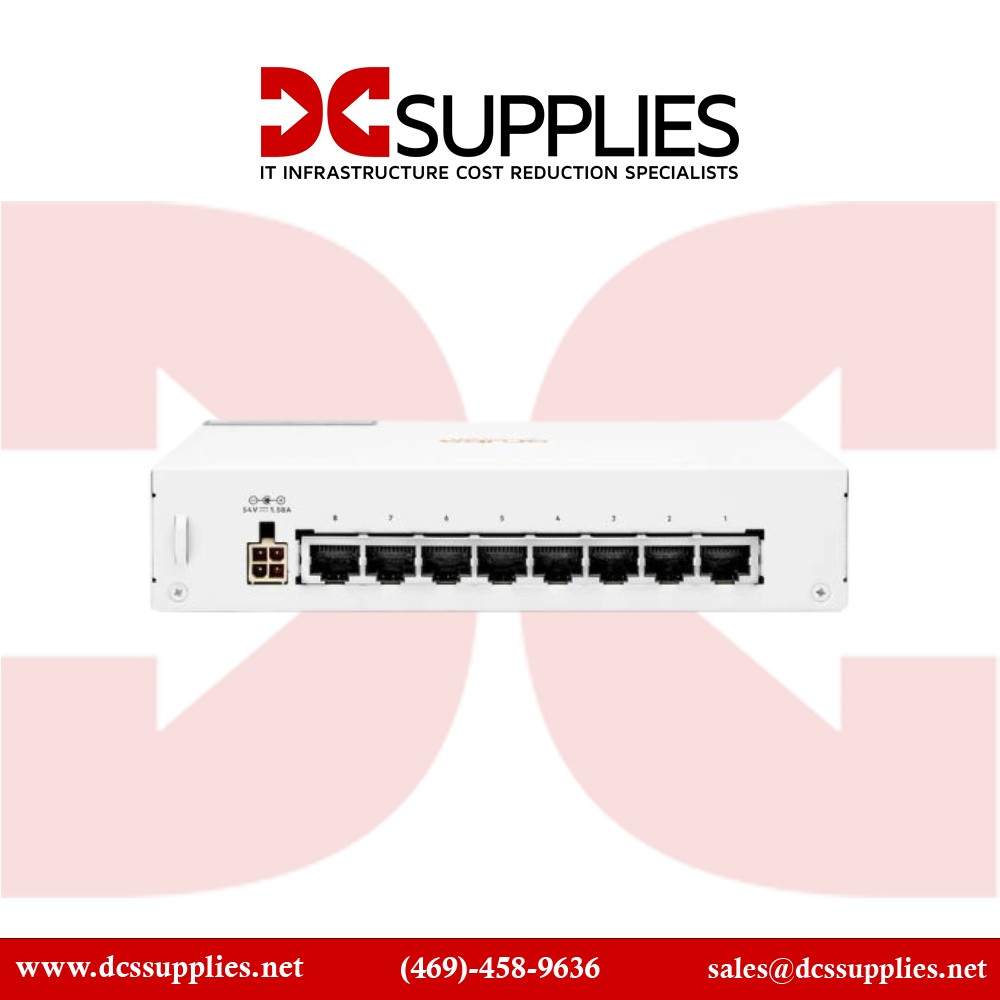

HPE Aruba R8R46A Instant On 1430 8G Class 4 PoE 64W Ethernet Switch

New

In Stock

HPE Aruba R8R46A Instant On 1430 8G PoE Switch with 64W power budget
×




$99.99

  • New

Detailed Specifications

HPE Aruba

R8R46A

Instant On 1430 8G Class 4 PoE 64 W Ethernet Switch

The HPE Aruba R8R46A Instant On 1430 is an 8-port unmanaged gigabit Ethernet switch with up to 64 W total PoE power, tailored for small businesses, home offices, or edge environments that require simple, silent, and reliable network connectivity with powered devices

Features

Engineered for quick deployment, this fanless Class 4 PoE switch provides PoE on all eight ports—ideal for VoIP phones, access points, surveillance cameras, and IoT devices. With zero configuration needed, it automatically negotiates PoE and gigabit speeds, streamlining installation and reducing IT overhead.

Advanced Options

It operates silently in noise-sensitive zones and features Energy-Efficient Ethernet (IEEE 802.3az) to reduce power during idle periods, lowering operating costs.

Product Key Features

  • 8 RJ‑45 10/100/1000 Mbps ports with Class 4 PoE

  • 64 W total PoE power budget (up to 30 W per port)

  • Unmanaged, plug-and-play hatch from the box

  • Fanless design for silent operation

  • Compact metal chassis, rack/table/wall/under‑table mounting

  • Energy-efficient with IEEE 802.3az support

Reliability & Performance

This switch blends reliability with simplicity—its metal casing enhances longevity while fanless cooling ensures silent, maintenance-free operation. With PoE capability on every port, installers gain flexibility for powering remote devices without extra injectors. Its support for QoS (IEEE 802.1p) and jumbo frames ensures smooth performance for voice and video traffic.

Key Features (Bullet List)

  • 8× Gigabit RJ‑45 PoE ports

  • Class 4 PoE with 64 W budget

  • No‑config unmanaged operation

  • Fanless, silent metal enclosure

  • Flexible mounting options

  • Energy-efficient IEEE 802.3az

Specifications :

SpecificationDetails
Model Number R8R46A
Product Type Unmanaged Gigabit Ethernet Switch with PoE
Ports 8 × RJ‑45 10/100/1000 Mbps with PoE
PoE Standard IEEE 802.3af/at (Class 4)
Total PoE Budget 64 W
Switching Capacity 16 Gbps
Forwarding Rate 11.90 Mpps
Packet Buffer 2 Mb
Memory 128 Kb EEPROM
QoS Support IEEE 802.1p
Energy Features IEEE 802.3az, flow control, jumbo frames
Dimensions (L×W×H) ~5.91 × 6.97 × 1.46 in (150 × 177 × 37 mm)
Weight ~1.7 lb (0.77 kg)
Power Consumption Max 90 W / Idle ~4.1 W
Power Source External power adapter, 100–240 VAC
Cooling Fanless
Mounting Options Rack, tabletop, wall, under-table
Warranty Limit‑lifetime hardware; 2‑yr phone/chat support
