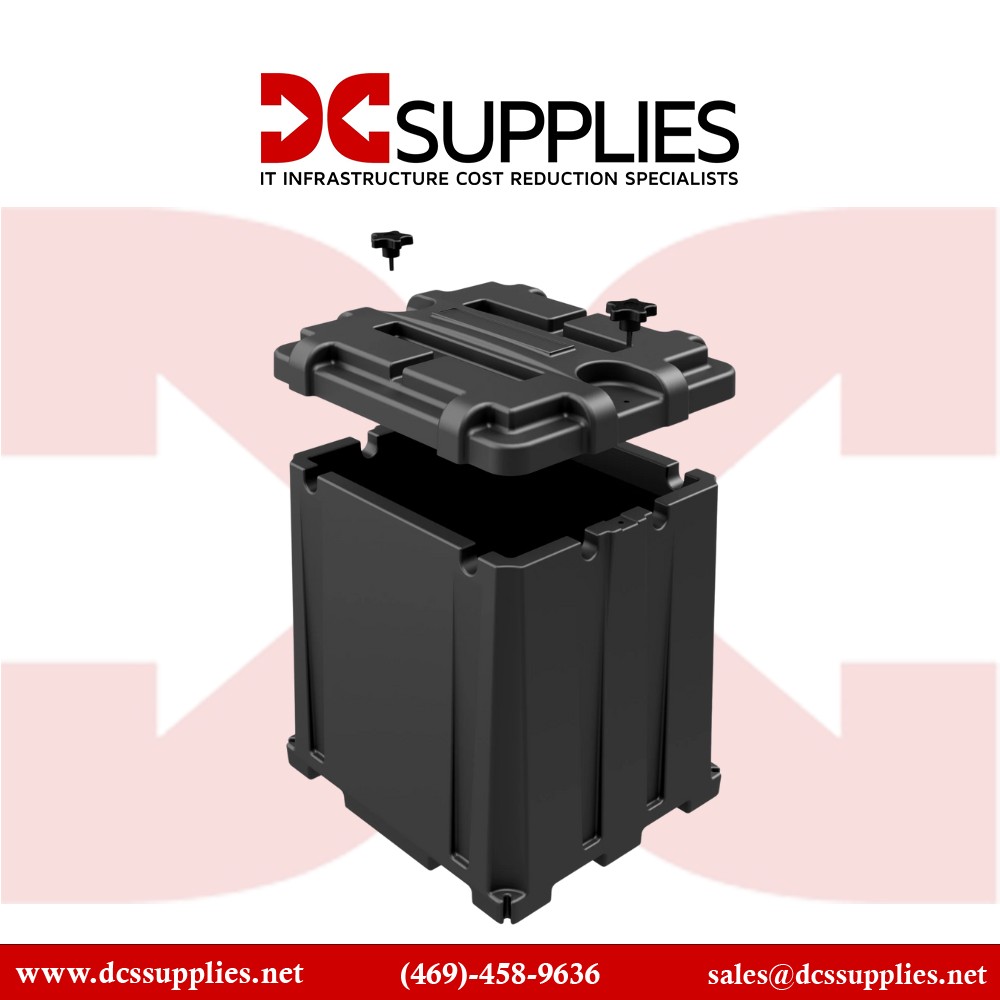

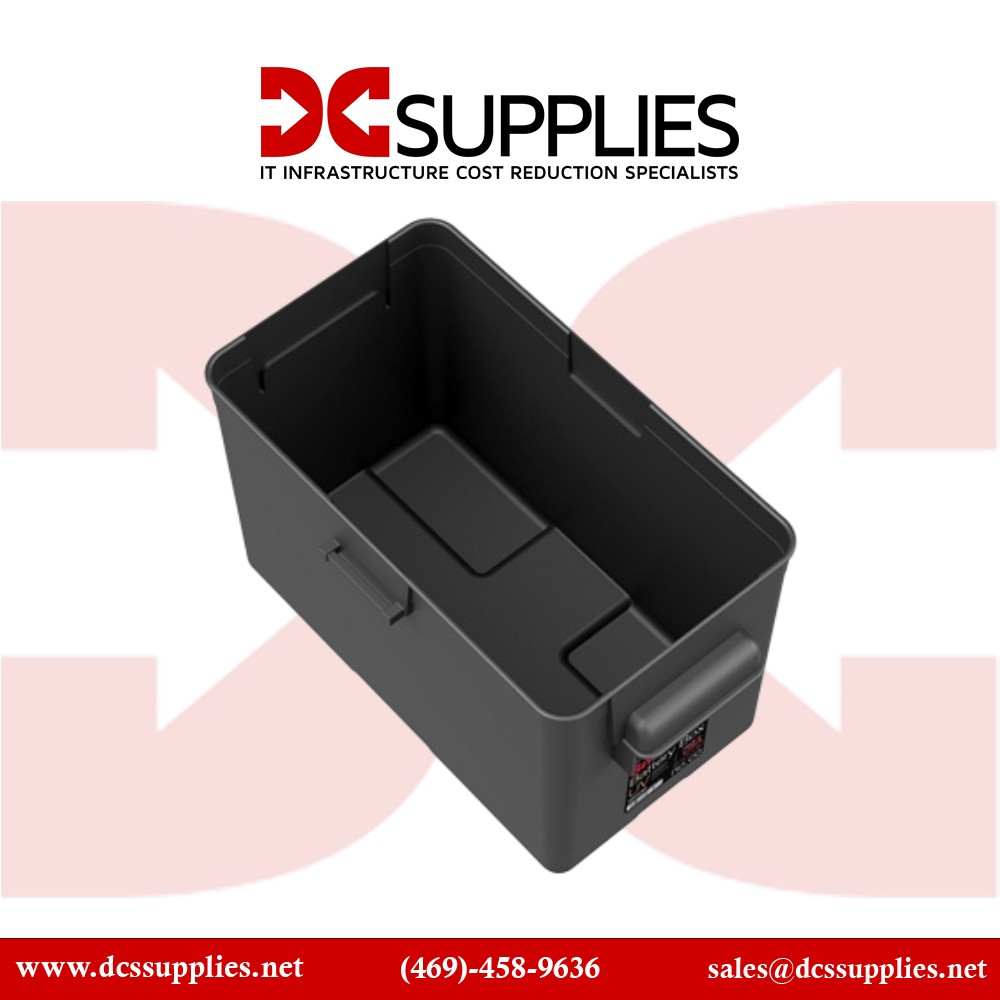

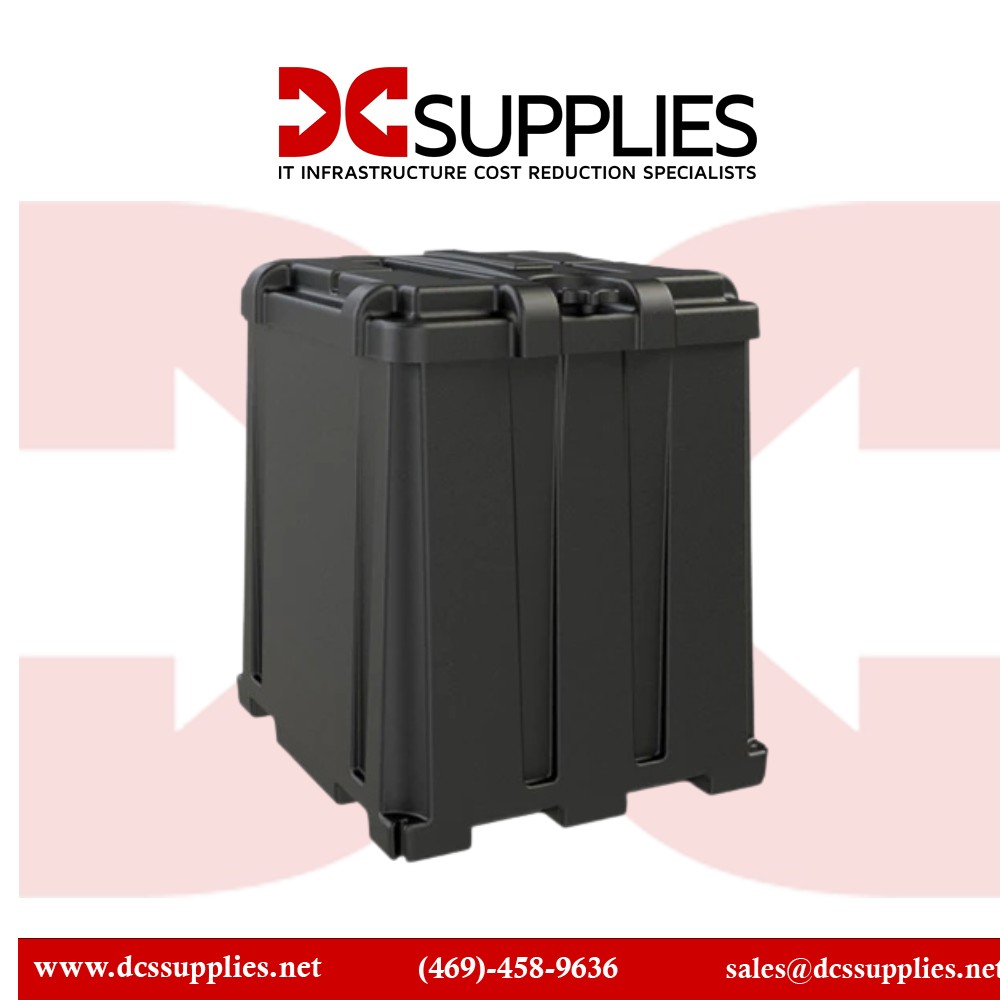

Noco HM485 Dual 8D Commercial Grade Battery Box

New

Noco HM485 Dual 8D Commercial Grade Battery Box
×




  • New

Detailed Specifications

Noco HM485

Dual 8D Commercial‑Grade Battery Box

The NOCO HM485 is a rugged, commercial-grade battery box designed to house two 8D lead‑acid batteries. Built for marine, RV, generator, and heavy-duty commercial applications, it offers maximum protection, ventilation, and compliance with key marine safety standards.

Features

Crafted via rotational molding in the USA, the HM485 delivers exceptional toughness—maintaining impact resilience down to –20 °F, resisting UV, acid, oil, and gasoline Its full-flow ventilated lid ensures hydrogen gas safely exits the enclosure, while an internal reservoir captures any acid spills, keeping surroundings protected .

Advanced Options

The four-corner fastening system and captive, knob-secured lid anchor the unit even in marine or off-road environments. With cable-entry options sized for up to 4/0 gauge, it supports heavy-duty power systems in generators, commercial equipment, boats, and trailers

Product Key Features

  •  Holds two Group 8D lead-acid batteries securely

  •  Four‑corner fastening system with captive lid for rock‑solid installation

  •  Full‑flow ventilation plus internal acid‑collection reservoir

  •  Impact‑resistant to –20 °F and UV/oil/gas resistant

  •  Oversized cable ports to accommodate heavy 4/0 AWG cable

  •  Meets USCG 183.420 & ABYC E‑10.7 marine safety standards

Reliability & Performance

This battery box exceeds marine safety protocols (USCG CFR 183.420, ABYC E‑10.7), ensuring both compliance and rugged dependability Its reinforced handles make transport effortless, while the captive lid and oversized ports ensure secure, easy installation. With a 1‑year warranty and built-in corrosion resistance, it's designed for long-term heavy-duty use.

Key Features (Bullet List)

  • Accommodates two Group 8D lead‑acid batteries

  • Four‑corner fastening system with captive lid

  • Full-flow ventilation + internal acid reservoir

  • Impact‑ and UV‑resistant down to –20 °F

  • Supports heavy‑gauge cable (up to 4/0 AWG)

  • Meets USCG & ABYC marine safety standards

SpecificationDetails
Model Number HM485
Design Rotationally molded, snap‑top battery box
Battery Fit Dual Group 8D lead‑acid batteries
Internal Dimensions 21.0 × 23.0 × 10.6 in (533 × 584 × 269 mm)
External Dimensions 26.4 × 24.4 × 12.5 in (671 × 620 × 318 mm)
Weight (empty) 16.4 lbs (7.44 kg)
Temperature Tolerance –20 °F to +320 °F (–29 °C to +160 °C)
Cable Port Capacity Accommodates up to 4/0 AWG cable
Certifications USCG CFR 183.420, ABYC E‑10.7
Ventilation Lid vents with multiple exit points + acid reservoir
Cable Entry Ports Oversized for thick gauge wires
Mounting System Integrated mounting feet; no template required
Handles Reinforced for lifting and transport
Color / Material Black, industrial-grade plastic
