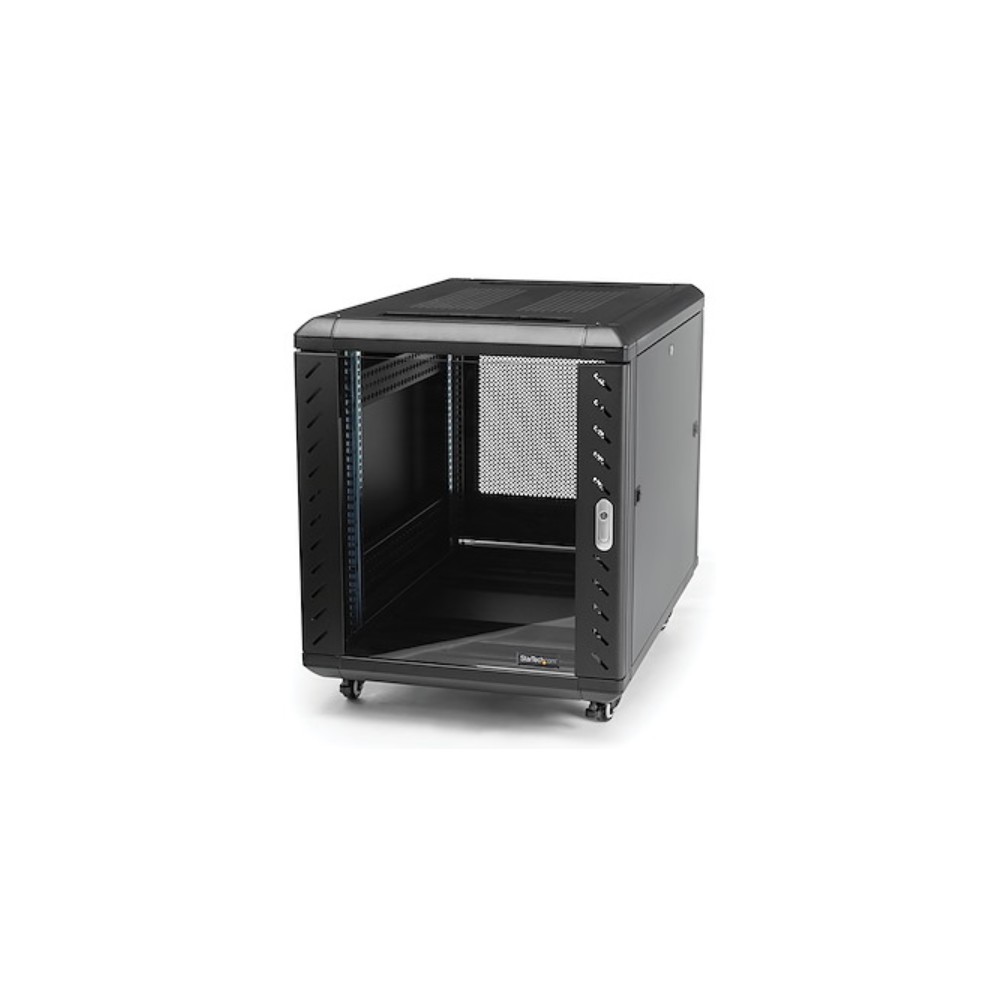

StarTech.com RK1236BKF 12U AV Rack Cabinet - Network Rack with Glass Door - 19 inch Computer Cabinet for Server Room or Office
Overview RK1236BKF
This RK1236BKF server rack provides 12U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19" rackmount devices such as Dell, HP, and IBM servers along with telecommunication and A/V equipment. The RK1236BKF rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs).
This RK1236BKF rack has been engineered with different features that enable you to easily incorporate plenty of equipment.
With adjustable mounting rails, you can easily change the rail depth to up to 29 in. (740mm). These rails ensure the cabinet is widely compatible with your standard rack-mountable equipment. The added depth also provides support for additional cable and power management behind your equipment.
The rack RK1236BKF features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.
To ensure you have full visibility of your equipment while securely locking it up, this rack RK1236BKF has a stylish glass window on the front door. The glass door looks great in any server room and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.
The rack also has removable side panels with independent locks and quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.
- Increase visibility and security with a glass door
- Easy equipment installation
- Keep your equipment at an optimal temperature with passive cooling
- Mount equipment at the top of the rack with a ceiling panel that features square venting holes that are cage-nut compatible
- Easy assembly at the point of installation for rapid deployment
- Front and side mounting holes to accommodate different types of equipment
Technical specifications
HARDWARE
Frame Type Enclosed Cabinet
Front Door Construction Steel with Glass Window
Front Door Features Secure Key Lock with Removable Front Door
Industry Standards EIA/ECA-310-E
Mounting Hole Types Square (For Cage Nut)
Mounting Rail Profile G-Shape
Rack Type 4-Post
Rear Door Construction Steel Mesh
Side Panel Construction Aluminum
Side Panel Features Secure Key Lock with Removable Side Panels
Special Features Casters (Included)
Easy Assembly
Grounding Lug(s)
Leveling Feet
U-Markings
U Height 12U
Wall-mountable No
PERFORMANCE
Weight Capacity (Stationary) 1768 lb [800 kg]
PHYSICAL CHARACTERISTICS
Color Black
Rear Door Features Secure Key Lock with Removable Back Door
PRODUCT MEASUREMENTS
Internal Depth 29.1 in [74 cm]
Internal Width 23.6 in [60 cm]
Maximum MountingDepth 29.1 in [74 cm]
Minimum MountingDepth 5.5 in [14 cm]
Product Height 26.1 in [66.3 cm]
Product Height with Casters 28.9 in [73.4 cm]
ProductLength 35.4 in [90 cm]
ProductWidth 23.7 in [60.3 cm]
Weight of Product 96.2 lb [43.5 kg]
PACKAGING INFORMATION
Flat Pack (Assembly Required) Yes
Package Height 12.7 in [32.2 cm]
Package Length 38.3 in [97.4 cm]
Package Width 28.9 in [73.4 cm]
Shipping (Package) Weight 116.3 lb [52.6 kg]
WHAT'S IN THE BOX
Included in Package
3 - Bottom Panel
2 - Side Panel and Frame
1 - Top Panel
4 - Cross Brace
8 - Plastic Corner Caps
4 - Casters
2 - Sets of Keys
4 - Adjustable Feet
20 - M6 Cage Nuts
20 - M6 Screws
2 - Allen Wrench
1 - Assembly Screw Kit
