Detailed Specifications

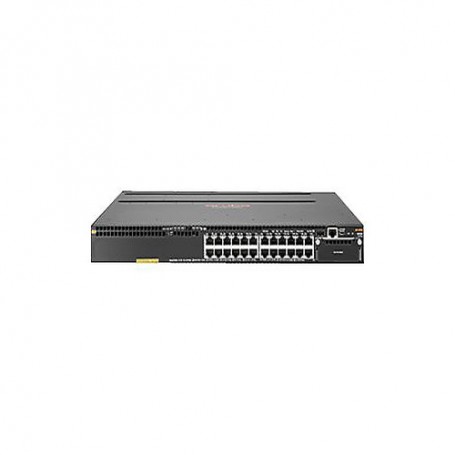

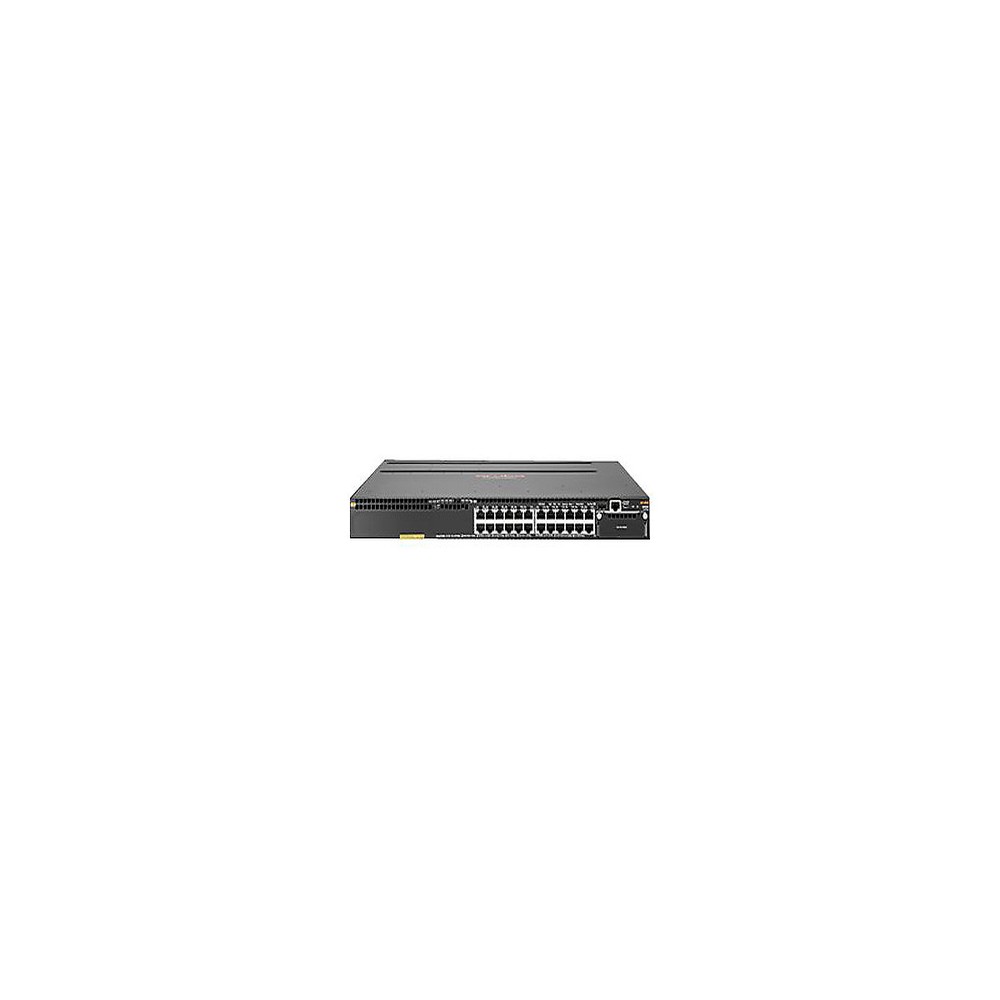

HPE JL073A Aruba 3810M 24G PoE+ 1-slot Switch - switch - 24 ports - managed - rack-mountable
Overview :
The HPE JL073A Aruba 3810 Switch Series is designed to meet the performance and resiliency demands of modern mobile-first campus networks. Leveraging a powerful ProVision ASIC and equipped to support high-speed Access Points (APs) with HPE Smart Rate multi-gigabit Ethernet, the Aruba JL073A 3810M ensures a superior application experience with minimal latency, robust virtualization capabilities through resilient stacking technology, and ample backhaul capacity with line rate 40GbE.
Key Features and Benefits:
The Aruba JL073A 3810M 24G PoE+ 1-Slot Switch offers 24 ports of Gigabit Ethernet connectivity, ideal for environments requiring high bandwidth and reliability. It supports Power over Ethernet Plus (PoE+) across all ports, enabling the deployment of power-hungry devices such as IP phones, wireless access points, and surveillance cameras without the need for additional power outlets.
Performance and Resilience:
With a robust switching fabric and line rate 40GbE capabilities, the switch ensures high-performance data transfer and scalability, making it suitable for growing network demands. It features advanced Layer 3 routing capabilities, enhancing network efficiency and supporting dynamic routing protocols for optimized traffic management.
Specifications :
| Product Name |
HPE Aruba 3810M 24G PoE+ 1-Slot Switch |
| Manufacturer Part Number |
JL073A |
| Product Type |
Layer 3 Switch |
| Manageable |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Number of Total Expansion Slots |
1 |
| Stack Port |
Yes |
| Media Type Supported |
Twisted Pair |
| Total Number of Network Ports |
24 |
| Redundant Power Supply Supported |
Yes |
| Form Factor |
Rack-mountable |
| Power Source |
Power Supply |
| Layer Supported |
3 |
| Compatible Rack Unit |
1U |
| Modular |
Yes |
| Uplink Port |
Yes |
| Port / Expansion Slot Details |
24 x Gigabit Ethernet Network
1 x Expansion Slot
|
| Height |
1.7" |
| Width |
17.4" |
| Depth |
17" |
| Product Model |
3810M 24G PoE+ 1-slot |
| Network Technology |
10/100/1000Base-T |
| Packaged Quantity |
1 |
