Detailed Specifications
Cloud Router Switch - 16x 25G SFP28, 2x 100G QSFP28, RouterOS

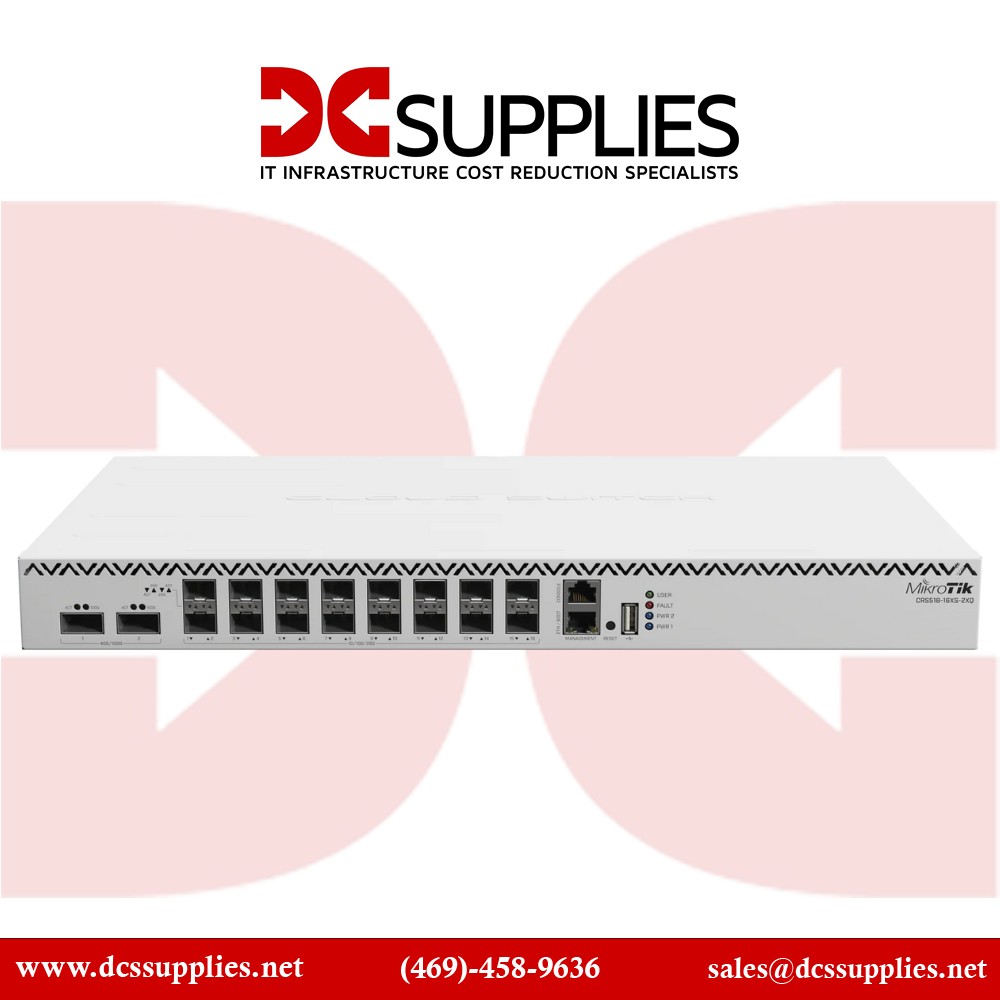

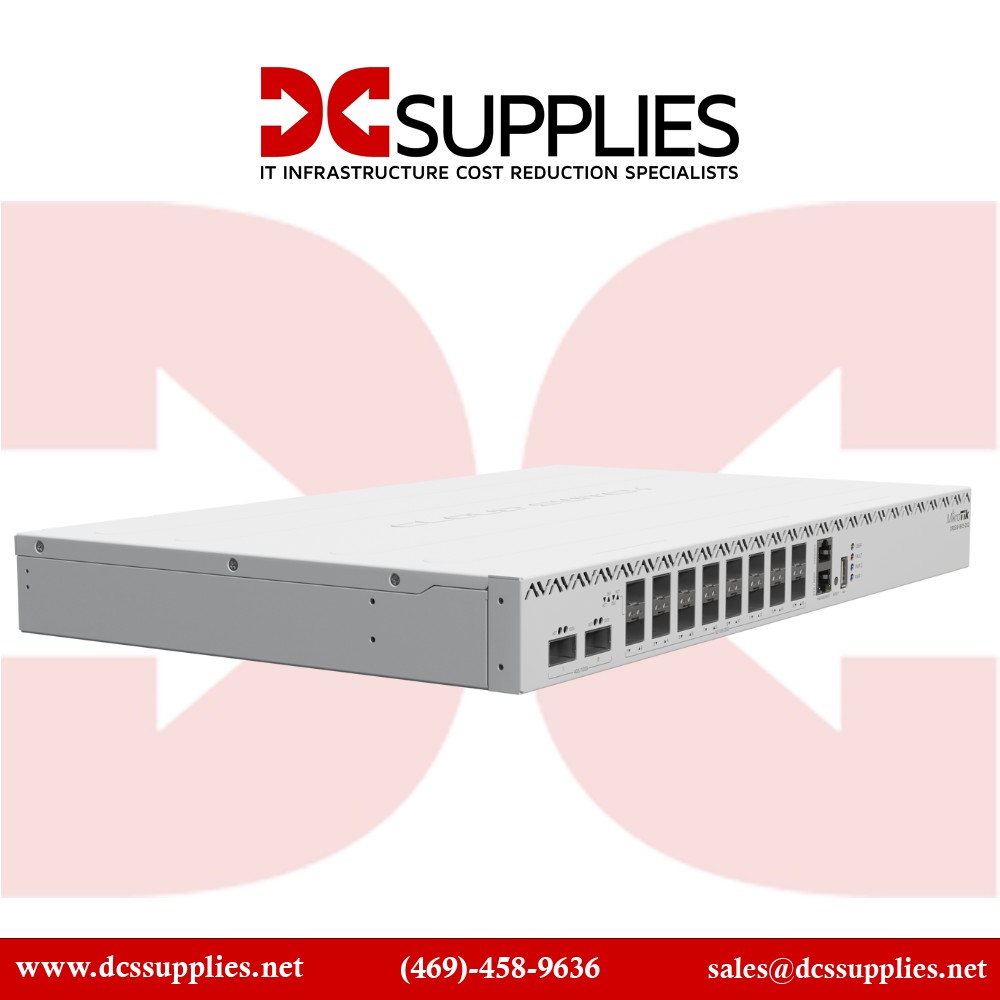

The MikroTik CRS518-16XS-2XQ-RM is a top-tier, carrier-grade Cloud Router Switch designed for ultra-high-speed networking. Featuring 2x 100G QSFP28 and 16x 25G SFP28 ports, this switch is purpose-built for core data center interconnects, ISP uplinks, or enterprise network backbones where bandwidth and performance are mission-critical.
Features
Combining raw hardware speed with the flexibility of RouterOS Level 6, the CRS518 enables powerful routing, switching, firewalling, MPLS, and VPN capabilities in one unit. The two 100G QSFP28 ports offer industry-standard uplink options to other high-capacity network equipment, while the 16x 25G SFP28 ports ensure future-proof edge or distribution layer expansion.
Advanced Options
A powerful Marvel Prestera switch chip, robust CPU, and full hardware offloading support maximum throughput. Dual hot-swappable PSUs and intelligent fan control ensure maximum uptime and thermal efficiency in demanding rack environments.
Product Key Features
2x 100 Gigabit QSFP28 ports for ultra-high-speed uplinks or core aggregation
16x 25G SFP28 ports for dense, high-throughput fiber distribution
Powered by RouterOS Level 6 with full Layer 3+ routing and advanced networking features

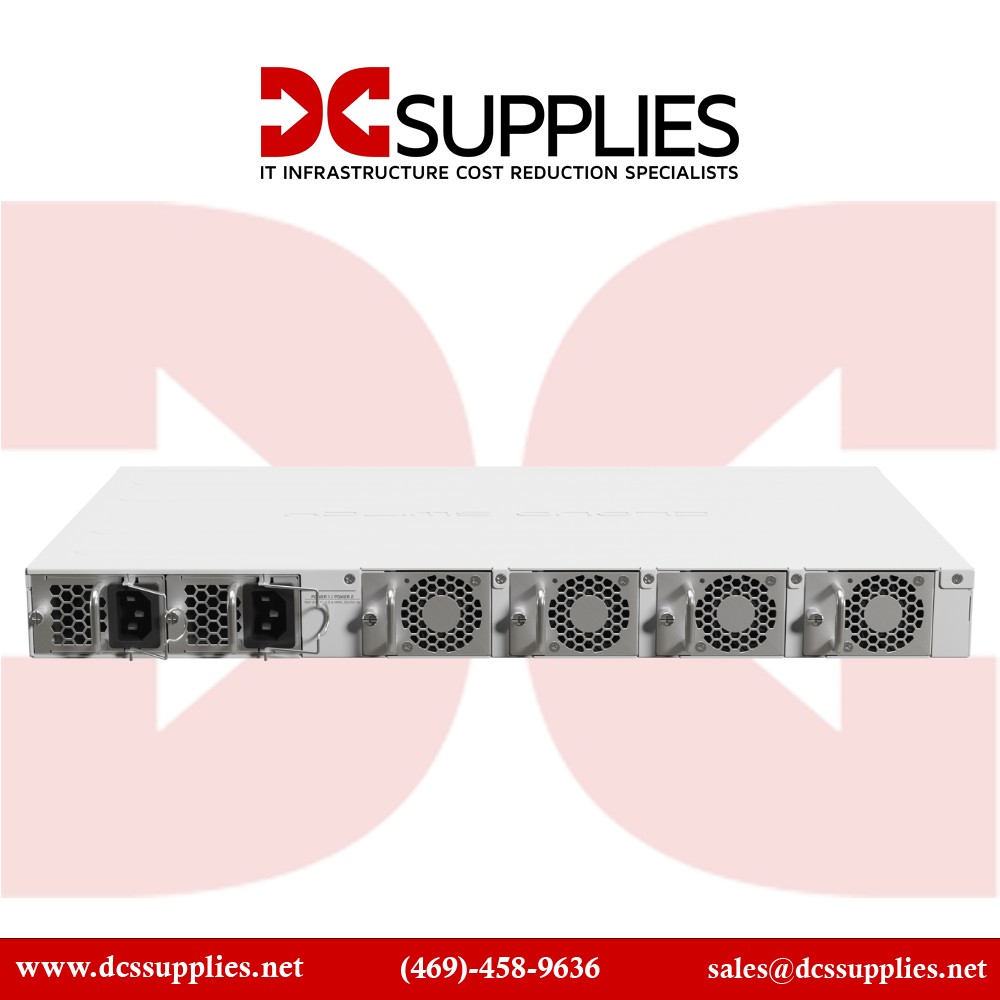

1U rackmount metal chassis with hot-swappable redundant PSUs
Active cooling with intelligent fan control for stable performance under load
Ideal for data centers, ISPs, and enterprise backbones
Reliability & Performance
With a 1.7 GHz quad-core CPU, RouterOS L6, and active cooling, the CRS518 delivers not just speed but serious enterprise-grade resilience. Designed for redundancy with dual power supplies and 100G-ready backbone capability, this model is perfect for core switches or high-density interconnects in scalable architectures.
Key Features :
2 × 100G QSFP28 uplink ports
16 × 25G SFP28 fiber ports
Quad-core ARMv8 CPU @ 1.7 GHz
2 GB RAM, 128 MB NAND storage
RouterOS Level 6 license
1U rackmount form factor
Dual hot-swappable AC power supplies
Hardware switching with L3 support
VLAN, ACL, MPLS, VRF, OSPF, BGP, VPN
Active cooling with smart fan control
| Specification | Details |
|---|
| Model Number | CRS518-16XS-2XQ-RM |
| Product Type | Cloud Router Switch (Layer 3+) |
| CPU | 1.7 GHz quad-core ARMv8 |
| RAM | 2 GB DDR4 |
| Storage | 128 MB NAND |
| Operating System | RouterOS Level 6 |
| QSFP28 Ports | 2 × 100G QSFP28 |
| SFP28 Ports | 16 × 25G SFP28 |
| Switching Capacity | 640 Gbps+ |
| Forwarding Rate | ~476 Mpps |
| Hardware Offloading | Yes - Layer 2 and Layer 3 |
| Power Supply | Dual hot-swappable redundant AC PSUs |
| Cooling | Active - Smart fan with temperature sensors |
| Form Factor | 1U rackmount |
| Dimensions | 17.4" × 9.8" × 1.7" (443 × 250 × 44 mm) |
| Weight | ~6.6 lbs (3.0 kg) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
