Detailed Specifications
Eaton B127A-002-BHPH2 2-Port HDMI over Cat6 Extender Kit Tripp Lite
Overview :
The Eaton B127A-002-BHPH2 is a 2-port HDMI over Cat6 extender kit that splits one HDMI source to two remote displays over standard Cat6 cabling. It supports up to 4K × 2160 at 60 Hz with 4:4:4 chroma, making it suitable for digital signage, conference rooms, classrooms, control rooms, and commercial AV installations.

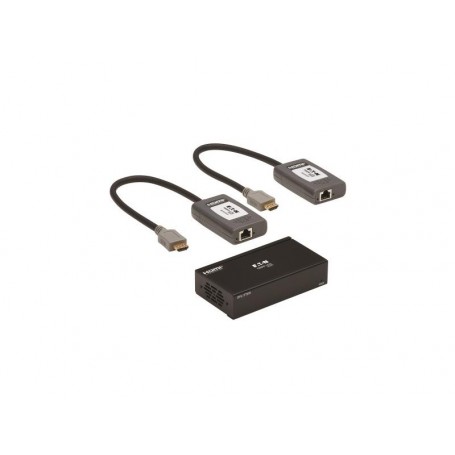

The kit includes the B127A-002-BH splitter and two B127A-1P0-PH pigtail receivers. Power over Cable (PoC) supplies power to the receivers through Cat6, while EDID and multi-resolution support allow connected displays to operate at different supported resolutions.
Key Features :
- 1 HDMI input to 2 HDMI outputs
- 4K × 2160 @ 60 Hz
- HDMI 2.0 with 4:4:4 chroma
- HDR and HDCP 2.2 support
- Up to 230 ft / 70.1 m over Cat6
- Power over Cable (PoC)
- True uncompressed 7.1-channel digital audio
- EDID and multi-resolution support
- CEC and 3D video support
- Wall, pole, or rack mounting
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | B127A-002-BHPH2 |
| Product Type | HDMI over Cat6 Extender/Splitter Kit |
| HDMI Input | 1 × HDMI Female |
| HDMI Outputs | 2 × HDMI Male |
| Network Connections | 2 × RJ45 on transmitter + 2 × RJ45 receivers |
| HDMI Version | 2.0 |
| Maximum Resolution | 3840 × 2160 @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 36-bit |
| HDCP | 1.4 / 2.2 |
| Maximum Distance | 230 ft / 70.1 m |
| Recommended Cable | Cat6 |
| Audio | Uncompressed 7.1-channel |
| Power | 100–240V AC input; 24V DC / 1A output |
| Operating Temperature | 0–40°C |
| Mounting | Rack / Wall / Pole |
| Compliance | TAA, RoHS, REACH, CE, FCC |
