Detailed Specifications

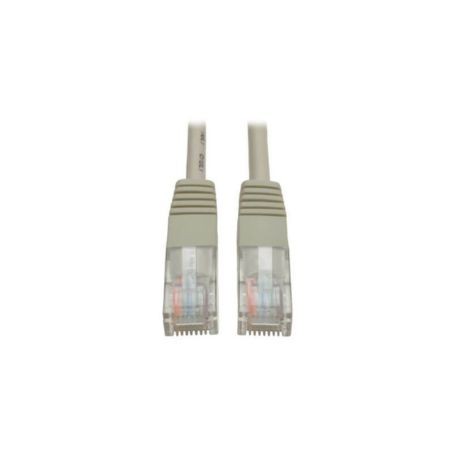

Eaton N002-100-GY Cat5e 350MHz Molded UTP Ethernet Cable
Overview
The Eaton N002-100-GY is a Tripp Lite by Eaton Cat5e molded UTP Ethernet patch cable designed for Gigabit Ethernet and other compatible networking applications. It features RJ45 male-to-male connectors, a 100 ft. (30.48 m) cable length, and a gray PVC jacket.
The cable uses 4-pair stranded copper conductors and is rated for 350 MHz / 1 Gbps communication. Its molded RJ45 plugs include integral strain relief for improved durability during installation and handling.
The N002-100-GY is intended for 1000Base-T Gigabit Ethernet, 10/100Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications. It uses an unshielded twisted-pair (UTP) construction and supports EIA/TIA 568B wiring.
Key Features
- Cat5e 350 MHz patch cable supporting up to 1 Gbps Ethernet
- 100 ft. (30.48 m) length for extended network connections
- RJ45 male-to-male molded connectors with integral strain relief
- 4-pair stranded copper UTP construction with PVC jacket
- Supports 1000Base-T, 10/100Base-T and other compatible network applications
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite by Eaton |
| Part Number | N002-100-GY |
| Product Type | Ethernet Patch Cable |
| Cable Category | Cat5e |
| Cable Characteristic | Patch Cable |
| Cable Length | 100 ft. / 30.48 m |
| Connector Type | RJ45 |
| Connector Configuration | RJ45 Male to RJ45 Male |
| Cable Shielding | UTP / Unshielded |
| Conductor Material | Stranded Copper |
| Number of Conductors | 4 Pair |
| Conductor Gauge | Not reliably verified for this exact model |
| Jacket Material | PVC |
| Cable Color | Gray |
| Maximum Bandwidth | 350 MHz |
| Network Speed | Up to 1 Gbps |
| Wiring Method | EIA/TIA 568B |
| Connector Style | Molded |
| Strain Relief | Integral molded boot |
| PoE Support | Type 2 PoE+ (IEEE 802.3at) |
| Supported Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 |
| Applications | 1000Base-T, 10/100Base-T, TPDDI, ATM, ISDN, Voice, Token Ring Type 3 |
| Compliance | RoHS |
| Country of Origin | China |
| Warranty | Lifetime Limited Warranty |
