Detailed Specifications

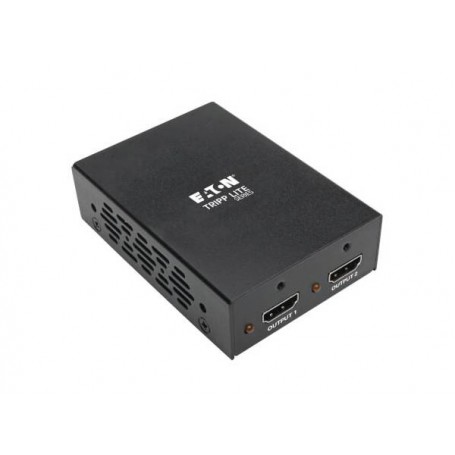

Eaton B118-002-UHD-2 2-Port 4K HDMI Splitter Compatible Tripp Lite
Overview :
The Eaton B118-002-UHD-2 is a 1-input, 2-output HDMI splitter designed to distribute one Ultra HD video/audio source to two HDMI displays simultaneously. It supports 4K x 2K resolution at 60 Hz, HDMI 2.0, HDCP 2.2, HDR, 3D, and 36-bit Deep Color.
The splitter is suitable for digital signage, classrooms, conference rooms, offices, trade shows, and other AV installations requiring identical content on two displays. It is plug-and-play with no drivers or software required and can be cascaded up to three levels to support up to 32 displays.
Key Features :
- 1 HDMI input and 2 HDMI outputs
- Supports 3840 × 2160 at 60 Hz
- HDMI 2.0 interface
- HDCP 2.2 compliant
- HDR and Full 3D support
- 36-bit Deep Color
- 18 Gbps total video bandwidth
- Supports DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1
- EDID compatible
- Cascadable up to 3 levels / 32 displays
- Plug-and-play operation
- Metal housing with mounting hardware
- TAA compliant
- 3-year limited warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | B118-002-UHD-2 |
| Product Type | 2-Port HDMI Splitter |
| Input × Output | 1 × 2 |
| Input Connector | HDMI Female |
| Output Connectors | 2 × HDMI Female |
| HDMI Version | HDMI 2.0 |
| Maximum Resolution | 3840 × 2160 @ 60 Hz |
| Video Bandwidth | 18 Gbps total |
| HDCP | 2.2 |
| HDR | Yes |
| 3D | Yes |
| Color Depth | 36-bit Deep Color |
| Audio | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 |
| EDID | Yes |
| Maximum Cable Distance | 15 ft / 4.6 m with standard 28 AWG HDMI cable |
| Housing | Metal |
| Power Input | 100–240V AC, 50/60 Hz, 0.35A |
| Power Output | 5V DC, 2A |
| Operating Temperature | 0–40°C |
| Compliance | TAA, RoHS, REACH, FCC, CE |
