Detailed Specifications

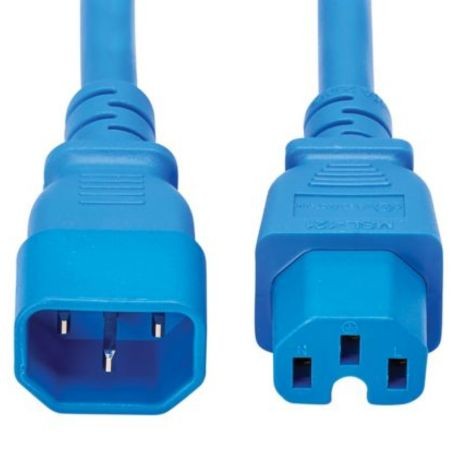

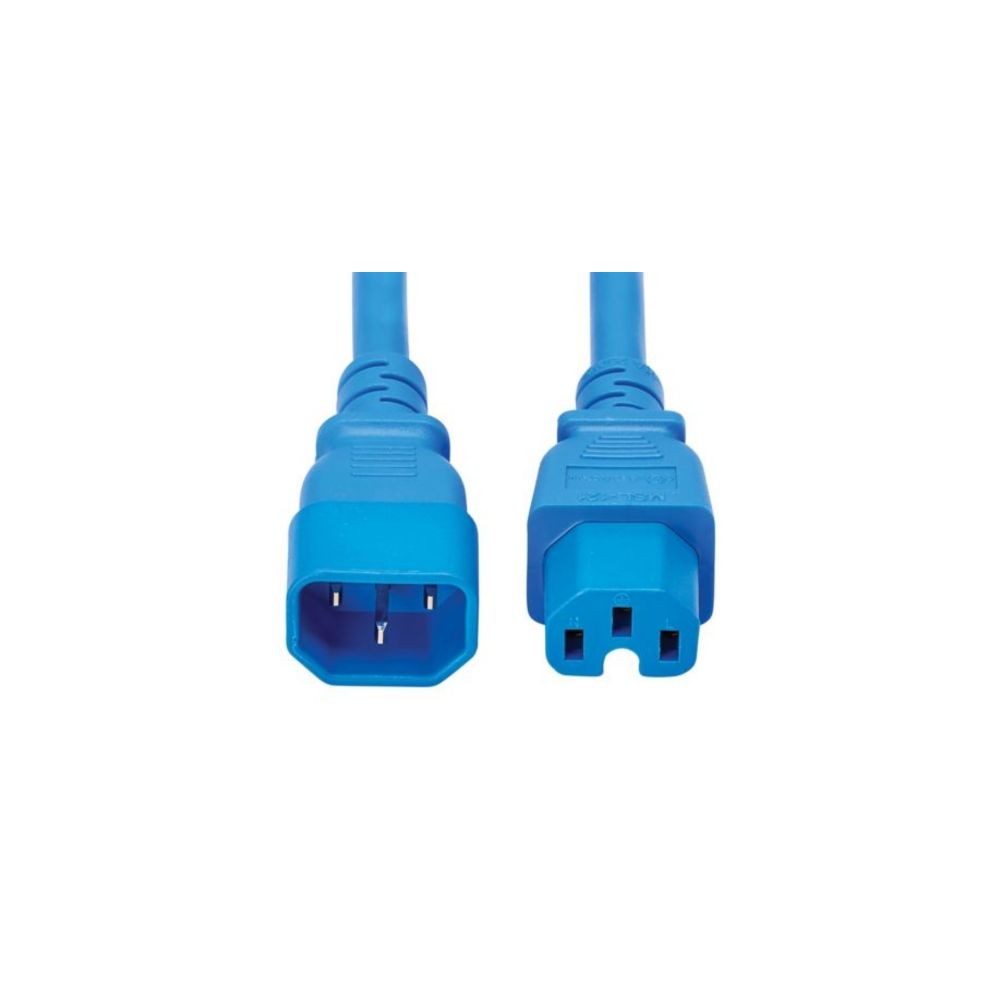

Eaton P018-010-ABL Tripp Lite 10ft Power Cord C14 C15 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P018-010-ABL is a 10-ft heavy-duty power cord with IEC 60320 C14 and C15 connectors. It is designed for servers, network switches, PDUs, UPS systems, and PoE switches requiring a higher-temperature C15 connection.
The cable uses 14 AWG, three-conductor SJT construction and is rated at 15A with 100-250VAC compatibility. The blue PVC jacket provides quick visual identification in dense rack environments.
The C15 connector is intended for equipment with a C16 inlet, including compatible high-wattage PoE network switches and servers. It should not be used with equipment requiring a different connector configuration or electrical rating.
Key Features
- 14 AWG construction supports high-power IT equipment
- C14-to-C15 configuration supports high-temperature devices
- 10-ft length provides flexible rack power routing
- Blue jacket enables quick cable identification
- 15A, 100-250VAC rating supports compatible equipment
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-010-ABL |
| Product Type | PDU Extension Power Cord |
| Cable Length | 10 ft (3.05 m) |
| Voltage Rating | 100-250 VAC |
| Current Rating | 15 A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C15 |
| Outer Cable Diameter | 9.3 mm |
| Jacket Material | PVC |
| Jacket Color | Blue |
| Device Compatibility | Network Switch, PDU, Server, UPS |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
