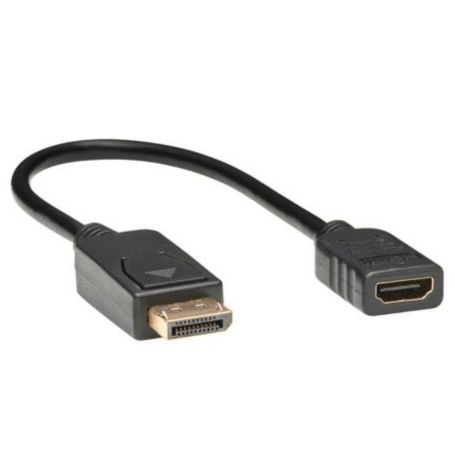

Eaton P136-001 Tripp Lite DisplayPort to HDMI Adapter Cable 1 ft M F 1080p

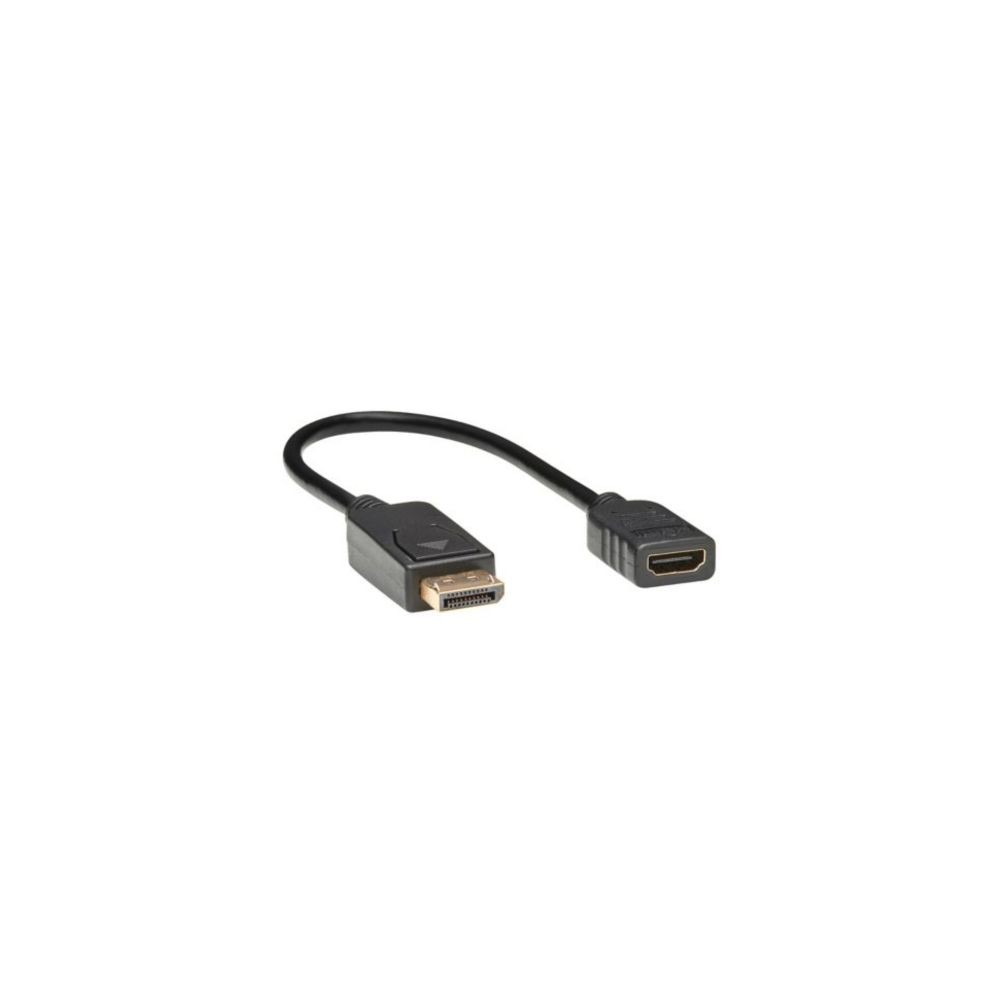

The Eaton P136-001 is a 1 ft passive DisplayPort-to-HDMI adapter cable for connecting a DisplayPort computer or laptop to an HDMI-equipped monitor, television, projector, or other compatible display. It has a DisplayPort male connector on one end and an HDMI female connector on the other, allowing a standard HDMI cable to complete the connection to the display.
1080p Digital Video and Audio
The P136-001 supports video resolutions up to 1920 x 1080 at 60 Hz and HDTV resolutions up to 1080p. It also supports 36-bit Deep Color and up to 7.1-channel surround sound when supported by the connected source and display equipment.
Passive DP++ Design
This is a passive adapter, so the DisplayPort source must support DisplayPort++ (DP++) dual-mode output for HDMI signal pass-through. No external power supply or driver installation is required.
Key Features
- DisplayPort male to HDMI female adapter cable
- 1 ft (12 in / 30.48 cm) cable length
- Supports up to 1920 x 1080 at 60 Hz and 1080p
- Supports 36-bit Deep Color and 7.1-channel surround sound
- HDCP 1.3, HDMI 1.3, and DisplayPort 1.1a support
DC Supplies Product Note
The HDMI female connector lets the P136-001 work with a standard HDMI cable already connected to a display, which can be useful when a computer has DisplayPort output but the installed display connection is HDMI. Check for DP++ support on the source before ordering because this passive adapter does not perform active signal conversion.
Applications
- DisplayPort laptops connected to HDMI monitors
- Desktop computers with DisplayPort outputs
- HDMI televisions and projectors
- Conference-room and classroom displays
- Digital signage installations
- Portable presentation systems
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | P136-001 |
|---|
| Product Type | DisplayPort to HDMI Video Adapter |
|---|
| Cable Length | 1 ft (12 in / 30.48 cm) |
|---|
| Cable Type | Passive Adapter Cable |
|---|
| Connector A | DisplayPort Male |
|---|
| Connector B | HDMI Female |
|---|
| Signal Direction | DisplayPort Source to HDMI Display |
|---|
| DisplayPort Specification | 1.1a |
|---|
| HDMI Specification | 1.3 |
|---|
| Maximum Resolution | 1920 x 1080 @ 60 Hz |
|---|
| HDTV Support | Up to 1080p |
|---|
| Color Depth | 36-bit Deep Color |
|---|
| Audio Support | 7.1-Channel Surround Sound |
|---|
| HDCP | HDCP 1.3 |
|---|
| DP++ Required | Yes |
|---|
| External Power Required | No |
|---|
| Driver Required | No |
|---|
| Cable Outer Diameter | 5.5 mm |
|---|
| Jacket Material | PVC, VW-1 |
|---|
| Housing Material | ABS and PVC |
|---|
| Connector Finish | Gold-Plated |
|---|
| Contact Finish | Gold-Plated |
|---|
| Color | Black |
|---|
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
|---|
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
|---|
| Operating Humidity | 10–85% RH, Non-Condensing |
|---|
| Storage Humidity | 5–90% RH, Non-Condensing |
|---|
| Compliance | CE, FCC, RoHS, REACH |
|---|
| Warranty | 3-Year Limited Warranty |
|---|
| UPC | 037332242587 |
|---|
Package Contents
- P136-001 DisplayPort-to-HDMI Adapter Cable
Frequently Asked Questions
What does the P136-001 connect?
It connects a DisplayPort output on a computer or laptop to an HDMI input on a monitor, television, projector, or other compatible display.
Does the P136-001 support 1080p?
Yes. It supports up to 1920 x 1080 at 60 Hz and HDTV resolutions up to 1080p.
Does the P136-001 require DP++?
Yes. Because the adapter is passive, the DisplayPort source must provide DP++ dual-mode output for HDMI signal pass-through.
Does it support audio?
Yes. The manufacturer specifies support for stereo audio and up to 7.1-channel surround sound when supported by the connected equipment.
Does it require external power or drivers?
No. The P136-001 is a passive adapter and does not require an external power supply or software drivers.
Is the HDMI connector male or female?
The HDMI connector is female. The DisplayPort connector is male, so a standard HDMI cable can be connected from the adapter to the HDMI display.
