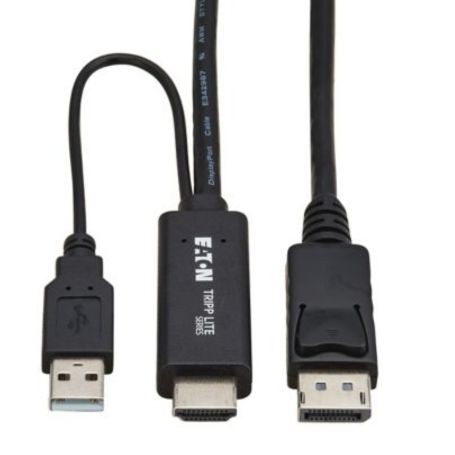

Eaton P567-02M-4K6 Tripp Lite HDMI to DisplayPort Active Adapter Cable 6 6 ft 4K 60Hz
The Eaton P567-02M-4K6 is an active HDMI-to-DisplayPort adapter cable designed to connect an HDMI-equipped source to a DisplayPort monitor, projector, or other compatible display. The cable combines HDMI 1.4 input, DisplayPort 1.2 output, and a built-in USB-A power connection in one assembly.
It supports resolutions up to 4096 x 2160 at 60 Hz, 36-bit Deep Color, and 4:4:4 chroma subsampling. The cable also supports 7.1-channel surround sound and HDCP 1.4 for compatible digital content.
4K at 60 Hz
The P567-02M-4K6 supports 4K video up to 4096 x 2160 at 60 Hz. Its 4:4:4 chroma subsampling is suited to compatible PC, presentation, gaming, and video applications where full-color-detail transmission is required.
Active HDMI to DisplayPort Conversion

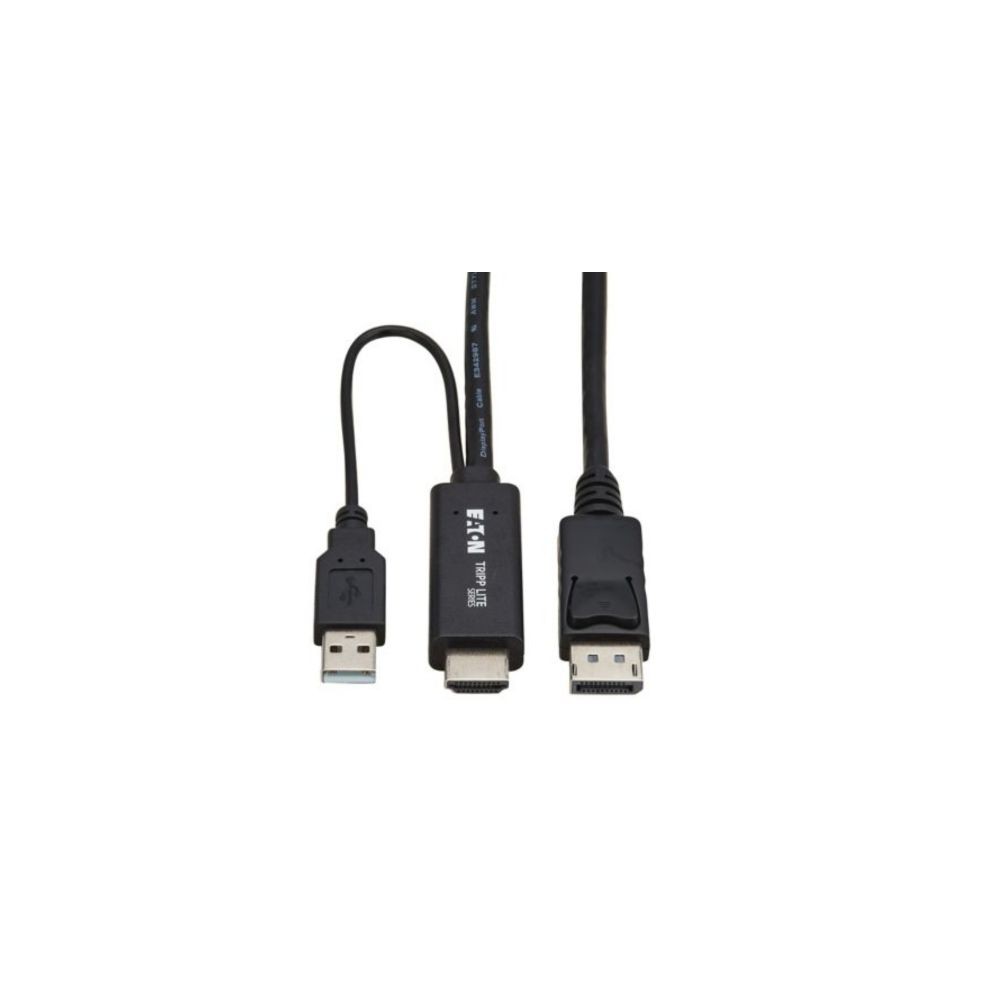

This is an active adapter cable rather than a passive HDMI-to-DisplayPort cable. The HDMI male connector connects to the source, while the DisplayPort male connector connects to the display. The built-in USB-A connector provides bus power to the adapter when required.
Audio and Digital Content Support
The cable supports 7.1-channel surround sound and HDCP 1.4. It is designed for digital audio/video connections between compatible HDMI source equipment and DisplayPort displays.
Key Features
- 6.6 ft (2.01 m) active HDMI-to-DisplayPort adapter cable
- Supports up to 4096 x 2160 at 60 Hz
- HDMI 1.4 input and DisplayPort 1.2 output
- Built-in USB-A connector for bus power
- Supports 36-bit Deep Color, 4:4:4 chroma, and 7.1-channel audio
DC Supplies Product Note
The built-in USB-A power lead is an important installation detail: although the cable is bus-powered, the USB connection provides the additional power path required by the active HDMI-to-DisplayPort conversion circuitry.
Applications
- Computer HDMI output to DisplayPort monitor
- HDMI-equipped media servers and PCs
- 4K conference room displays
- Projectors with DisplayPort input
- Digital signage installations
- Home theater and presentation systems
- Compatible gaming and multimedia setups
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P567-02M-4K6 |
| Product Type | HDMI to DisplayPort Active Adapter Cable |
| Cable Length | 6.6 ft (2.01 m) |
| Input Connector | HDMI 1.4 Male |
| Output Connector | DisplayPort 1.2 Male |
| Power Connector | USB-A Male, power only |
| Adapter Type | Active |
| Maximum Resolution | 4096 x 2160 @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 36-bit Deep Color |
| Audio | 7.1-channel surround sound |
| HDCP | HDCP 1.4 |
| HDR Support | No |
| 3D Video Support | No |
| DisplayPort Alt Mode | No |
| Signal Range | Up to 6.6 ft (2 m) |
| Bus Powered | Yes |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector Style | Straight |
| Latching / Gripping Connector | Yes |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 3.0 mm |
| Wire Gauge | 30 AWG |
| Color | Black |
| Material | PVC + ABS |
| Operating Temperature | 32° to 158°F (0° to 70°C) |
| Storage Temperature | 14° to 176°F (-10° to 80°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Warranty | 3-year limited warranty |
Frequently Asked Questions
What does the P567-02M-4K6 connect?
It connects an HDMI-equipped source to a DisplayPort-equipped display using an active HDMI-to-DisplayPort conversion cable.
What is the maximum resolution?
The cable supports up to 4096 x 2160 at 60 Hz.
Does the P567-02M-4K6 require USB power?
The cable is bus-powered and includes a USB-A power connector. The USB connection provides the additional power required by the active conversion circuitry.
Does it support audio?
Yes. The manufacturer specifies support for 7.1-channel surround sound.
Does it support 4:4:4 chroma?
Yes. The P567-02M-4K6 supports 4:4:4 chroma subsampling.
Is this a passive HDMI-to-DisplayPort cable?
No. It is an active adapter cable using conversion circuitry to connect the HDMI source to the DisplayPort display.
