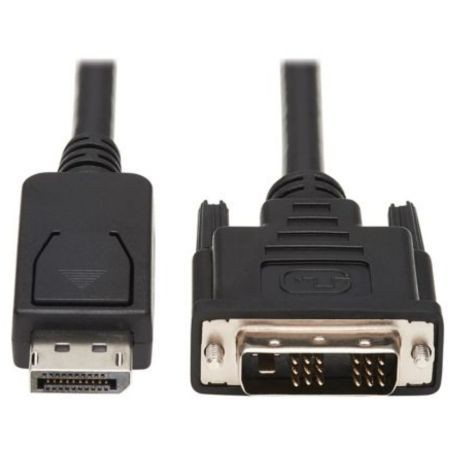

Eaton P581AB-006 Tripp Lite Safe IT DisplayPort to DVI D Antibacterial Cable 6 ft
The Eaton P581AB-006 is a 6 ft DisplayPort-to-DVI-D Single Link adapter cable designed to connect a DisplayPort source to a DVI-equipped monitor, television, projector, or other compatible display. It is a passive, unidirectional cable that carries the video signal from DisplayPort to DVI-D.
Safe-IT Antibacterial Construction
The P581AB-006 uses antibacterial material on the cable and connectors. Eaton positions the Safe-IT cable family for environments such as healthcare, retail, digital signage, and other installations where cable surfaces may be handled frequently.
DisplayPort to DVI-D Connectivity

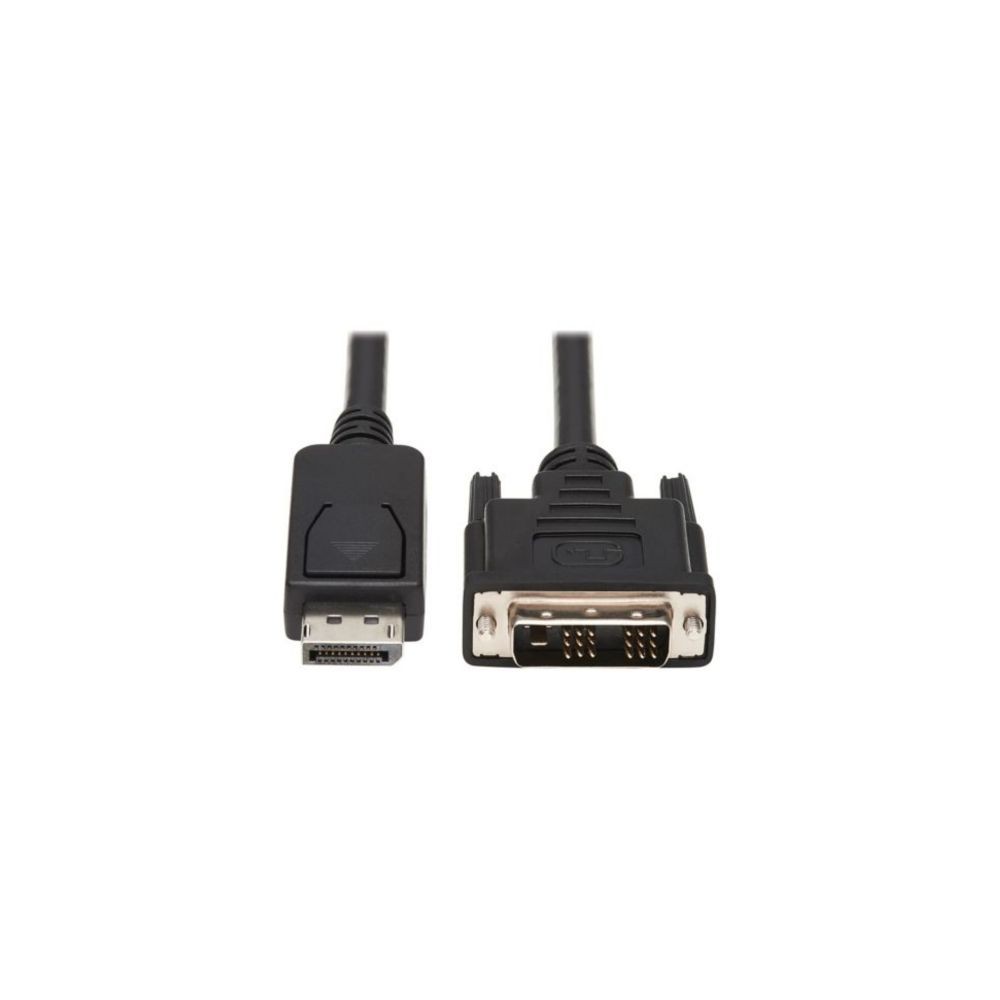

The cable uses a DisplayPort male connector with a latching mechanism and a DVI-D Single Link male connector with locking thumbscrews. It supports high-definition resolutions up to 1920 x 1200 at 60 Hz, including 1080p.
Key Features
- 6 ft DisplayPort male to DVI-D Single Link male cable
- Safe-IT antibacterial material on connectors and PVC jacket
- Supports up to 1920 x 1200 at 60 Hz, including 1080p
- Passive, unidirectional DisplayPort-to-DVI-D signal path
- Latching DisplayPort connector and locking DVI connector
DC Supplies Product Note
The P581AB-006 combines legacy DVI display connectivity with Safe-IT antibacterial construction, making the cable particularly relevant for shared-display installations where users frequently handle the cable or connected equipment. Because it is passive, the DisplayPort source must support DP++ for the DisplayPort-to-DVI signal conversion.
Applications
- Healthcare and clinical display installations
- Shared workstations and office environments
- Digital signage systems
- Classrooms and educational facilities
- DisplayPort computers connected to DVI monitors
- Projectors and other DVI-equipped displays
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | P581AB-006 |
|---|
| Product Type | Safe-IT DisplayPort to DVI-D Adapter Cable |
|---|
| Cable Length | 6 ft (1.83 m) |
|---|
| Cable Type | Passive |
|---|
| Signal Direction | DisplayPort to DVI-D |
|---|
| Connector A | DisplayPort Male, Latching |
|---|
| Connector B | DVI-D Single Link Male, Locking |
|---|
| DisplayPort Specification | DisplayPort 1.1 / DP++ |
|---|
| Maximum Resolution | 1920 x 1200 @ 60 Hz |
|---|
| HD Video | Up to 1080p |
|---|
| HDCP | HDCP 1.3 |
|---|
| Shielding | Foil and Braid |
|---|
| Connector Plating | Nickel |
|---|
| Contact Plating | Gold |
|---|
| Antibacterial Material | Yes |
|---|
| Jacket Material | PVC |
|---|
| Jacket Color | Black |
|---|
| Wire Gauge | 28 AWG |
|---|
| Cable Shape | Round |
|---|
| Warranty | 3-Year Limited Warranty |
|---|
Package Contents
- P581AB-006 Safe-IT DisplayPort-to-DVI-D Antibacterial Adapter Cable, 6 ft
Frequently Asked Questions
What does the P581AB-006 connect?
It connects a DisplayPort output to a DVI-D Single Link input. Both connectors are male.
Is the P581AB-006 bidirectional?
No. It is unidirectional and is designed to carry the signal from a DisplayPort source to a DVI-D display.
What resolution does it support?
The cable supports resolutions up to 1920 x 1200 at 60 Hz, including 1080p.
Does the P581AB-006 require DP++?
Yes. Because it is a passive adapter cable, the connected DisplayPort source must provide DP++ dual-mode output for the DisplayPort-to-DVI conversion.
What makes this a Safe-IT cable?
The cable uses antibacterial material on the connectors and PVC jacket. Eaton's Safe-IT family is intended for environments such as healthcare, retail, digital signage, and other shared-use installations.
Is this the same as P581-006-V2?
No. P581AB-006 is a passive DisplayPort-to-DVI-D Single Link cable that requires DP++, while P581-006-V2 is an active DisplayPort 1.2-to-DVI adapter cable.
