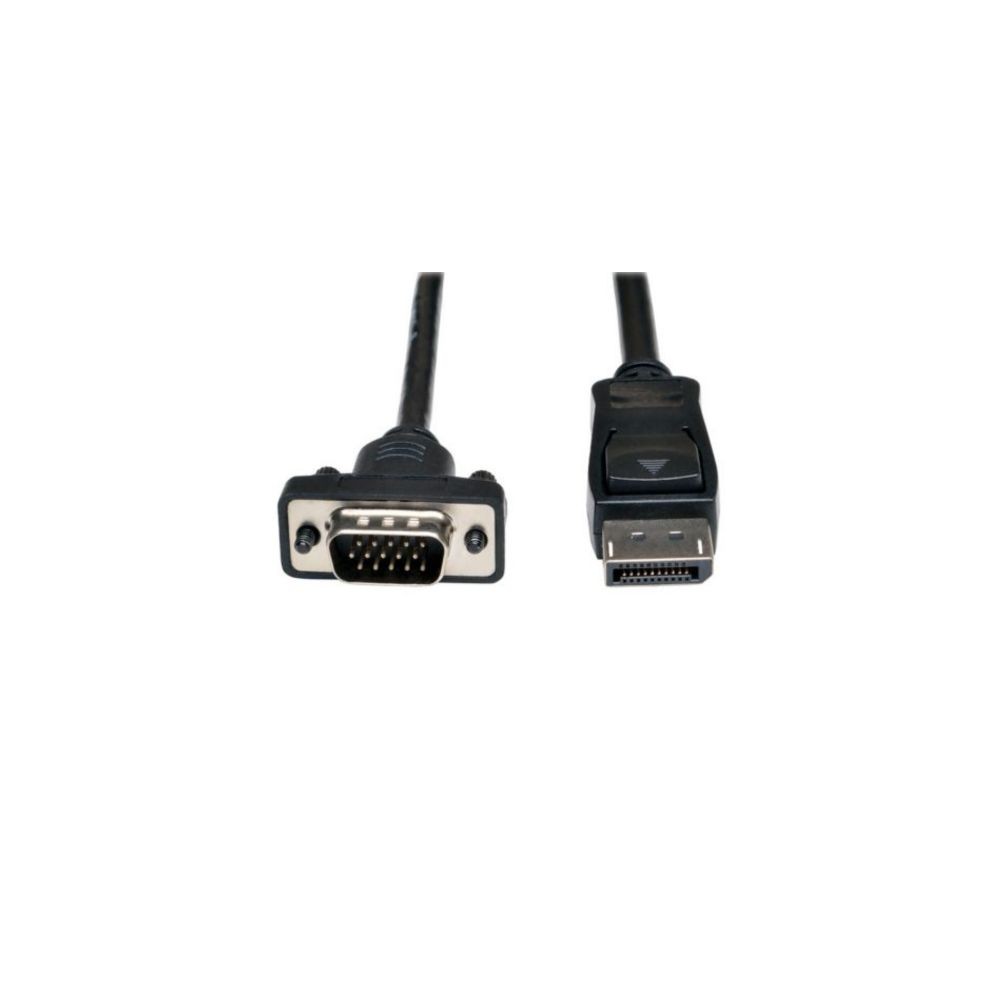

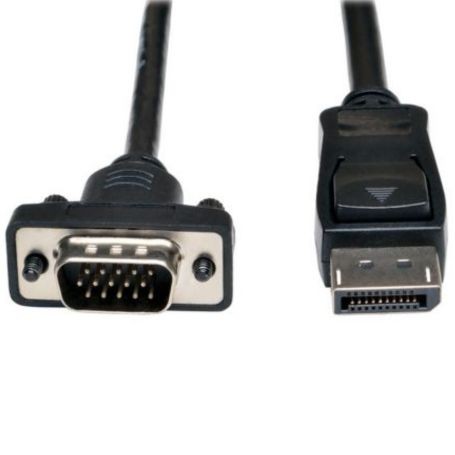

Eaton P581-006-VGA-V2 Tripp Lite DisplayPort 1 2 to VGA Active Adapter Cable 6 ft
The Eaton Tripp Lite P581-006-VGA-V2 is a 6 ft active DisplayPort 1.2 to VGA adapter cable designed to connect a DisplayPort computer to a VGA monitor, projector, or television. The integrated signal converter eliminates the need for a separate DisplayPort-to-VGA adapter.
The cable supports computer video resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, making it suitable for DisplayPort graphics sources that require active VGA conversion.
Key Features
- Active DisplayPort 1.2 to VGA adapter cable
- 6 ft (1.83 m) cable length
- Latching DisplayPort male connector
- Low-profile HD15 male VGA connector
- Supports up to 1920 x 1200 computer resolution and 1920 x 1080 (1080p) HD video
DisplayPort to VGA Connectivity
The P581-006-VGA-V2 provides a direct connection between a DisplayPort source and a VGA display. Its active conversion circuitry converts the DisplayPort video signal to VGA and supports both Single-Mode and Dual-Mode (DP++) DisplayPort output.
Low-Profile VGA Connector
The HD15 VGA connector uses a low-profile design intended to fit into restricted spaces behind monitors and other displays. This can help avoid interference with nearby connections or the wall behind a display. The DisplayPort end uses a latching connector for a more secure connection.
Cable Construction
The cable has a black PVC jacket with a VW-1 rating and double shielding using foil and braid. Eaton/Tripp Lite specifies nickel-plated connectors with gold-plated contacts and integral strain relief.
Applications
- DisplayPort computers to VGA monitors
- DisplayPort laptops and desktops to VGA projectors
- DisplayPort graphics cards to legacy VGA displays
- Conference rooms and classrooms using VGA displays
- Digital signage using compatible VGA equipment
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P581-006-VGA-V2 |
| Product Type | DisplayPort to VGA Active Adapter Cable |
| Cable Type | Active |
| Cable Length | 6 ft (1.83 m) |
| Connector A | DisplayPort Male |
| Connector B | HD15 Male |
| DisplayPort Specification | 1.2 |
| Technology | DisplayPort; VGA/SVGA |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Video Resolution | 1920 x 1080 (1080p) |
| DisplayPort Output Compatibility | Single-Mode and Dual-Mode (DP++) |
| DisplayPort Connector | Latching |
| VGA Connector | Low-profile HD15 Male |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Shielding | Double shielded, foil and braid |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Operating Humidity | 10–85% RH, non-condensing |
| Storage Humidity | 5–90% RH, non-condensing |
| Compliance | RoHS |
| UPC | 037332191939 |
Package Contents
1 x Eaton Tripp Lite P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 6 ft.
Frequently Asked Questions
What does the P581-006-VGA-V2 connect?
It connects a DisplayPort-equipped computer or graphics source to a VGA monitor, projector, or television.
Is the P581-006-VGA-V2 an active adapter?
Yes. It contains active signal-conversion circuitry and does not require a separate DisplayPort-to-VGA adapter.
What resolution does it support?
Eaton/Tripp Lite specifies computer resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p).
Does it require a DP++ DisplayPort output?
No. The manufacturer specifies that the active adapter converts both Single-Mode and Dual-Mode (DP++) DisplayPort output and is designed for use with any DisplayPort port.
What connectors does it use?
It has a latching DisplayPort male connector on one end and a low-profile HD15 male VGA connector on the other.
Is the VGA connector suitable for tight spaces?
Yes. The manufacturer specifically identifies the VGA connector as low-profile to help fit behind displays and avoid interference with neighboring connections.
