Detailed Specifications

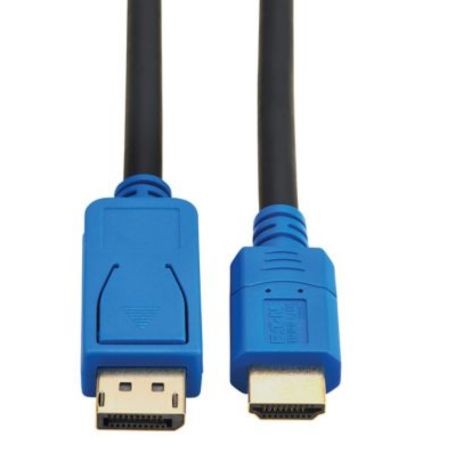

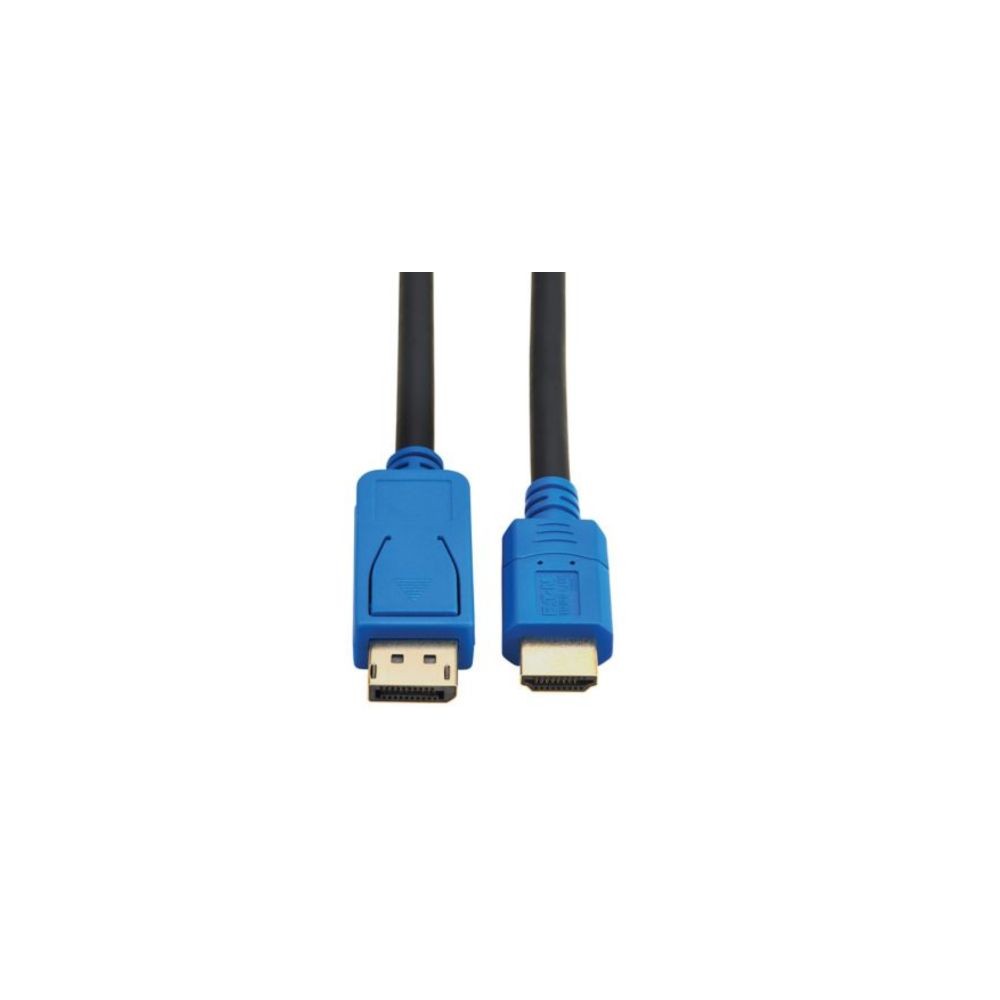

Eaton P582-006-8K6 DisplayPort 1 4a HDMI 2 1 Active Adapter Cable M M 8K 60 Hz 4K
Overview
The Eaton P582-006-8K6 is an active DisplayPort 1.4a-to-HDMI 2.1 adapter cable with male connectors on both ends. It connects a DisplayPort-equipped computer or graphics source to an HDMI display, projector, or television.
It supports video up to 7680 × 4320 at 60 Hz, with 48 Gbps bandwidth, HDR, DSC, and 4:2:0, 4:2:2, and 4:4:4 chroma subsampling. HDCP 1.4, 2.2, and 2.3 are supported.
The active design converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, so DP++ is not required. The 6-foot cable is suited to high-resolution workstation, digital-signage, conference-room, and professional display installations.
Both the DisplayPort and HDMI connectors incorporate retention features for improved connection security. It is not suitable for MST applications, as Eaton specifies MST support as not supported.
Key Features
- Supports 8K resolution at 60 Hz with 4:4:4 chroma
- Active conversion supports Single-Mode and DP++ sources
- 48 Gbps bandwidth supports high-resolution video signals
- HDR and DSC improve high-resolution video performance
- Latching and gripping connectors help prevent disconnection
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton |
| Part Number | P582-006-8K6 |
| Product Type | Active DisplayPort to HDMI Adapter Cable |
| Cable Type | Active |
| Cable Length | 6 ft (1.83 m) |
| Input Connector | DisplayPort Male |
| Output Connector | HDMI Male |
| DisplayPort Specification | 1.4a |
| HDMI Specification | 2.1 |
| Maximum Resolution | 7680 × 4320 at 60 Hz |
| Bandwidth | 48 Gbps |
| HDR Support | Yes |
| DSC Support | Yes |
| HDCP | 1.4 / 2.2 / 2.3 |
| Chroma Subsampling | 4:2:0 / 4:2:2 / 4:4:4 |
