Detailed Specifications
Eaton P137-06N-DVI Mini DisplayPort to DVI Adapter - Compatible Tripp Lite
Overview :

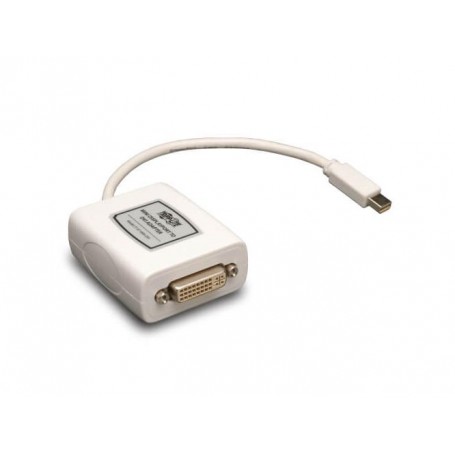

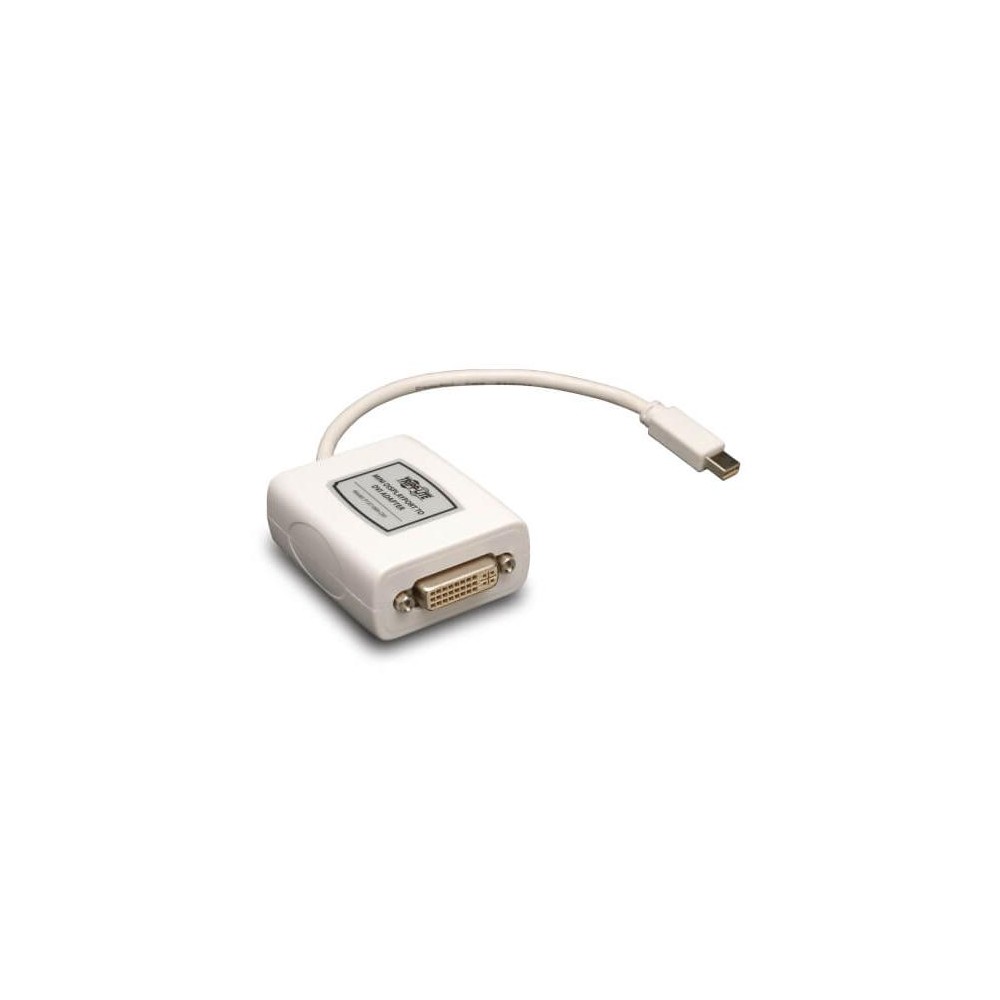

The Eaton P137-06N-DVI is a 6-inch passive Mini DisplayPort-to-DVI video adapter with a Mini DisplayPort male connector and DVI-I female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model.
The adapter is designed to connect a Mac or PC with a Mini DisplayPort output to a DVI-equipped monitor, projector or other display. It is also compatible with Thunderbolt 1 and Thunderbolt 2 ports on Mac computers.
The P137-06N-DVI supports DVI single-link resolutions up to 1920 × 1200 and HD video up to 1920 × 1080 (1080p). Because it is a passive adapter, the connected Mini DisplayPort source must provide a DP++ (DisplayPort Dual-Mode) output capable of passing DVI signals.
Key Features :
- 6 in. (15.24 cm) built-in adapter cable
- Mini DisplayPort male to DVI-I female
- Passive video adapter
- Supports DVI single-link resolutions up to 1920 × 1200
- Supports HD video up to 1920 × 1080
- Compatible with Thunderbolt 1 and 2 Mac ports
- Plug-and-play operation
- No external power supply required
- Fully molded construction
- White finish
- Requires a DP++ source
- Not intended for MST hub compatibility
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P137-06N-DVI |
| Product Type | Mini DisplayPort to DVI video adapter |
| Adapter Type | Passive |
| Connector A | Mini DisplayPort Male |
| Connector B | DVI-I Female |
| Cable Length | 6 in. (15.24 cm) |
| Maximum DVI Resolution | 1920 × 1200 |
| Maximum HD Resolution | 1920 × 1080 (1080p) |
| Thunderbolt Compatibility | Thunderbolt 1 and 2 |
| DP++ Requirement | Yes |
| External Power | Not required |
| MST Hub Support | No |
| Cable Construction | Fully molded |
| Color | White |
| Technology | DVI / DisplayPort |
| Compliance | RoHS |
| UPC | 037332158888 |
