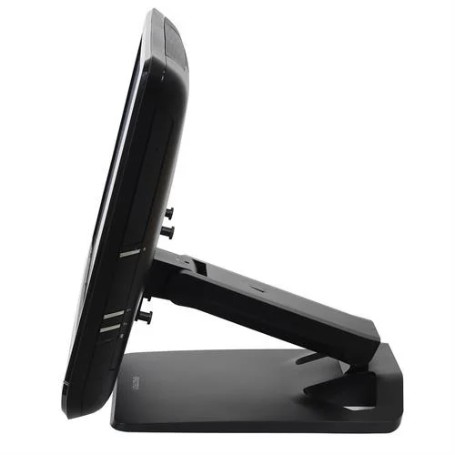

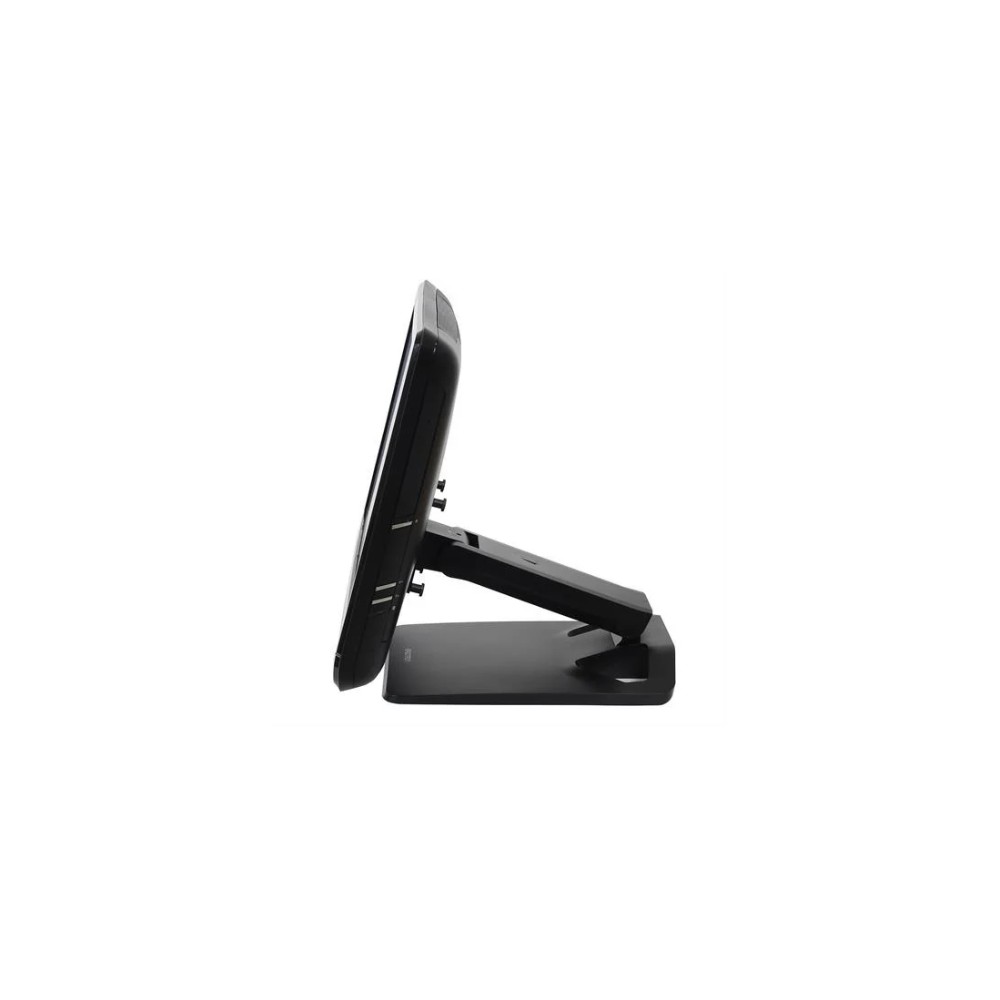

The Ergotron 33-387-085 Neo-Flex Touchscreen Stand is a heavy-duty desktop monitor stand designed for touchscreens, compatible displays and all-in-one computers. Its solid base and adjustable hinge support stable screen positioning during touch interaction, while the height-adjustment mechanism helps users establish a comfortable viewing position.
The stand features a black finish, integrated cable management and 360-degree screen rotation for sharing content with nearby users. Its broad tilt range allows the display to be positioned upright for viewing or angled toward the desktop for touch-based tasks.
Technical Information
The Neo-Flex stand supports displays weighing 14–23.7 lb (6.4–10.8 kg), with a typical maximum screen size of 27 inches. It provides up to 6.5 inches (16.5 cm) of height adjustment and 115 degrees of total tilt, specified as +25°/-90° in the manufacturer product information.
The stand supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm. A visual indicator helps users adjust the counterbalance tension. Larger VESA mounting patterns require a separately purchased compatible adapter.
Compatibility
This stand is intended for compatible monitors, touchscreens and all-in-one computers that meet its weight and mounting requirements. Supported VESA patterns are 75 × 75 mm and 100 × 100 mm.
For displays using 200 × 100 mm, 200 × 200 mm, 400 × 200 mm, 400 × 300 mm or 400 × 400 mm mounting patterns, the compatible Ergotron VESA Bracket Adapter Kit 97-759 may be ordered separately. Confirm the device dimensions and the adapter's compatibility before installation.
Key Features
- Supports compatible touchscreens and displays up to 27 inches.
- 14–23.7 lb (6.4–10.8 kg) display capacity.
- 6.5 inches (16.5 cm) of height adjustment and 115° total tilt.
- 360° screen rotation for sharing content between users.
- Solid desktop base, integrated cable management and counterbalance adjustment indicator.
Applications
Suitable for interactive workstations, point-of-service terminals, collaborative work areas, all-in-one computer setups and other desktop environments that require stable touchscreen positioning and flexible screen adjustment.
DC Supplies Product Note
Confirm the exact MPN and the display's weight and VESA pattern before ordering. Ergotron 33-387-085 is the black Neo-Flex Touchscreen Stand. The stand does not include the monitor or computer, and an adapter may be required for mounting patterns larger than 100 × 100 mm.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Manufacturer Part Number | 33-387-085 |
| Product Name | Neo-Flex Touchscreen Stand |
| Product Type | Desktop touchscreen and monitor stand |
| Color | Black |
| Typical Maximum Display Size | 27 inches |
| Display Weight Capacity | 14–23.7 lb (6.4–10.8 kg) |
| Height Adjustment | Up to 6.5 inches (16.5 cm) |
| Total Tilt Range | 115° (+25°/-90°) |
| Rotation | 360° |
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
| Construction | Solid base with hinged arm and pivot |
| Cable Management | Integrated cable-routing feature |
| Adjustment Aid | Visual counterbalance-tension indicator |
| Included Components | Base, hinged arm and pivot, adjustment tool |
| Product Weight | 3.5 kg (7.7 lb) |
| Shipping Dimensions | 16 × 13.5 × 9 inches |
| Shipping Weight | 4.3 kg (9.5 lb) |
| Warranty | 3 years |
FAQs
What displays can the Ergotron 33-387-085 support?
It supports compatible monitors, touchscreens and all-in-one computers up to a typical 27-inch screen size, weighing 14–23.7 lb (6.4–10.8 kg).
How much height adjustment does the stand provide?
The stand provides up to 6.5 inches (16.5 cm) of height adjustment.
Can the display be tilted for touchscreen use?
Yes. Its total tilt range is 115°, specified as +25°/-90°, allowing the display to be angled toward the desktop for touch interaction.
Which VESA patterns are supported?
The stand supports VESA 75 × 75 mm and 100 × 100 mm. A compatible adapter is required for supported larger mounting patterns.
What warranty does this model include?
Ergotron product information lists a three-year warranty.
