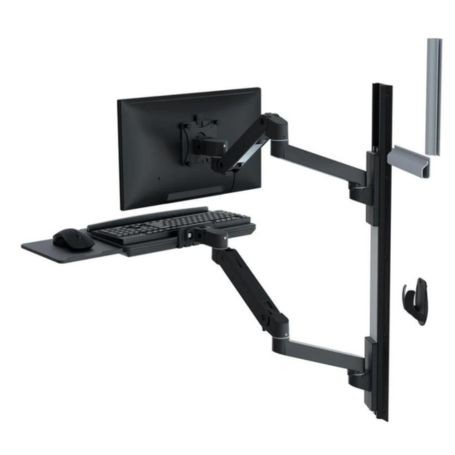

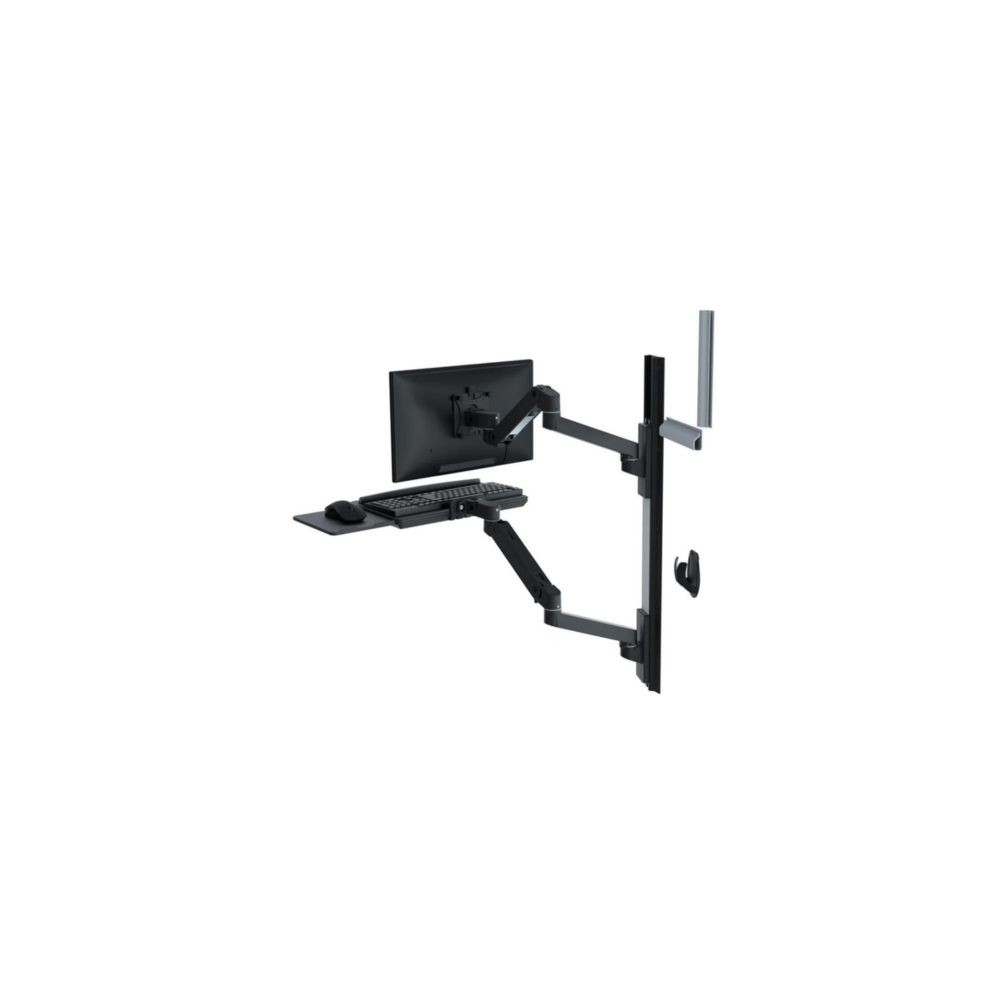

Ergotron LX Pro Wall Mount System
The Ergotron 45-696-292 is an LX Pro Wall Mount System in Matte Black, designed as a complete wall-mounted workstation for a monitor and keyboard. The system combines two arms and two extensions with a monitor pivot, wall-mount base, wall track, keyboard tray pivot and mouse support.
Monitor and Workstation Support
The system supports typical displays up to 34 inches and monitors weighing from 1.8 to 10 kg. The monitor mount uses VESA MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
Adjustment and Movement
The LX Pro Wall Mount System provides up to 33 cm of lift and up to 64 cm of display extension. The monitor supports 85° of tilt, 180° of monitor pan and 360° of rotation. A rotation stop can limit base-arm movement to help prevent contact with walls, partitions or cubicles.
Key Features
- Complete wall-mounted workstation system for monitor and keyboard
- Supports displays up to 34 inches and up to 10 kg
- Includes two arms and two extensions for workstation positioning
- VESA MIS-D compatibility with 75 x 75 mm and 100 x 100 mm patterns
- Includes keyboard tray pivot, mouse holder and wrist pad
Applications
The system is intended for wall-mounted computer workstations where the display and keyboard need to be positioned away from the desk or floor area. The wall track provides a mounting structure for the workstation components.
DC Supplies Product Note
The exact 45-696-292 is the Matte Black version of the LX Pro Wall Mount System. The package includes the wall track and mounting hardware, while PC mounting accessories are separate options and should not be assumed to be included.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-696-292 |
| Product Type | Wall Mount Workstation System |
| Series | LX Pro |
| Color | Matte Black |
| Typical Display Size | Up to 34 inches |
| Monitor Weight Capacity | 1.8–10 kg (4–22 lb) |
| Lift | 33 cm (13 inches) |
| Tilt | 85° (+70° / -15°) |
| Monitor Pan | 180° |
| Base Arm Pan | 180° with rotation stop engaged |
| Monitor Rotation | 360° |
| Extension | Up to 64 cm (25 inches) |
| VESA Mounting | MIS-D, 75 x 75 mm and 100 x 100 mm |
| Wall Track | 34 inches |
| Warranty | 10 years |
| UPC | 698833092158 |
Frequently Asked Questions
What is the Ergotron 45-696-292?
It is an LX Pro Wall Mount System designed as a wall-mounted workstation for a monitor and keyboard.
What monitor size is supported?
The system supports typical displays up to 34 inches, subject to the specified monitor weight capacity.
What is the monitor weight capacity?
The specified monitor weight capacity is 1.8 to 10 kg.
Which VESA patterns are supported?
The monitor mount supports VESA MIS-D 75 x 75 mm and 100 x 100 mm mounting patterns.
What is included with the system?
Ergotron specifies two arms, two extensions, monitor pivot, wall-mount base, wall track, keyboard tray pivot, mouse holder, wrist pad and attachment hardware.
Is a PC holder included?
No. Ergotron lists PC mounting accessories separately, so a PC holder should not be assumed to be included with the 45-696-292.
