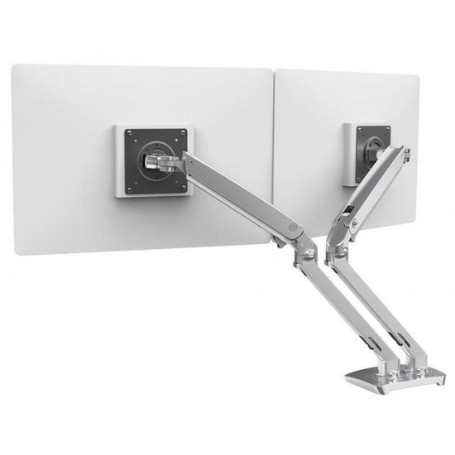

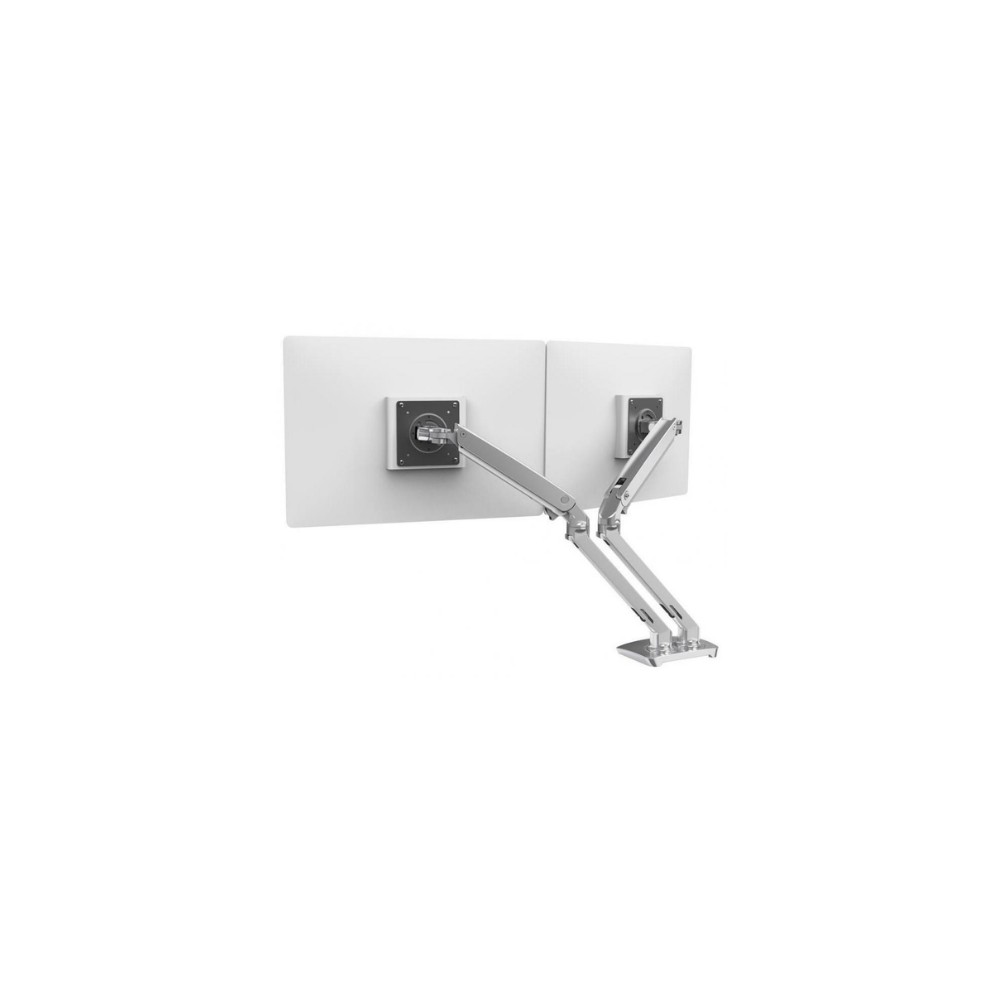

Ergotron 45-496-026 – MXV Desk Dual Monitor Arm, Polished Aluminum
Overview
The Ergotron 45-496-026 MXV Desk Dual Monitor Arm is a polished-aluminum desk-mounted monitor arm designed for two side-by-side displays. Its compact MXV design provides height adjustment, monitor positioning, cable management, and a 180° rotation stop at the desk-mounted base for controlled movement within the workspace.
Technical Information
The 45-496-026 supports displays up to 24 inches and provides a 7–20 lb (3.2–9.1 kg) capacity per screen. The arm provides 13 inches (33 cm) of height adjustment, 180° tilt, 360° pan, and 360° display rotation. The mounting interface supports VESA MIS-D 75 × 75 mm and 100 × 100 mm patterns.
Compatibility
The MXV Desk Dual Monitor Arm mounts directly to a desk using its included two-piece desk clamp. The clamp accommodates worksurfaces from 0.47 to 1.25 inches (12–32 mm) thick. The arm is designed for two side-by-side displays using VESA 75 × 75 mm or 100 × 100 mm mounting patterns.
Key Features
- Supports two displays up to 24 inches
- Supports 7–20 lb (3.2–9.1 kg) per display
- Provides 13 inches (33 cm) of height adjustment
- Supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns
- Polished aluminum finish with integrated cable management and 180° base rotation stop
Applications
The MXV Desk Dual Monitor Arm is suited to engineering workstations, office environments, control desks, call centers, and other applications requiring two independently adjustable monitors while maintaining a compact desk footprint.
DC Supplies Product Note
The 45-496-026 is the polished-aluminum variant of the MXV Desk Dual Monitor Arm. Ergotron also offers the same MXV dual-arm configuration in other finishes under different part numbers; those variants should not be substituted when the specified MPN is 45-496-026.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 45-496-026 |
|---|
| Product | MXV Desk Dual Monitor Arm |
|---|
| Finish | Polished Aluminum |
|---|
| Number of Displays | 2 |
|---|
| Typical Display Size | Up to 24 in |
|---|
| Load Capacity | 7–20 lb (3.2–9.1 kg) per display |
|---|
| Height Adjustment | 13 in (33 cm) |
|---|
| Tilt | 180° |
|---|
| Pan | 360° |
|---|
| Rotation | 360° |
|---|
| VESA Mounting | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Maximum Extension Reach | 22.2 in (56 cm) |
|---|
| Desk Thickness | 0.47–1.25 in (12–32 mm) |
|---|
| Mounting | Desk Clamp |
|---|
| Product Weight | 10.1 lb (4.9 kg) |
|---|
| Shipping Weight | 15.1 lb (6.9 kg) |
|---|
| Shipping Dimensions | 37.2 × 15.7 × 7.6 in |
|---|
| Warranty | 10 years |
|---|
Specifications are based on exact-model Ergotron documentation and supporting distributor data.
FAQs
What is the Ergotron 45-496-026?
The 45-496-026 is the Ergotron MXV Desk Dual Monitor Arm in polished aluminum, designed to support two side-by-side monitors.
How many monitors does the 45-496-026 support?
It supports two displays.
What monitor weight can it support?
The published capacity is 7–20 lb (3.2–9.1 kg) per display.
What monitor size is supported?
Ergotron specifies displays up to 24 inches for this model.
Which VESA patterns are supported?
The arm supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
How much height adjustment is available?
The MXV dual monitor arm provides 13 inches (33 cm) of height adjustment.
What desk thickness does the clamp support?
The included desk clamp is designed for worksurfaces from 0.47 to 1.25 inches (12–32 mm) thick.
