The Ergotron 97-827 StyleView Height-Adjustable Keyboard Arm is an accessory designed to add vertical adjustment to the keyboard tray on compatible Ergotron StyleView medical carts. It allows users to reposition the keyboard working height while retaining tray tilt and 180-degree pan movement.
Designed for compatible StyleView carts equipped with an LCD pivot or arm, the 97-827 replaces the existing keyboard tray support arrangement while reusing the cart's existing keyboard and mouse tray. This allows the workstation's keyboard position to be adjusted without requiring a separate replacement tray.
Height Adjustment and Ergonomic Positioning
The arm provides vertical adjustment controlled by a lever. Loosening the lever allows the keyboard assembly to move to a different height, and tightening it secures the selected position.
The available vertical travel depends on the cart configuration. Carts without drawers provide 6 inches (15.2 cm) of adjustment, while carts with drawers provide 4 inches (10.2 cm). The keyboard tray also retains back-tilt capability, with the tilt angle changing according to the arm's vertical position.
Compatibility
The Ergotron 97-827 is designed for compatible Ergotron StyleView cart configurations in the SV40, SV41 and SV42 series that have an LCD pivot or arm.
The accessory reuses the cart's existing keyboard and mouse tray. Before ordering, verify the exact cart model and its current display-mount configuration to ensure compatibility.
Key Features
- Vertical height adjustment: Provides adjustable keyboard positioning to accommodate different working heights.
- 180-degree pan movement: Allows the keyboard arm to pan through a 180-degree range.
- Adjustable back tilt: Retains keyboard tray tilt, with the angle varying across the arm's vertical travel.
- Existing tray reuse: Uses the compatible cart's existing keyboard and mouse tray rather than requiring a separate replacement tray.
- Lever-controlled positioning: Allows the arm's height to be adjusted and secured using its adjustment lever.
Applications
- Reconfiguring compatible StyleView carts for adjustable keyboard working heights.
- Adapting mobile medical workstations to accommodate different users.
- Adjusting keyboard placement on compatible clinical carts used for documentation and computer-based workflows.
- Upgrading an existing supported StyleView cart without replacing its keyboard and mouse tray.
DC Supplies Product Note
Check whether the compatible StyleView cart has drawers before planning the keyboard adjustment range. The available vertical travel differs between configurations: 6 inches on carts without drawers and 4 inches on carts with drawers. Also, the 3 lb (1.36 kg) load rating applies to the keyboard arm assembly; confirm the weight of the supported keyboard and any items placed on the tray remains within the manufacturer's limit.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-827 |
|---|
| Product Type | Height-adjustable keyboard arm |
|---|
| Product Name | SV Height-Adjustable Keyboard Arm |
|---|
| Product Series | StyleView |
|---|
| Compatible Cart Series | Ergotron StyleView SV40, SV41 and SV42 |
|---|
| Compatibility Requirement | Compatible carts with LCD pivot or arm |
|---|
| Maximum Load Capacity | 3 lb (1.36 kg) |
|---|
| Vertical Adjustment Without Drawers | 6 inches (15.2 cm) |
|---|
| Vertical Adjustment With Drawers | 4 inches (10.2 cm) |
|---|
| Back-Tilt Angle at Lowest Position | -6° |
|---|
| Back-Tilt Angle at Highest Position | -20° |
|---|
| Pan Range | 180° |
|---|
| Height Adjustment Control | Lever-controlled |
|---|
| Existing Tray Reuse | Uses the compatible cart's existing keyboard and mouse tray |
|---|

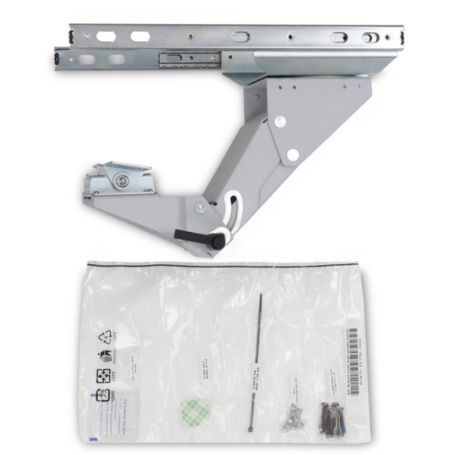

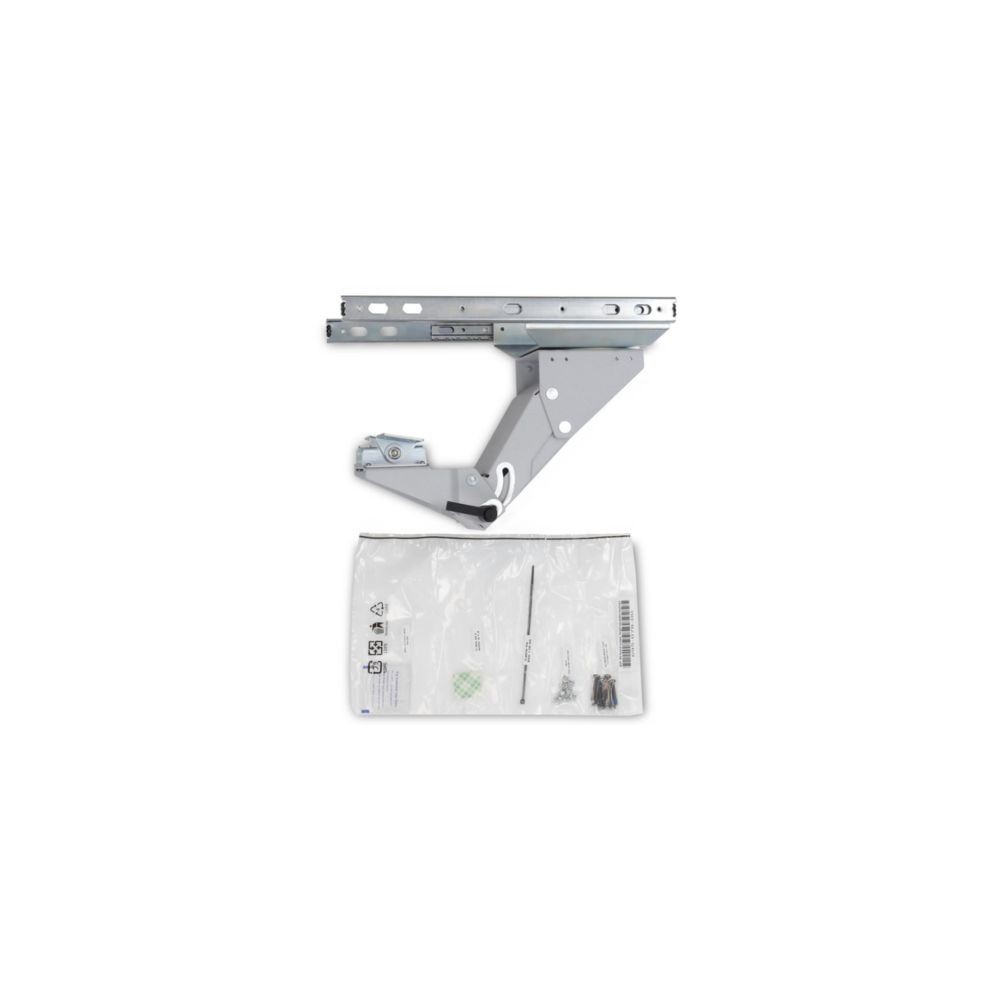

| Package Contents | SV height-adjustable keyboard arm and mounting hardware |
|---|
| Environmental Compliance | RoHS and REACH |
|---|
| Certification | BIFMA level 2 |
|---|
| Manufacturer Warranty | 5 years |
|---|
| UPC | 698833041972 |
|---|
Frequently Asked Questions
1. Which Ergotron carts support the 97-827 keyboard arm?
The 97-827 is designed for compatible StyleView SV40, SV41 and SV42 carts equipped with an LCD pivot or arm. Confirm the exact cart model before purchasing.
2. How much vertical adjustment does the arm provide?
The arm provides 6 inches (15.2 cm) of vertical travel on compatible carts without drawers and 4 inches (10.2 cm) on compatible carts with drawers.
3. Does the keyboard tray come with the arm?
The arm is designed to reuse the compatible cart's existing keyboard and mouse tray. The listed package contents include the adjustable arm and mounting hardware.
4. Can the keyboard position be tilted and rotated?
Yes. The assembly retains back-tilt capability and provides 180-degree pan movement. The back-tilt angle varies depending on the arm's vertical position.
5. How is the keyboard height adjusted?
A lever controls the height adjustment. Loosen the lever to reposition the arm and tighten it to secure the selected height, following the manufacturer's installation instructions.
6. What is the maximum supported load?
The specified maximum load capacity is 3 lb (1.36 kg). Keep the supported load within this limit and follow the manufacturer's installation and operating instructions.
Manufacturer Reference
