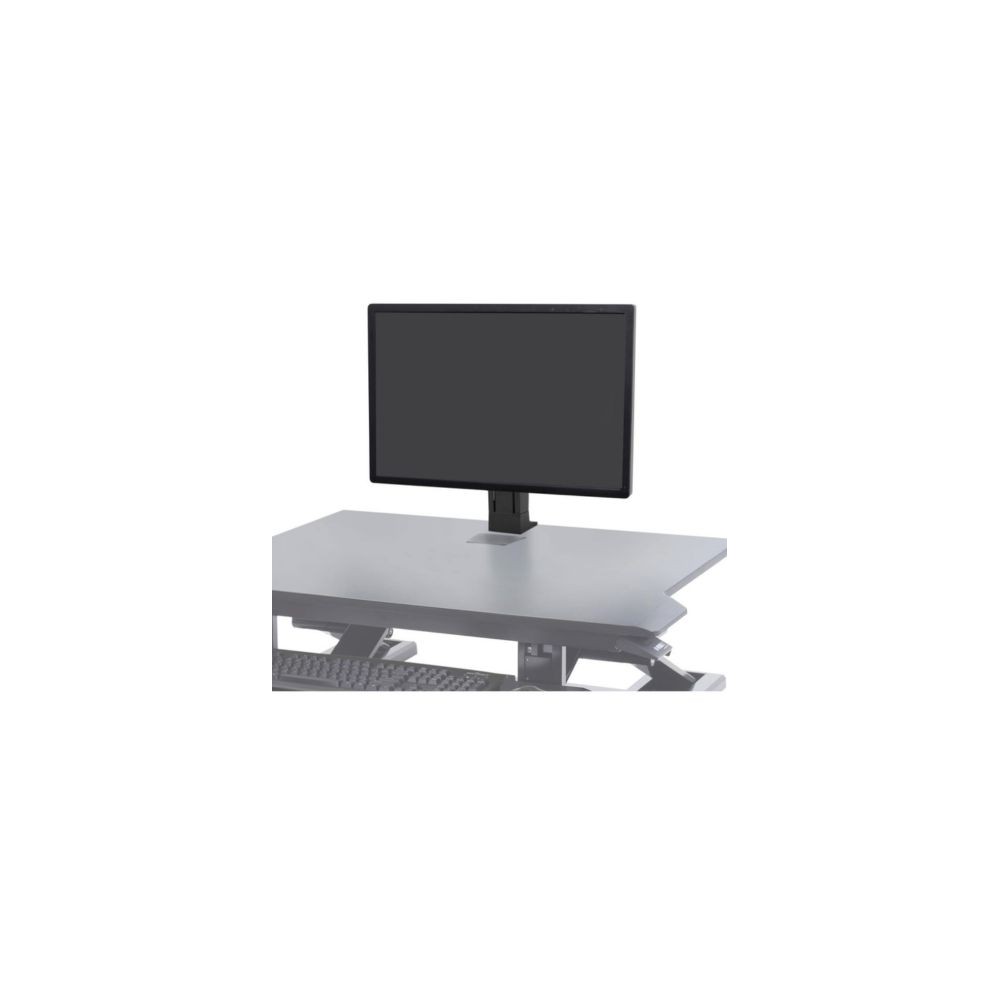

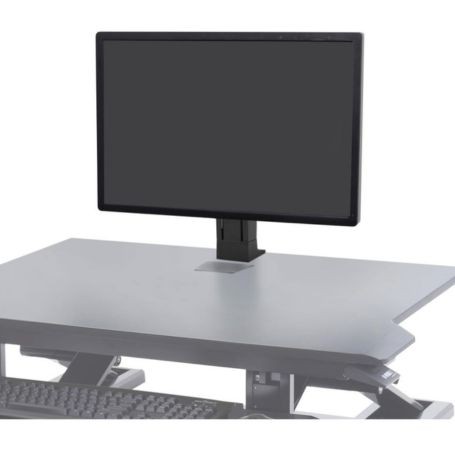

The Ergotron 97-935-085 WorkFit Single LD Monitor Kit adds adjustable monitor mounting to compatible Ergotron WorkFit sit-stand workstations. Designed for lightweight displays, this kit helps position a monitor above the desktop, freeing up workspace and making it easier to adjust the screen for comfortable viewing.
Key Features
- Single-monitor mounting: Supports one compatible LCD monitor above the workstation surface.
- 5-inch height adjustment: Provides 127 mm of vertical movement to help position the screen at a suitable viewing height.
- Flexible screen positioning: Offers up to 30 degrees of tilt and 360-degree rotation.
- Light-duty monitor support: Accommodates compatible displays weighing 6–16 lb (2.7–7.3 kg).
- Integrated cable management: Includes cable-management components and ties to help keep the workstation organized.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-935-085 |
|---|
| Product Type | Single LCD Monitor Kit |
|---|
| Product Series | WorkFit |
|---|
| Color | Black |
|---|
| Number of Displays | 1 |
|---|
| Recommended Display Size | Up to 24 inches, subject to display dimensions and mounting compatibility |
|---|
| Display Weight Capacity | 6–16 lb (2.7–7.3 kg) |
|---|
| Height Adjustment | 5 inches (127 mm) |
|---|
| Tilt | 30 degrees |
|---|
| Rotation | 360 degrees |
|---|
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm |
|---|
| Compatible Workstations | Ergotron WorkFit-T, WorkFit-TL, WorkFit-TLE, WorkFit-TX, and WorkFit Corner; verify compatibility with the specific workstation revision |
|---|
| Included Components | 5-inch lift engine, one monitor pivot, dual bow, mounting hardware, and cable-management components |
|---|
| Warranty | Refer to Ergotron's applicable warranty terms for this model |
|---|
Adjustable Monitor Positioning
The WorkFit Single LD Monitor Kit uses Ergotron's Constant Force technology to make monitor repositioning easier. Its height-adjustment mechanism and pivot allow users to fine-tune screen placement throughout the workday. Mounting the monitor above the worksurface also helps preserve room for documents and other desktop essentials.
Compatibility and Installation
This accessory is designed for compatible Ergotron WorkFit desktop workstations. Before ordering, confirm your workstation model, monitor weight, screen dimensions, and VESA mounting pattern. The display must fall within the specified 6–16 lb weight range for proper operation.
Adding the kit reduces the workstation's available overall load capacity. Check the documentation for your exact WorkFit model before combining this accessory with other equipment.
DC Supplies Product Note
Verify monitor weight and VESA compatibility before purchase. This is the black single-monitor kit, MPN 97-935-085. The compatible WorkFit workstation and monitor are not included unless explicitly stated in the order.
Frequently Asked Questions
1. What is the Ergotron 97-935-085 used for?
It adds an adjustable single-monitor mounting system to compatible Ergotron WorkFit sit-stand workstations.
2. What monitor weight does it support?
The specified display weight range is 6–16 lb (2.7–7.3 kg).
3. What is the maximum recommended screen size?
The kit is specified for screens up to 24 inches, subject to the monitor's physical dimensions, weight, and mounting compatibility.
4. Which VESA mounting patterns are supported?
The monitor pivot supports standard 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
5. How much adjustment does the kit provide?
It provides 5 inches (127 mm) of height adjustment, 30 degrees of tilt, and 360-degree rotation.
6. Is the WorkFit workstation included?
No. This product is the monitor mounting accessory. The compatible workstation and monitor are sold separately unless explicitly stated otherwise.
