Detailed Specifications

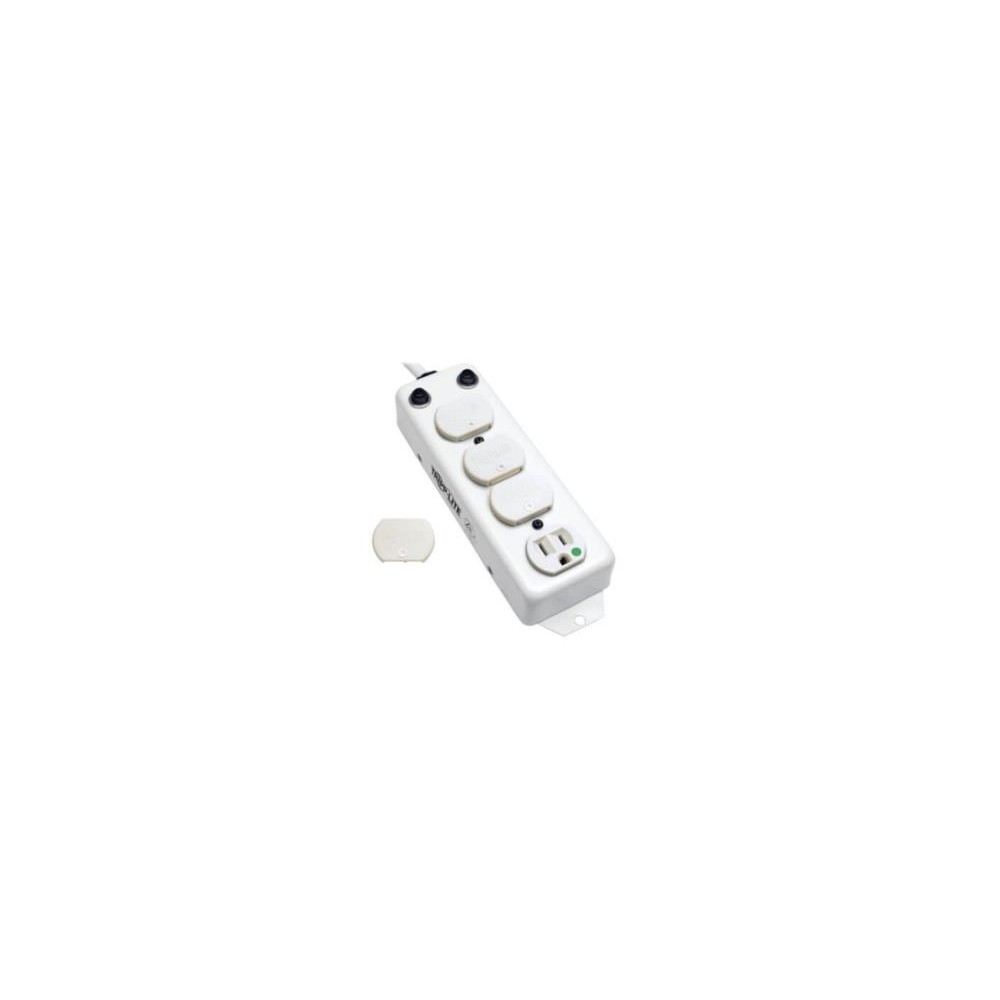

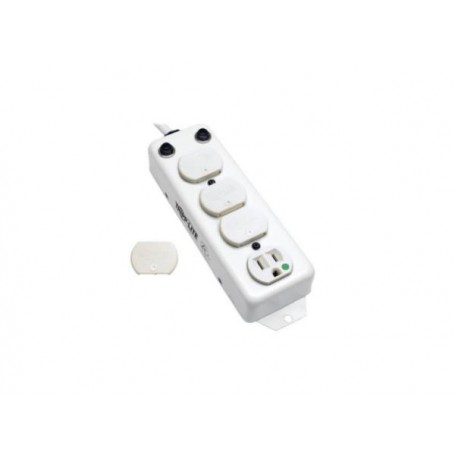

Eaton PS-415-HG-OEM 4-Outlet Medical-Grade Power Strip Compatible Tripp Lite
Overview
The Eaton PS-415-HG-OEM is a Tripp Lite Safe-IT medical-grade power strip designed for use with movable medical equipment assemblies, including mobile carts, IV poles, crash carts, and mobile medical workstations. It features four hospital-grade NEMA 5-15R-HG outlets, a 15-ft hospital-grade power cord, antimicrobial protection, and two resettable 15A circuit breakers. The unit is UL 1363A certified for properly mounted patient-care-vicinity applications and complies with NFPA 99.
Key Features
- 4 hospital-grade NEMA 5-15R-HG outlets
- 15-ft (4.57 m) power cord
- Hospital-grade NEMA 5-15P-HG plug
- Two built-in 15A resettable circuit breakers
- UL 1363A medical-grade design
- Approved for properly mounted patient-care-vicinity applications
- Antimicrobial protection
- Rugged all-metal housing
- Switchless design helps prevent accidental shutdown
- Single-row outlet configuration
- Transformer-friendly outlet spacing
- Mounting flanges and holes/slots
- Designed for mobile carts, IV poles, crash carts, and medical workstations
- RoHS compliant
- Lifetime limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | PS-415-HG-OEM |
| Product Type | Medical-Grade Power Strip |
| Series | Safe-IT |
| Total Outlets | 4 |
| Outlet Type | NEMA 5-15R-HG |
| Input Plug | NEMA 5-15P-HG |
| Input Voltage | 120V AC |
| Maximum Current | 15A |
| Recommended Electrical Service | 15A, 120V |
| Frequency | 50/60 Hz |
| Cord Length | 15 ft (4.57 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Housing Material | Metal |
| Housing Color | White |
| Outlet Color | White |
| Circuit Breakers | 2 × 15A |
| Surge Protection | No |
| Antimicrobial Protection | Yes |
| Power Switch | No |
| Outlet Arrangement | Single row of 4 |
