Detailed Specifications

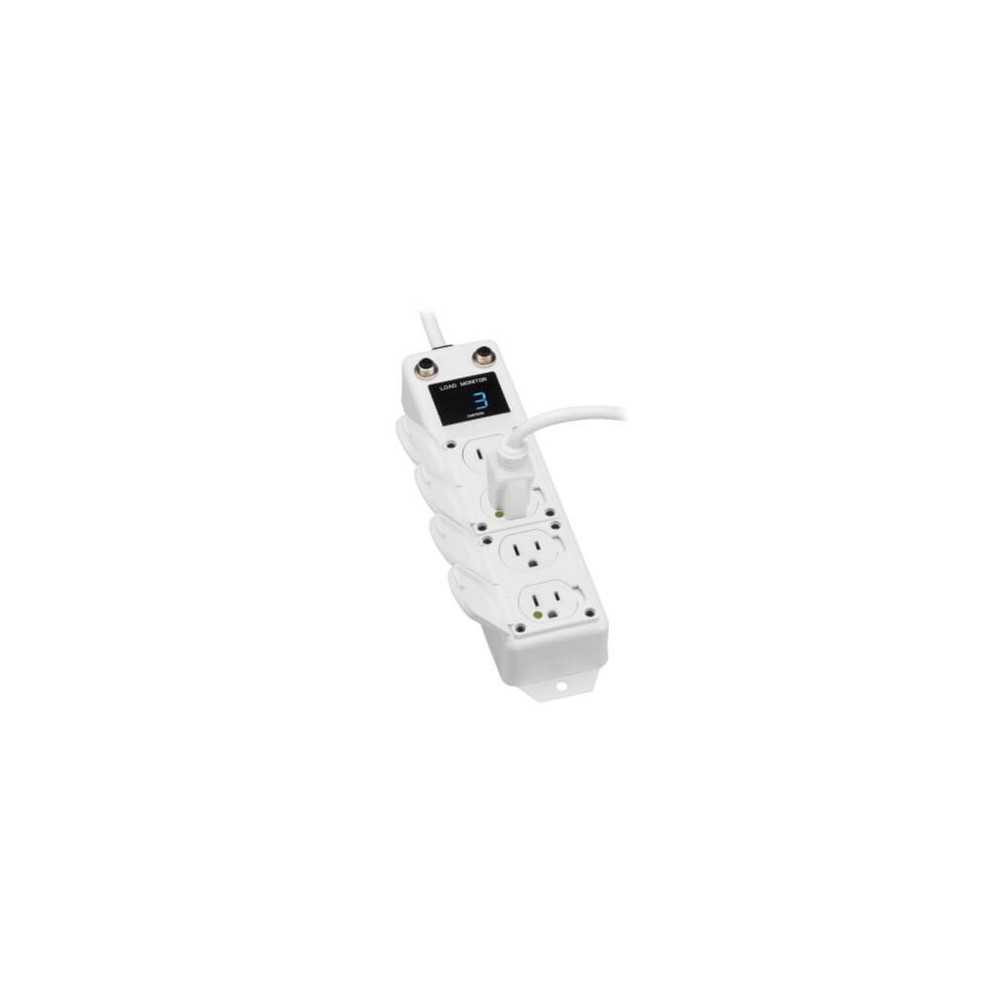

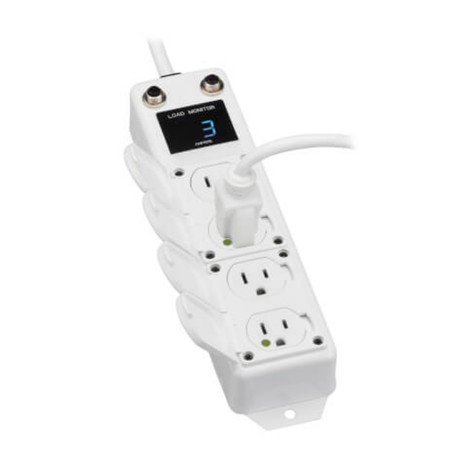

Eaton PS-402-HG-OEM - Medical-Grade Power Strip
Overview
The Eaton PS-402-HG-OEM is a medical-grade power strip designed for patient-care environments requiring compliant AC power distribution for movable medical equipment assemblies.
It is commonly deployed in operating rooms, therapy rooms, imaging environments, crash carts, IV poles, and mobile medical workstations where hospital-grade outlet protection and compact cable management are required.
The unit provides four NEMA 5-15R-HG hospital-grade outlets with a NEMA 5-15P-HG input plug on a short 2-foot power cord to minimize excess cable routing around mobile medical equipment.
Dual resettable 15A circuit breakers provide overload protection, while the switchless design prevents accidental shutdown during active patient-care operation. The antimicrobial-coated all-metal housing supports healthcare sanitation requirements and long-term durability.
This model is intended for UL 1363A-compliant medical power distribution and is not designed for UPS backup, surge suppression, or high-density rack power applications.
Key Features
- UL 1363A compliant for patient-care environments
- Four hospital-grade outlets support medical equipment
- Antimicrobial coating helps reduce surface microbes
- Dual resettable breakers protect against overloads
- Compact 2-foot cord reduces excess cable management
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | PS-402-HG-OEM |
| Product Type | Medical-Grade Power Strip |
| Input Voltage | 120 VAC |
| Maximum Input Current | 15 A |
| Frequency | 50/60 Hz |
| Input Plug | NEMA 5-15P-HG |
| Output Receptacles | 4 × NEMA 5-15R-HG |
| Cord Length | 2 ft (0.61 m) |
| Circuit Protection | Dual resettable 15A breakers |
| Power Switch | None (switchless design) |
| Housing Material | Metal |
| Mounting Support | Tabs and flanges included |
| Form Factor | Rack/table/pedestal mount |
| Antimicrobial Protection | Yes |
| Compliance | UL 1363A, NFPA 99 |
| Environmental Compliance | RoHS |
