Detailed Specifications

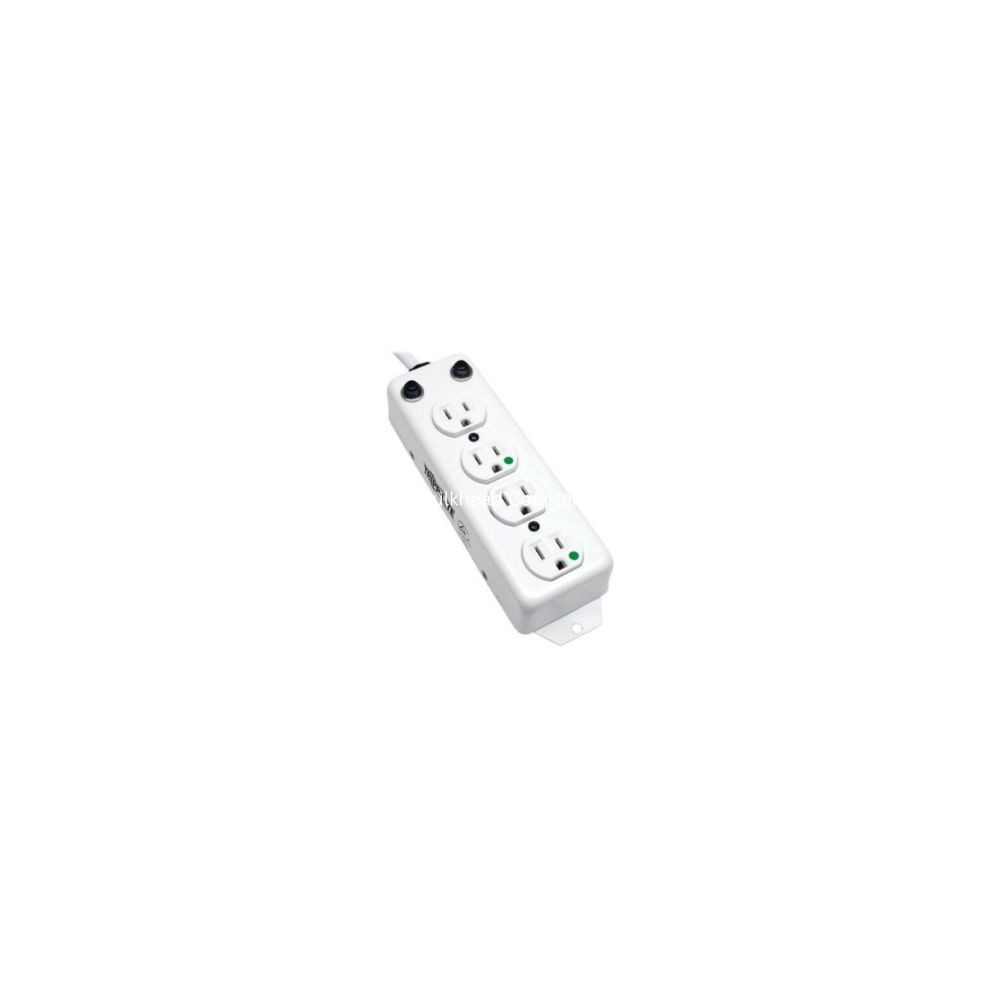

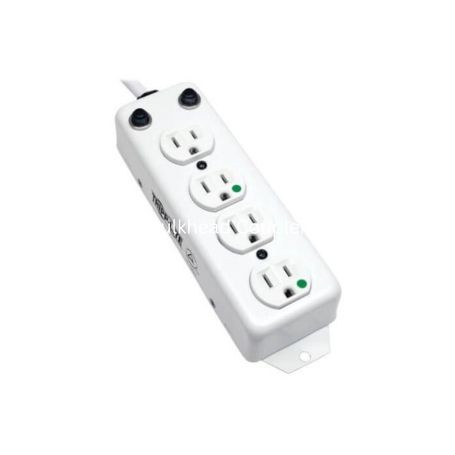

Eaton PS-415-HG-OEMRA Tripp Lite Safe-IT 4-Outlet Medical-Grade Power Strip
Overview:
The Eaton PS-415-HG-OEMRA / Tripp Lite Safe-IT is a medical-grade power strip designed for patient-care environments and mobile medical equipment. It provides four NEMA 5-15R-HG hospital-grade outlets and supports a recommended electrical service of 15A at 120V.
The unit is intended for IV poles, mobile carts, crash carts and mobile medical workstations. Its 15-ft power cord uses a space-saving right-angle NEMA 5-15P-HG hospital-grade plug, making it suitable for installations where the AC receptacle is difficult to access.
The Tripp Lite by Eaton PS-415-HG-OEMRA uses an all-metal housing with integrated mounting flanges and keyhole mounting slots. It has two 15A breakers, one on the line and one on the neutral, and uses a switchless design to reduce the possibility of accidental shutdown of connected medical equipment.
Key Features :
- Four NEMA 5-15R-HG hospital-grade outlets provide 120V power for compatible medical equipment.
- UL 1363A and NFPA 99 compliance supports approved medical power distribution applications.
- 15-ft 14 AWG SJT cord with a right-angle NEMA 5-15P-HG hospital-grade plug.
- Antimicrobial protection helps resist the growth of bacteria, viruses, fungi, mold and mildew.
- Two 15A circuit breakers and switchless construction provide overload protection without an accidental power switch-off.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | PS-415-HG-OEMRA |
| Series | Safe-IT |
| Product Type | Medical-Grade Power Strip |
| Application | Hospital / Medical |
| AC Outlets | 4 |
| Outlet Type | NEMA 5-15R-HG |
| Input Plug | NEMA 5-15P-HG |
| Input Voltage | 120 VAC |
| Recommended Electrical Service | 15A / 120V |
| Maximum Power | 1800W |
| Frequency | 50/60 Hz |
| Power Cord Length | 15 ft / 4.57m |
| Cord Gauge | 14 AWG SJT |
| Plug Type | Right-Angle Hospital-Grade |
| Circuit Breakers | 2 × 15A |
| Overload Protection | Line and Neutral |
| Power Switch | None |
| Housing Material | Metal |
| Housing Color | White |
| Outlet Color | White |
| Antimicrobial | Yes |
| Outlet Orientation | Single row of 4 |
| Outlet Spacing | 1.27 in center-to-center |
| Mounting | Flanges / Keyhole Slots |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | 14°F to 122°F / -10°C to 50°C |
| Dimensions | 8.54 × 2.50 × 1.73 in |
| Product Weight | 2.77 lb |
| Certifications | UL Listed, UL 1363A |
| Compliance | NFPA 99, RoHS |
| Warranty | Limited Lifetime |
| UPC | 037332239389 |
