Detailed Specifications

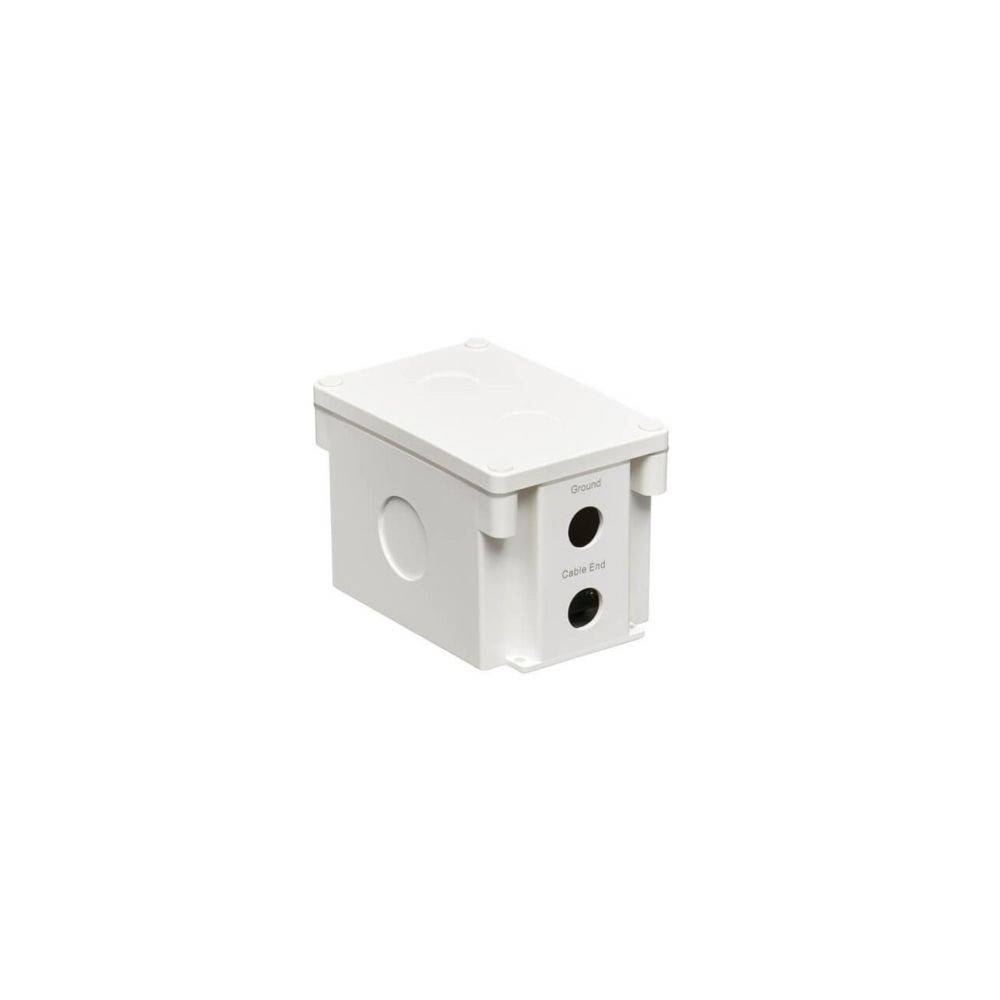

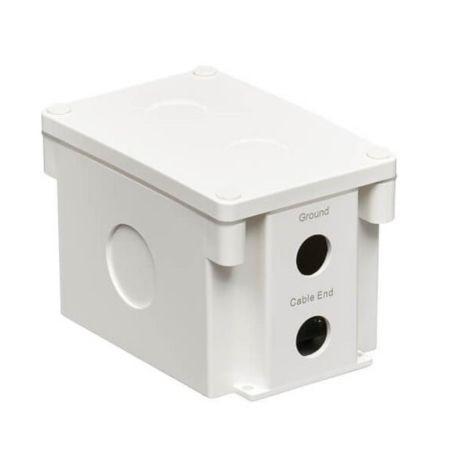

Eaton B110-SP-CAT-OD2 Outdoor Cat6 In-Line Surge Protector
Overview :
The Eaton Tripp Lite Series B110-SP-CAT-OD2 is an IP66-rated outdoor in-line surge protector engineered to shield Category 5e and Category 6 copper network lines against electrostatic discharge (ESD), lightning-induced surges, and cable discharge events. Designed for outdoor surveillance cameras, wireless access points, PoE access terminals, and building-to-building Ethernet runs, it preserves network hardware integrity in harsh environments.
Featuring an IP66 weatherproof enclosure with high-performance gas discharge tubes (GDT) and silicone weather-sealing grommets, the B110-SP-CAT-OD2 supports high-speed Gigabit Data pass-through (10/100/1000 Mbps) as well as Power over Ethernet (PoE, PoE+, and 802.3bt 4PPoE up to 90W) without restricting voltage or power flow to end devices.
Deployable on exterior walls, pole mounts, or outdoor equipment enclosures. Includes a dedicated heavy-gauge external grounding wire to safely channel high-voltage transients directly to earth ground. Do NOT deploy without properly bonding the ground wire to an established earth ground rod or grounding busbar.
Key Features :
IP66-rated weatherproof housing protects internal components from rain, dust, and temperature extremes.
Protects outdoor Cat5e/Cat6 lines against ESD and lightning-induced voltage surges.
Full Power over Ethernet (PoE / PoE+ / 802.3bt 4PPoE) pass-through support up to 90W.
High-speed 1 Gbps (1000Base-T) throughput preserves network bandwidth without signal degradation.
Heavy-duty grounding wire and terminal ensure fast surge diversion to earth ground.
Specifications :
| Brand | Eaton |
| Part Number | B110-SP-CAT-OD2 |
| Product Type | Outdoor Ethernet Surge Protector |
| Performance Category | Category 6 / Category 5e |
| Data Transfer Rate | 10 / 100 / 1000 Mbps (1 Gbps) |
| PoE Compatibility | IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (4PPoE / 90W) |
| Connectors | 2 x RJ45 Female (In / Out) |
| Surge Protection Technology | Gas Discharge Tube (GDT) |
| Protection Modes | Line-to-Line, Line-to-Ground |
| Ingress Protection Rating | IP66 Weatherproof |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Grounding Wire Gauge | 12 AWG |
| Housing Material | UV-Resistant Polycarbonate |
| Standards Compliance | IEC 61000-4-5, RoHS, REACH |
