Detailed Specifications

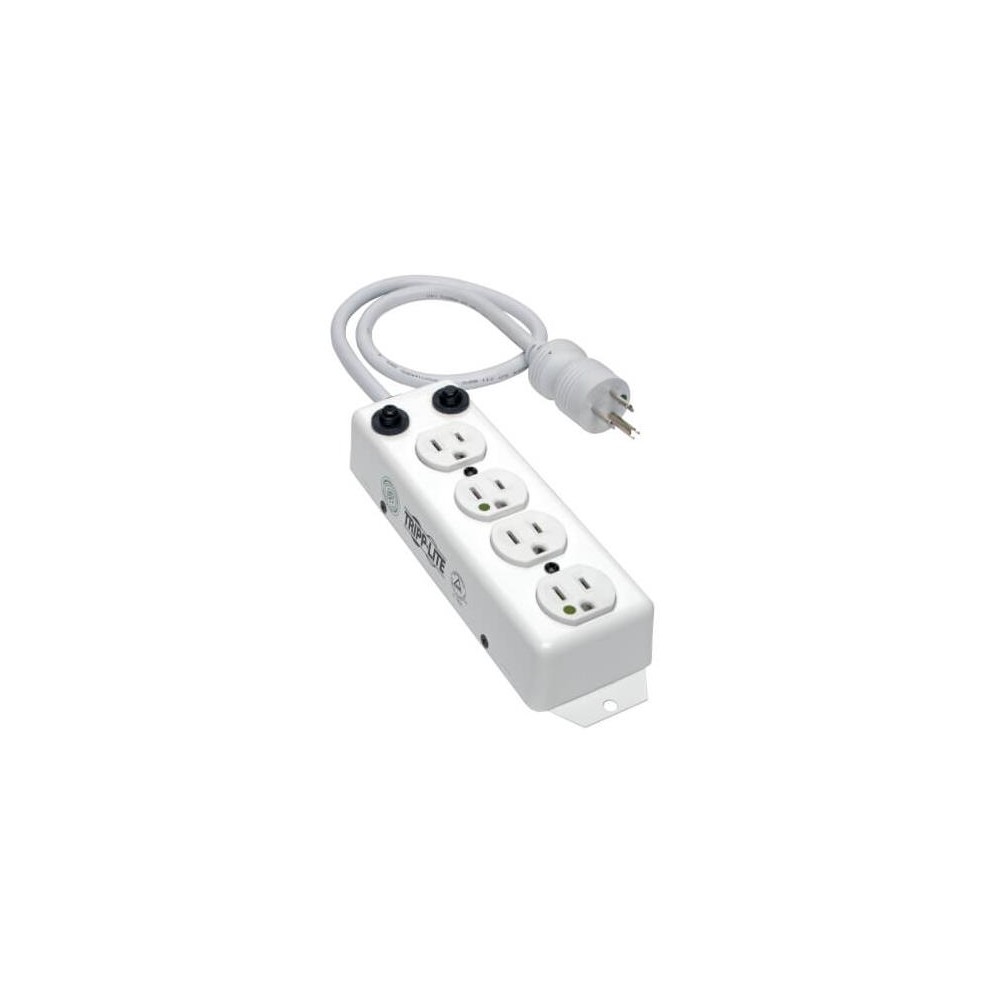

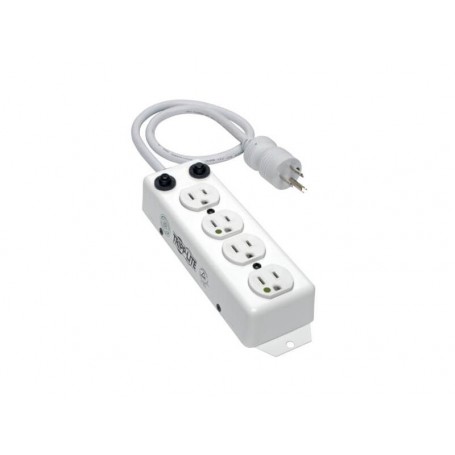

Eaton PS-407-HG-OEM 1363A Medical-Grade Power Strip Compatible Tripp Lite
Overview
The PS-407-HG-OEM supplies 120V power to movable plug-connected equipment used in healthcare environments such as patient-care areas, operating rooms, therapy rooms, imaging environments, mobile carts and medical workstations. The unit is designed to comply with UL 1363A requirements and includes mounting flanges for installation on suitable equipment or surfaces.
Its antimicrobial protection uses a treatment intended to help inhibit the growth of bacteria, viruses, fungi, mold and mildew on the product surface. The switchless design helps prevent accidental shutoff.
Key Features
- Safe-IT UL 1363A medical-grade power strip
- 4 hospital-grade NEMA 5-15R-HG outlets
- Locking safety covers on outlets
- 7 ft (2.13 m) power cord
- Hospital-grade NEMA 5-15P-HG input plug
- 120V / 15A electrical service
- Two built-in resettable 15A circuit breakers
- Overload protection for line and neutral
- Antimicrobial protection
- Switchless design
- Metal housing
- Mounting flanges for installation
- Suitable for IV poles, mobile carts, crash carts and mobile medical workstations
- 50/60 Hz frequency compatibility
- RoHS compliant
- Lifetime limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Brand / Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | PS-407-HG-OEM |
| Product Type | Medical-Grade Power Strip |
| Series | Safe-IT |
| Application | Hospital / Medical |
| Input Voltage | 120 VAC |
| Current Rating | 15A |
| Frequency | 50/60 Hz |
| Input Plug | NEMA 5-15P-HG Hospital Grade |
| Output Receptacles | 4 × NEMA 5-15R-HG |
| Outlet Configuration | Single row of 4 |
| Cord Length | 7 ft (2.13 m) |
| Cord Gauge | 14 AWG |
| Cord Jacket | SJT |
| Circuit Breakers | 2 × 15A resettable |
| Overload Protection | Yes |
| Power Switch | No |
| Housing Material | Metal |
| Housing Color | White |
| Receptacle Color | White |
| Antimicrobial Protection | Yes |
| Mounting | Mounting holes / flanges |
| Outlet Spacing | 1.27 in center-to-center for inner outlets |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 14° to 122°F (-10° to 50°C) |
| Compliance | RoHS, NFPA 99 |
| Certification | UL Listed, UL 1363A |
