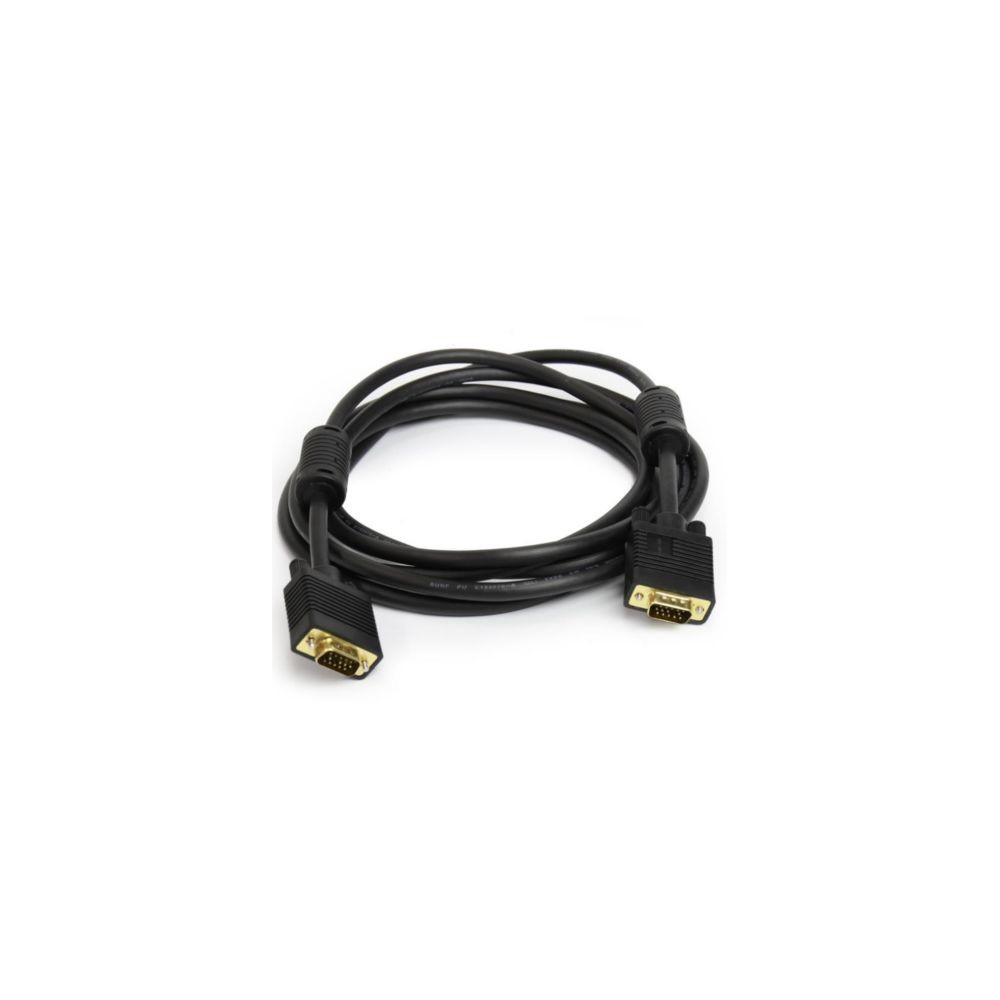

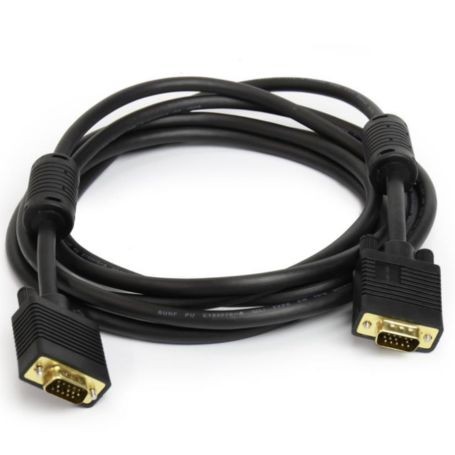

The Ergotron 97-748 is a 10-foot SVGA/VGA monitor cable designed to connect compatible monitors and video equipment with standard 15-pin VGA interfaces. Its male-to-male connector configuration supports direct connections between compatible VGA display outputs and monitor inputs.
With an approximate cable length of 3.05 metres, this cable provides additional reach for workstation installations where a shorter connection may not be sufficient. Ergotron identifies it as an accessory for WorkFit workstation configurations, where cable length can be important when accommodating changes between sitting and standing positions.
Connectivity and Signal Transmission
The cable uses 15-pin HD-15 connectors at both ends and is designed for analog VGA/SVGA video connections. Its construction incorporates RGB mini-coaxial conductors and paired video wiring. Shielding helps protect video signals against electromagnetic and radio-frequency interference.
Gold-plated connectors and contacts are specified for the cable. The manufacturer lists support for workstation and monitor applications, with distributor technical documentation specifying resolutions up to 2048 × 1536 pixels. Actual display resolution depends on the connected equipment and the capabilities of the complete video system.
Compatibility
The Ergotron 97-748 is suitable for equipment with compatible 15-pin VGA interfaces. Both connection ends use male HD-15 connectors, so the connected devices must provide corresponding female VGA ports or use an appropriate separately selected interface solution.
- VGA-compatible monitors with female 15-pin inputs.
- Compatible computers and video sources with female 15-pin VGA outputs.
- Ergotron WorkFit workstation installations requiring additional VGA cable reach.
- Compatible analog video equipment using standard HD-15 VGA connections.
This cable does not provide HDMI, DisplayPort, USB-C video, or digital video conversion. Equipment without a compatible VGA interface may require a suitable active converter, depending on the source and display.
Key Features
- 10-foot cable length: Provides approximately 3.05 metres of reach between compatible video devices.
- Male-to-male VGA connectivity: Features 15-pin HD-15 connectors at both ends.
- Shielded construction: Incorporates shielding to help reduce electromagnetic and radio-frequency interference.
- Gold-plated connectors: Uses gold-plated connector surfaces and contacts.
- Molded cable construction: Features molded connectors for a finished cable assembly.
Applications
- Connecting a VGA-equipped computer to a compatible monitor.
- Extending the reach of analog video connections in workstation installations.
- Connecting compatible display equipment in offices and technical workspaces.
- Supporting VGA monitor connectivity in Ergotron WorkFit workstation configurations.
DC Supplies Product Note
Before ordering, verify the connector gender and video interfaces on both devices. The 97-748 has male connectors at both ends, so it will not connect directly to equipment that also has a male VGA connector without an appropriate additional adapter. For height-adjustable WorkFit installations, allow sufficient cable slack throughout the workstation's full movement range to avoid tension on the connectors.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-748 |
|---|
| Product Type | SVGA/VGA monitor cable |
|---|
| Manufacturer | Ergotron, Inc. |
|---|
| Cable Length | 10 ft (approximately 3.05 m) |
|---|
| Cable Type | SVGA/VGA analog video cable |
|---|
| First Connector | 15-pin HD-15 VGA male |
|---|
| Second Connector | 15-pin HD-15 VGA male |
|---|
| Connector Configuration | Male to male |
|---|
| Connector Plating | Gold-plated |
|---|
| Contact Plating | Gold-plated |
|---|
| Conductor Material | Copper |
|---|
| Cable Construction | RGB mini-coaxial and paired video wiring |
|---|
| Shielding | Yes |
|---|
| Interference Protection | EMI/RFI shielding |
|---|
| Connector Construction | Molded |
|---|
| Supported Resolution | Up to 2048 × 1536 pixels, as specified by distributor documentation |
|---|
| Color | Black |
|---|
| Primary Applications | Monitors, video devices, and compatible WorkFit workstations |
|---|
Frequently Asked Questions
1. What is the Ergotron 97-748 used for?
It connects compatible VGA-equipped video sources and monitors. Its 10-foot length also makes it useful for workstation configurations that require additional cable reach.
2. What connectors does this cable have?
It has a 15-pin HD-15 male VGA connector at each end. Both connected devices must have compatible female VGA ports for a direct connection.
3. Is this cable compatible with HDMI or DisplayPort?
No. The 97-748 is a VGA/SVGA analog video cable. Connecting it to HDMI, DisplayPort, or USB-C video interfaces requires an appropriate converter or adapter arrangement where supported.
4. Can this cable be used with an Ergotron WorkFit workstation?
Yes. Ergotron identifies the cable for use with WorkFit workstation configurations that may require additional cable length when moving between sitting and standing positions. Verify that the workstation's video equipment uses compatible VGA interfaces.
5. Does the cable support high-resolution VGA displays?
Distributor documentation specifies support for resolutions up to 2048 × 1536 pixels. The actual resolution achieved depends on the connected computer, graphics output, monitor, and overall signal path.
6. Does the cable convert analog VGA to digital video?
No. It provides a VGA connection between compatible devices and does not perform analog-to-digital video conversion.
