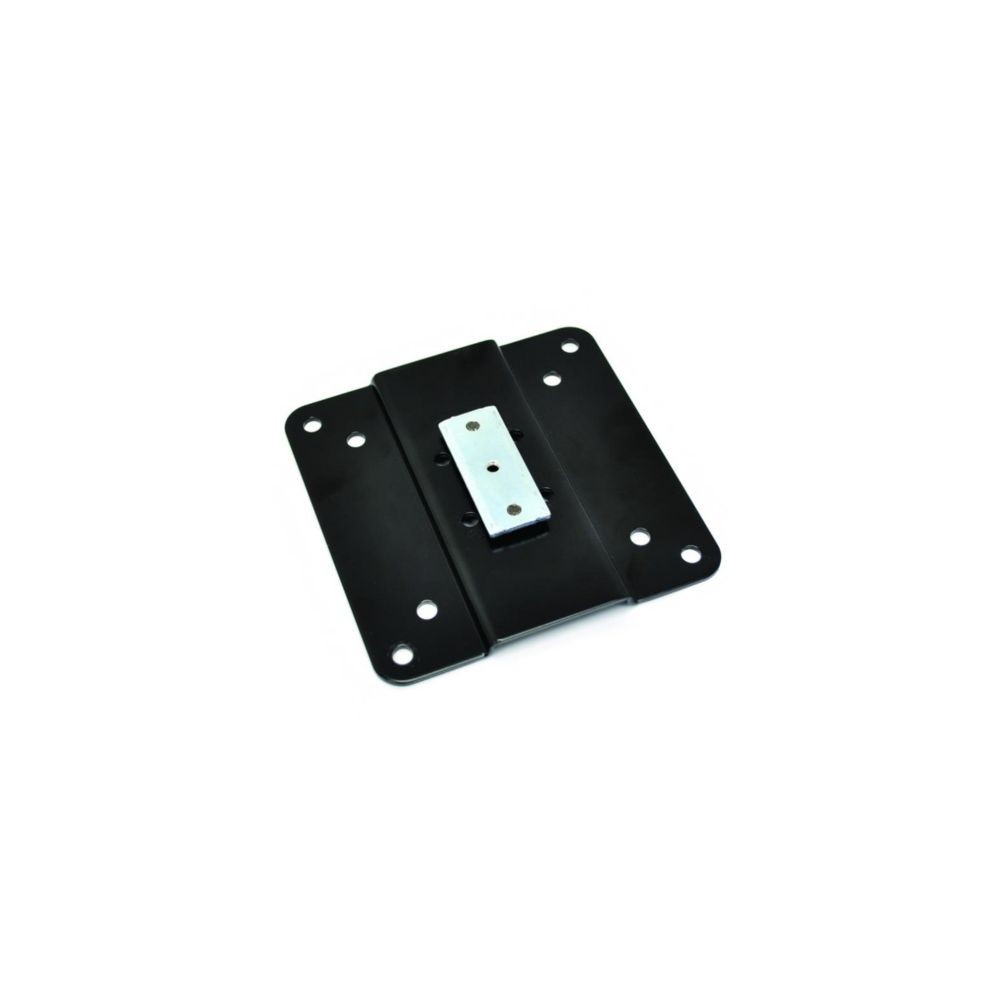

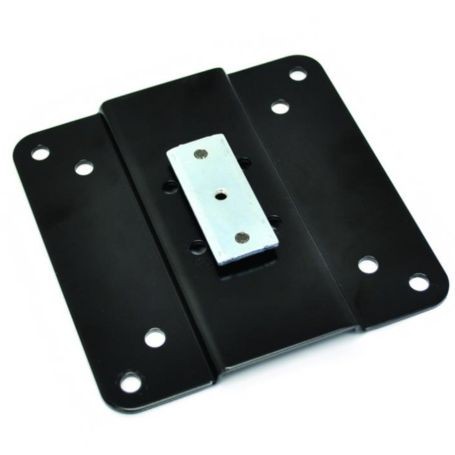

The Ergotron 97-512-009 StyleView Rear VESA Mount Kit is designed to attach a compatible LCD display to the rear of an Ergotron StyleView medical cart. It provides a sturdy mounting point for patient-monitoring displays and other compatible screens, helping healthcare teams configure their workspace around specific clinical workflows.
Featuring an all-metal construction and a black finish, this mounting kit attaches to the rear T-slot channel of compatible StyleView SV40, SV41 and SV42 carts. Its adjustable mounting position allows the display to be installed at a suitable height along the rear channel.
Key Features
- Rear display mounting: Adds a display mounting point to compatible StyleView medical carts, helping keep the primary workstation area organized.
- Adjustable mounting position: Can be positioned at different heights along the cart's rear T-slot channel to suit workflow requirements.
- VESA compatibility: Supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
- Durable metal construction: Designed for dependable use in professional healthcare environments.
- Broad cart applications: Suitable for compatible StyleView SV40, SV41 and SV42 EMR carts, subject to cart-specific load limits.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-512-009 |
|---|
| Product Type | Rear VESA display mounting kit |
|---|
| Product Series | StyleView |
|---|
| Color | Black |
|---|
| Material | Metal |
|---|
| Compatible Cart Series | StyleView SV40, SV41 and SV42 EMR carts |
|---|
| Supported Display Size | Up to 22 inches, subject to display dimensions and weight |
|---|
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting Location | Rear T-slot channel of compatible cart |
|---|
| Mounting Position | Positionable along the rear channel |
|---|
| Load Capacity | 15 lb (6.8 kg) on SV40 and SV41 non-powered carts; 20 lb (9.1 kg) on SV42 powered carts |
|---|
| Included Components | VESA plate, T-slot mounting bracket and mounting hardware |
|---|
| Warranty | 5 years |
|---|
Compatibility and Installation
This mounting kit is designed for compatible Ergotron StyleView SV40, SV41 and SV42 EMR carts. Before ordering, confirm the exact cart model, rear-channel compatibility and display mounting pattern.
The supported load depends on the cart: the maximum is 15 lb (6.8 kg) for SV40 and SV41 non-powered carts and 20 lb (9.1 kg) for SV42 powered carts. The display must remain within the applicable cart's weight limit and have a compatible 75 × 75 mm or 100 × 100 mm VESA mounting pattern.
DC Supplies Product Note
The Ergotron 97-512-009 is a rear display mounting accessory, not a complete medical cart or monitor. Verify your cart series and the display's weight before purchase, particularly when configuring patient-monitoring equipment.
Frequently Asked Questions
1. What is the Ergotron 97-512-009 used for?
It attaches a compatible display to the rear of an Ergotron StyleView medical cart, providing an additional mounting position for clinical monitoring workflows.
2. Which StyleView carts are compatible?
The kit is designed for compatible StyleView SV40, SV41 and SV42 EMR carts. Confirm compatibility with your exact cart model before ordering.
3. Which VESA patterns does it support?
It supports standard 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
4. What is the maximum supported display weight?
The maximum load is 15 lb (6.8 kg) on SV40 and SV41 non-powered carts and 20 lb (9.1 kg) on SV42 powered carts.
5. Can the mounting height be changed?
Yes. The mount can be positioned at different points along the compatible cart's rear T-slot channel to accommodate the intended workflow.
6. Is the display included?
No. The kit includes the VESA plate, T-slot mounting bracket and mounting hardware. The compatible cart and display are sold separately.
