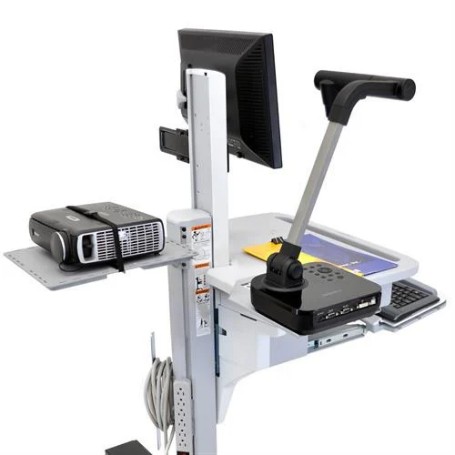

Ergotron 97-540-053 – Large Utility Shelf, Gray
Overview
The Ergotron 97-540-053 Large Utility Shelf provides a secure, adjustable mounting surface for projectors, small printers and other peripherals. The shelf can be installed on compatible Ergotron carts or mounted to a wall using the appropriate Ergotron wall-mount hardware.
Technical Information
The shelf provides an 11 × 13-inch usable surface and supports up to 8 lb when mounted on compatible cart products. When installed on a wall using the specified wall-mount configuration, the maximum load is 25 lb. The shelf includes an adjustable strap and security hardware for securing supported equipment.
Compatibility
The 97-540-053 can be used with selected Ergotron carts and wall-mount configurations. For SV40/SV41/SV42 StyleView carts, Ergotron specifies the separately ordered T-Slot Bracket 60-575-003. Wall installation can use Wall Plate 97-101-003 or Track Mount Bracket 97-091 with a compatible Wall Track.
Key Features
- 11 × 13-inch utility shelf surface for equipment and peripherals.
- Supports up to 8 lb on compatible cart installations.
- Supports up to 25 lb when installed in the specified wall-mount configuration.
- Includes adjustable strap and security hardware for supported equipment.
- Gray finish with a 5-year warranty.
Applications

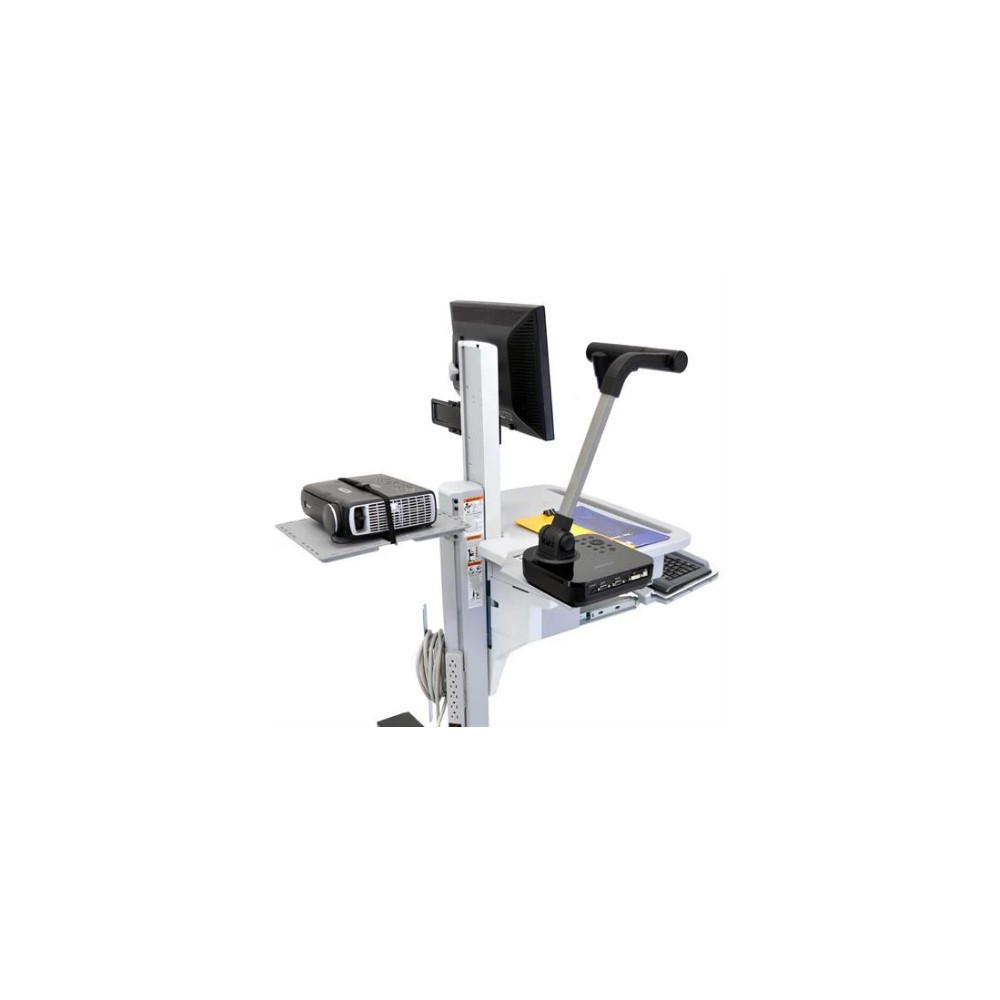

The Large Utility Shelf is suitable for mounting projectors, small printers, scanners and other peripherals on compatible Ergotron mobile workstations or wall-mounted configurations. It is particularly useful where additional equipment storage or an adjustable accessory surface is required.
DC Supplies Product Note
This listing is specifically for Ergotron MPN 97-540-053. The shelf is an accessory rather than a complete cart or wall-mount system. Required mounting hardware depends on the installation configuration and may need to be ordered separately. For SV40/SV41/SV42 StyleView cart installation, the 60-575-003 T-Slot Bracket is specified separately.
Specifications
| Brand | Ergotron |
|---|
| MPN | 97-540-053 |
|---|
| Product Type | Large Utility Shelf |
|---|
| Color | Gray |
|---|
| Shelf Surface | 11 × 13 inches (28 × 33 cm) |
|---|
| Maximum Load on Cart | 8 lb (3.6 kg) |
|---|
| Maximum Load on Wall | 25 lb (11.3 kg) |
|---|
| Mounting | Compatible Ergotron carts or wall-mount configurations |
|---|
| Cart T-Slot Bracket | 60-575-003, ordered separately for specified StyleView carts |
|---|
| Wall Plate | 97-101-003, sold separately |
|---|
| Track Mount Bracket | 97-091, sold separately |
|---|
| Included | Shelf, mounting brackets, adjustable strap, security lanyard, security screws, security-screw tool, thumbscrews and wall-mount option hardware |
|---|
| Shipping Dimensions | 16.7 × 13.2 × 3.5 inches |
|---|
| Shipping Weight | 4 lb |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 97-540-053?
It is a Large Utility Shelf designed for mounting projectors, printers and other small peripherals on compatible Ergotron carts or walls.
What is the shelf size?
The shelf surface measures 11 × 13 inches (28 × 33 cm).
What is the load capacity?
The maximum load is 8 lb on compatible cart installations and 25 lb when used in the specified wall-mount configuration.
Can it be installed on StyleView carts?
Yes. For specified SV40/SV41/SV42 StyleView cart installations, Ergotron specifies the 60-575-003 T-Slot Bracket as a separately ordered mounting component.
Can the shelf be wall mounted?
Yes. Ergotron specifies wall installation using Wall Plate 97-101-003 or Track Mount Bracket 97-091 with a compatible Wall Track.
Does the shelf include security hardware?
Yes. The listed contents include an adjustable strap, security lanyard, security screws and a security-screw tool.
Verification
Verification status: VERIFIED — exact MPN 97-540-053. The exact product identity, gray finish, shelf dimensions, cart and wall load capacities, mounting options, included components, shipping specifications and warranty were cross-checked against current Ergotron accessory information and exact-MPN distributor documentation.
