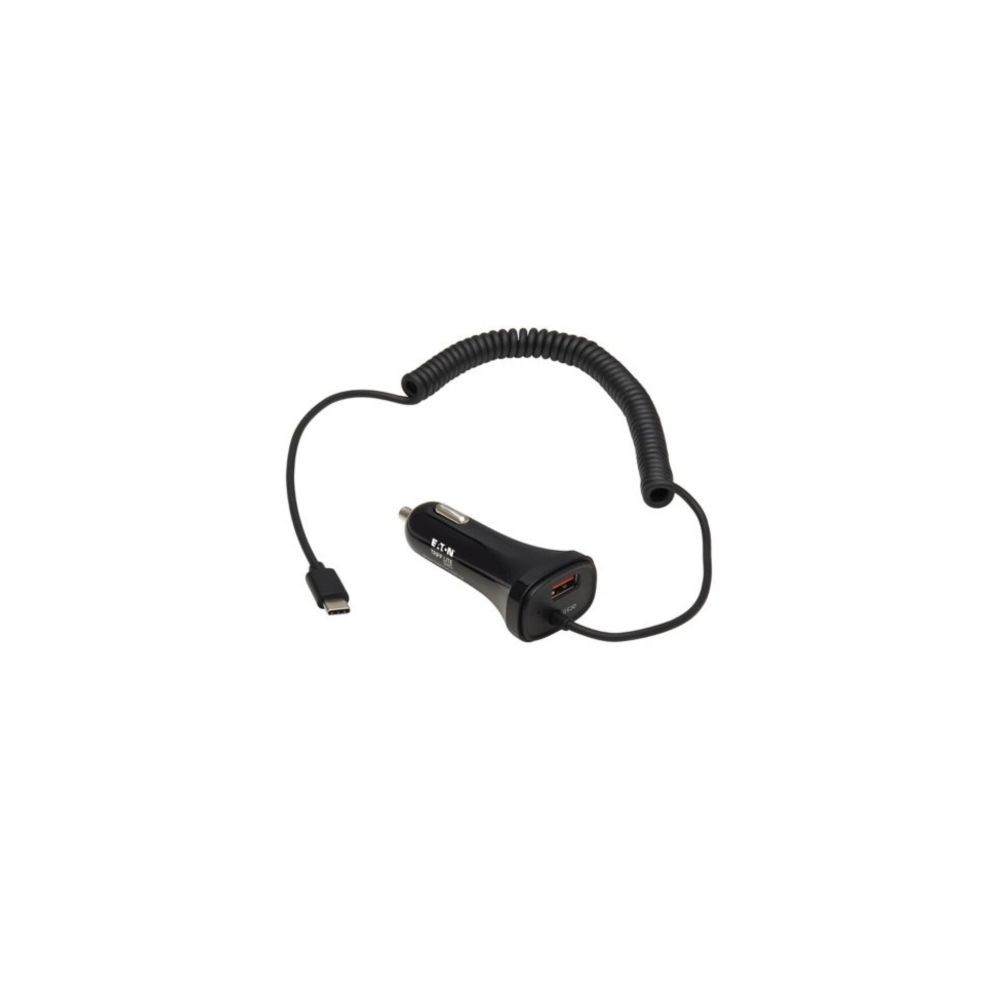

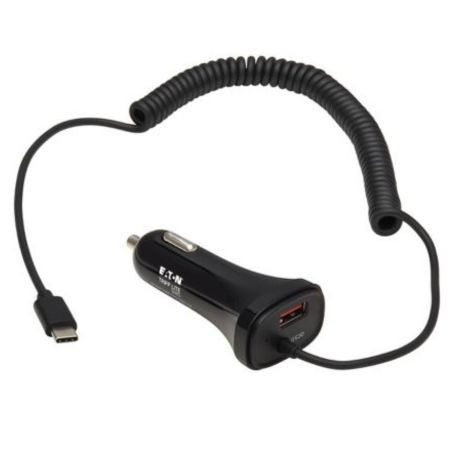

Eaton U280-C02-30W-C6 Tripp Lite 30W Dual Port USB Car Charger 6ft Coiled USB C Cable
The Eaton U280-C02-30W-C6 Tripp Lite dual-port USB car charger provides up to 30W of charging power from a vehicle's 12V to 24V DC power outlet. It combines an 18W USB-C Quick Charge 3.0 connection with a 12W USB-A charging port and includes a built-in 6 ft (1.83 m) coiled USB-C cable.
Dual-Port Charging
The U280-C02-30W-C6 provides two charging connections for simultaneously charging compatible devices. The USB-C connection supports up to 18W with Qualcomm Quick Charge 3.0, while the USB-A port provides up to 12W at 5V/2.4A.
The USB-C output supports 3.6–6V at 3A, 6–9V at 2A, and 9–12V at 1.5A. The USB-A port provides 5V at up to 2.4A.
Built-In Coiled USB-C Cable
A 6 ft (1.83 m) USB-C cable is built into the charger and uses a coiled design. The cable can extend when needed while taking up less space than a conventional straight cable when stored in the vehicle.
12V to 24V Vehicle Compatibility
The charger connects to a standard vehicle auxiliary power outlet and supports 12V to 24V DC input. This makes it suitable for use in cars, trucks, SUVs, and other vehicles equipped with a compatible DC power outlet.
Charging Protection and Status Indicator
The U280-C02-30W-C6 includes over-current protection and charging protection for connected devices. A blue LED indicates that the charger is receiving power.
Key Features
- 30W total charging output from two USB charging connections
- 18W USB-C output with Qualcomm Quick Charge 3.0
- 12W USB-A output at up to 5V/2.4A
- Built-in 6 ft (1.83 m) coiled USB-C cable
- 12V to 24V DC vehicle input with over-current protection
DC Supplies Product Note
The built-in 6 ft coiled USB-C cable is the main installation advantage of the U280-C02-30W-C6: it provides reach to a USB-C device from the vehicle power outlet while the coiled construction helps keep unused cable length more compact inside the vehicle.
Applications
- Charging smartphones while traveling
- Charging tablets and e-readers in a vehicle
- Powering compatible notebooks and USB devices
- Charging power banks from a vehicle outlet
- Simultaneously charging two compatible USB devices
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U280-C02-30W-C6 |
| Product Type | Dual-Port USB Car Charger |
| Input Connection | Vehicle auxiliary power outlet / cigarette lighter |
| Input Voltage | 12V to 24V DC |
| Total Charging Power | 30W |
| Number of Charging Ports | 2 |
| USB-C Output | 18W, Qualcomm Quick Charge 3.0 |
| USB-C Output Profiles | 3.6–6V/3A, 6–9V/2A, 9–12V/1.5A |
| USB-A Output | 5V/2.4A, 12W |
| USB-C Cable | Built-in, coiled |
| Built-In Cable Length | 6 ft (1.83 m) |
| USB-C Cable Connector | USB-C Male |
| USB-A Port | USB-A Female |
| LED Indicator | Blue power indicator |
| Protection | Over-current protection |
| Driver Required | No |
| Color | Black |
| Material | Polycarbonate, ABS |
| Operating Temperature | 32°F to 77°F (0°C to 25°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 30% to 90% RH, non-condensing |
| Storage Humidity | 10% to 90% RH, non-condensing |
| Product Dimensions | 2.795 in H × 1.480 in W × 1.007 in D |
| Product Weight | 0.132 lb |
| Warranty | 2-year limited |
| Compliance | RoHS, CE, REACH, WEEE, FCC |
| UPC | 037332256508 |
Compatible Devices
The U280-C02-30W-C6 is designed for compatible smartphones, tablets, e-readers, notebooks, power banks, and other devices that charge through USB-A or USB-C. The manufacturer documentation identifies compatibility with Apple, Android, Windows, and Amazon devices with supported USB charging connections.
Package Contents
- U280-C02-30W-C6 Dual-Port USB Car Charger
- Built-in 6 ft (1.83 m) coiled USB-C cable
Frequently Asked Questions
How much power does the U280-C02-30W-C6 provide?
The charger provides up to 30W of total charging power, with up to 18W through USB-C and 12W through USB-A.
Does the USB-C connection support Quick Charge?
Yes. The USB-C charging connection supports Qualcomm Quick Charge 3.0 and provides up to 18W.
What voltage does the vehicle input support?
The U280-C02-30W-C6 accepts 12V to 24V DC input from a compatible vehicle auxiliary power outlet.
How long is the built-in USB-C cable?
The built-in coiled USB-C cable is 6 ft (1.83 m) long.
Can two devices be charged at the same time?
Yes. The charger has two charging connections: one USB-C connection and one USB-A port.
Does the charger include over-current protection?
Yes. The U280-C02-30W-C6 includes over-current protection.
